High Conductivity MoCu Molybdenum Copper Alloy ASTM B387

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum Copper Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000kgs/M

Detail Information

Material: Molybdenum Copper Alloy Standard: ASTM B387
Min THK: 0.05mm Surface: Mirror Bright
Melting Point: 2623 °C Boiling Point: 4639 °C
Size: Customized Technique: Hot Rolling, Cold Rolling
High Light:

MoCu Molybdenum Copper Alloy


High Conductivity Molybdenum Copper Alloy


ASTM B387 Molybdenum Copper Alloy

Product Description

High Conductivity MoCu Molybdenum Copper Alloy Sheet Bar Rod Material

Molybdenum Copper is alloy of molybdenum and copper. It is a great alternative to tungsten copper for weight sensitive applications. The combination of high purity raw material and high temperature hydrogen sintering using no additives yields the highest thermal conductivity available for this composite material system.

Molybdenum Copper composite material are produced by copper infiltration of sintered molybdenum. They are available with different copper contents (15-50%).

Molybdenum Copper Alloy Sheet Bar Grade

Material Wt% Wt% g/cm3 Thermal conductivity at 25 Coefficient of thermal
Mo85Cu15 Mo Cu Density at 20℃ 160 - 180 expansion at 20℃
Mo80Cu20 85± 1 Balance 10 170 - 190 6.8
Mo70Cu30 80 ± 1 Balance 9.9 180 - 200 7.7
Mo60Cu40 70 ± 1 Balance 9.8 210 - 250 9.1
Mo50Cu50 60 ± 1 Balance 9.66 230 - 270 10.3

Molybdenum alloy rod has ranged a lot for different adding elements. Lanthanum molybdenum alloy is with lanthanum as adding element, rhenium molybdenum alloy is with rhenium, copper molybdenum alloy is with copper and these ones are called two elemental molybdenum alloy. If adding more elements, then composite molybdenum ally is manufactured out. And three elemental ones are mostly popular, such as TZM (titanium zirconium molybdenum) alloy with titanium zirconium and MHC (molybdenum hafnium carbon) with hafnium and carbon.

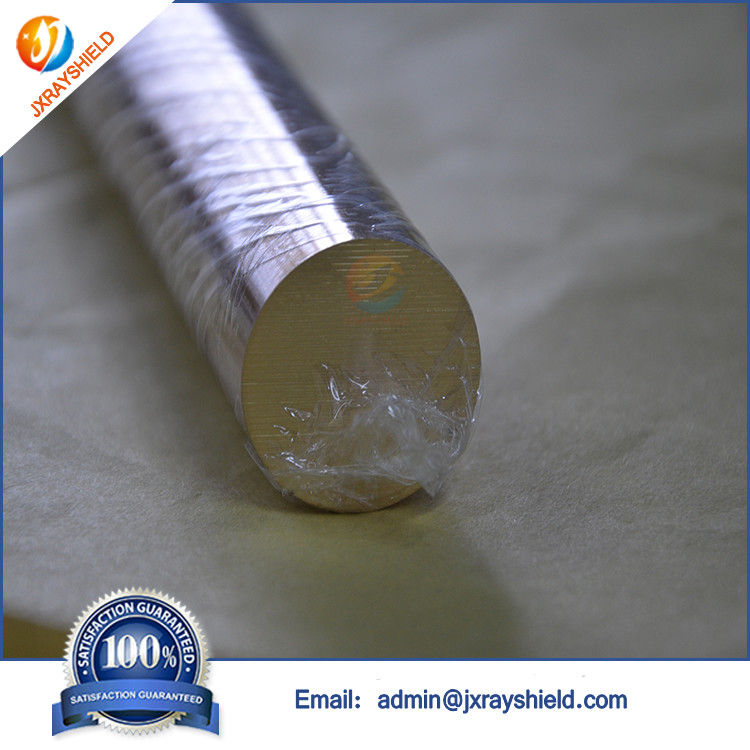

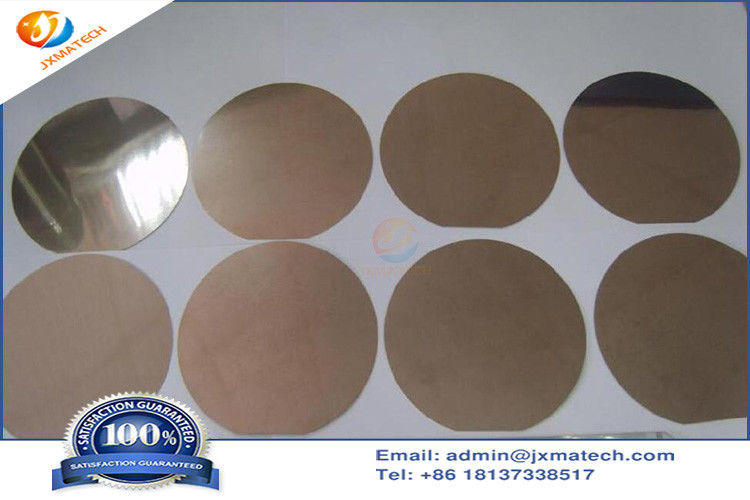

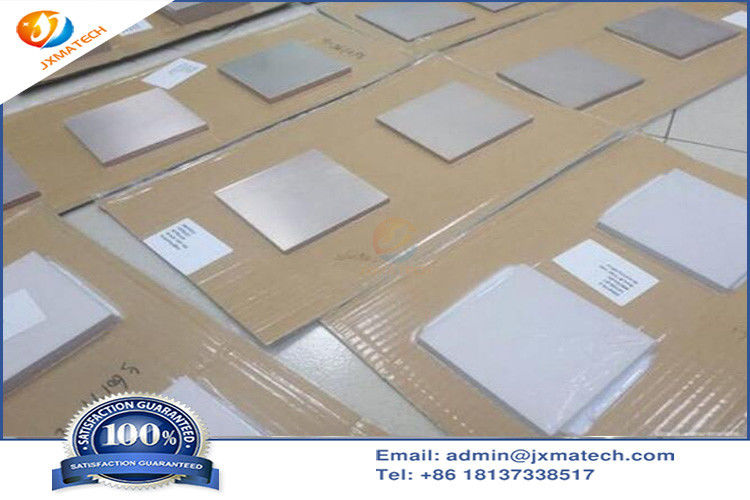

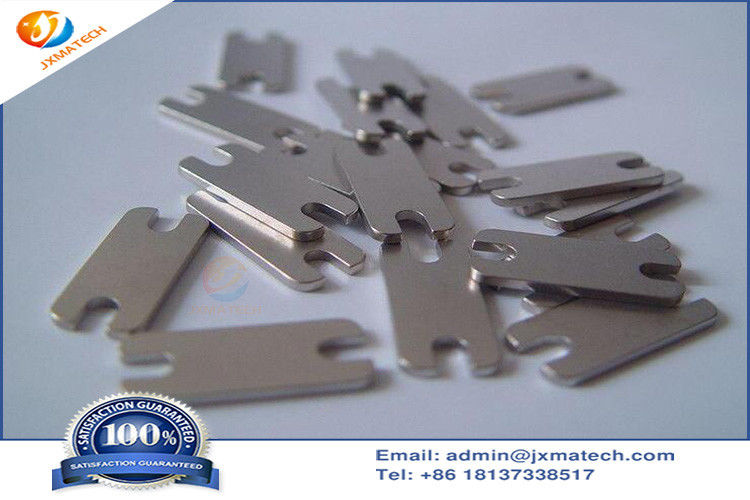

Molybdenum Copper Alloy Sheet Picture:

High Conductivity MoCu Molybdenum Copper Alloy ASTM B387 0High Conductivity MoCu Molybdenum Copper Alloy ASTM B387 1

High Conductivity MoCu Molybdenum Copper Alloy ASTM B387 2
