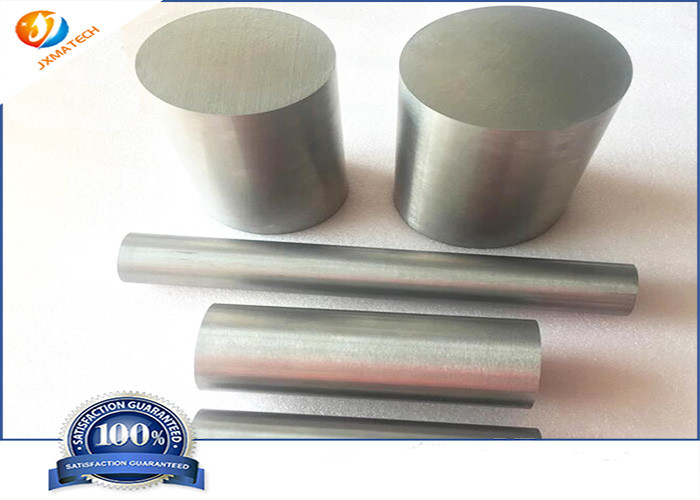

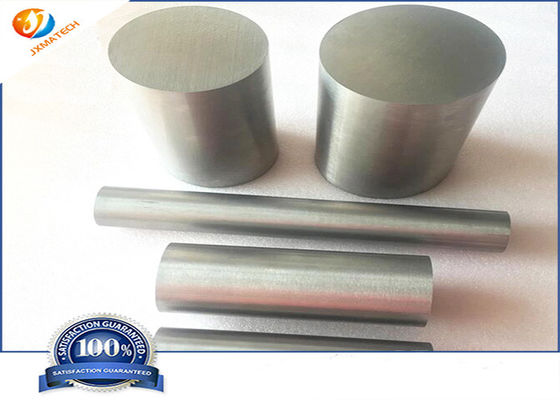

Furnace ​Polished Tzm Molybdenum Copper Alloy 1400C

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: TZM Molybdenum Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: TZM Alloy Surface: Ground Finished Bright
Type: Powder Metallurgy Density: 10.22g/cm3
Working Temperature: 700~1400C Technique: Swage Forge, Hammer Forge
Composition: Mo-±0.08% Zr, ±0.5% Ti, ±0.03% C Size: Customized
High Light:

Polished Molybdenum Copper Alloy

,

Furnace Molybdenum Copper Alloy

,

1400C Molybdenum Copper Alloy

Product Description

​Polished Tzm Molybdenum Copper Alloy Bar Rod in High Furnace

Molybdenum Copper Alloy Bar alloy is a kind of pseudo-alloy that is composed of molybdenum and copper. It consists of both the characteristics of molybdenum and copper, having high thermal conductivity, low adjusted thermal expansion coefficient, Beijing non-magnetic, low content of gas, good vacuum resistance, good machinability and special high-temperature performance, etc.

XINXIANG FANMETAL TECH is a leading global supplier of commercially pure Molybdenum, TZM, Molybdenum Copper Alloys, Copper Cladded Molybdenum, and Molybdenum Rhenium Alloys in foil, strip, sheet, plate, wire, rod, bar, blanks, pipe, tubing, fittings, as well as semi-finished and finished parts, custom sizes, custom sizes, and custom grades.

Typical Molybdenum Copper Alloy Bar Properties

Material Mo Content Copper Content Density Thermal Conductivity at 25 CTE at 25
Wt% Wt% g/cm3 W/M∙K (10-6/K)
Mo85Cu15 85±1 Balance 10 160-180 6.8
Mo80Cu20 80±1 Balance 9.9 170-190 7.7
Mo70Cu30 70±1 Balance 9.8 180-200 9.1
Mo60Cu40 60±1 Balance 9.66 210-250 10.3
Mo50Cu50 50±0.2 Balance 9.54 230-270 11.5
Mo40Cu60 40±0.2 Balance 9.42 280-290 11.8

Molybdenum Copper Alloy Synonyms

Mo-Cu, moly copper, CuMo, copper-clad molybdenum, 60/40 65/35 70/30 75/25 80/20 85/15, Mo85Cu, Mo80Cu, Mo70Cu, Mo60Cu, Mo50Cu, Molybdenum-Copper Composite Material, CuMoCu, CMC, Cu/Mo70Cu/Cu, CPC, 35495-47-5

Our MoCu is perfect for the manufacture of passive cooling elements (heat sinks and heat spreaders) in electronic components. Due to their low weight, molybdenum-copper composites are particularly suitable for this type of application where every gram counts: In the automotive industry they are used as carrier plates for the IGBT modules that act as inverters in electric drives.

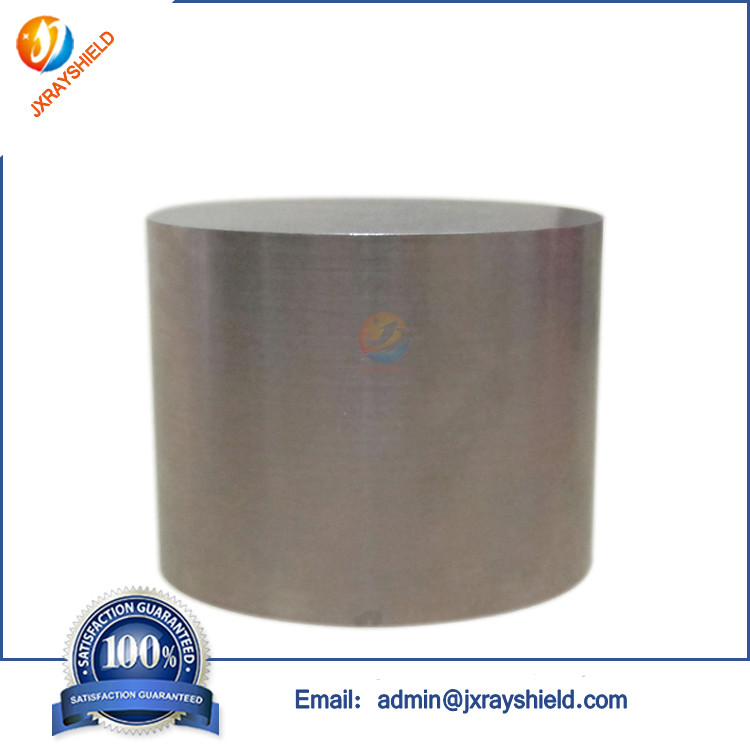

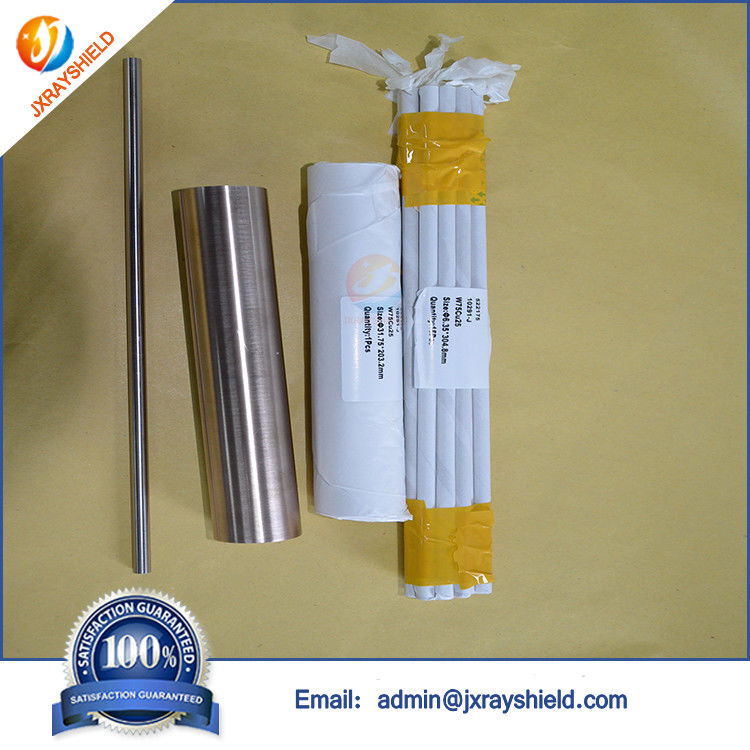

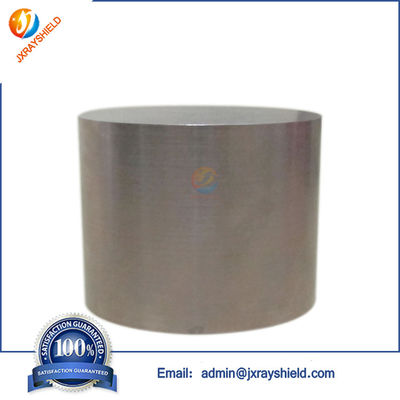

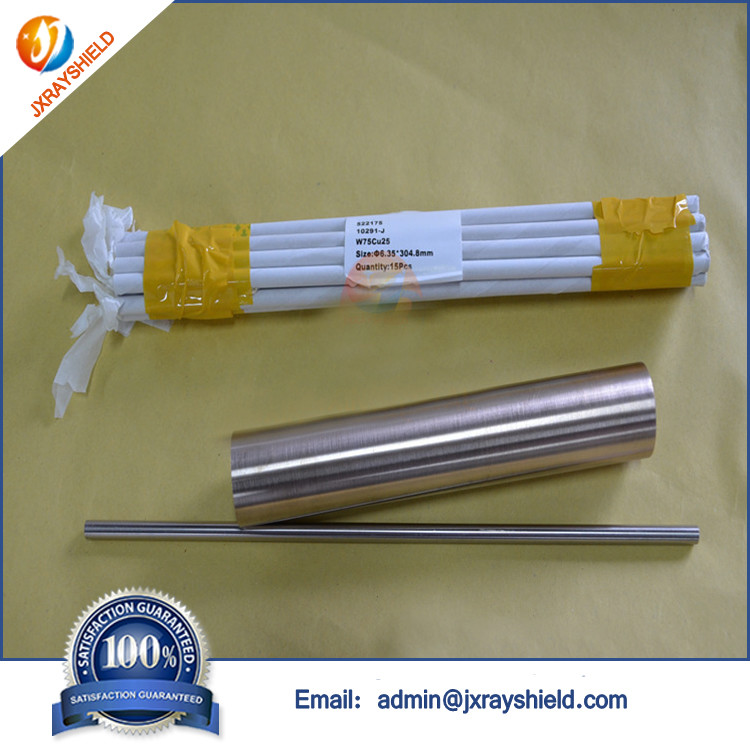

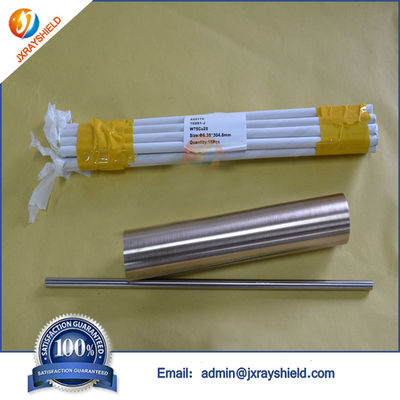

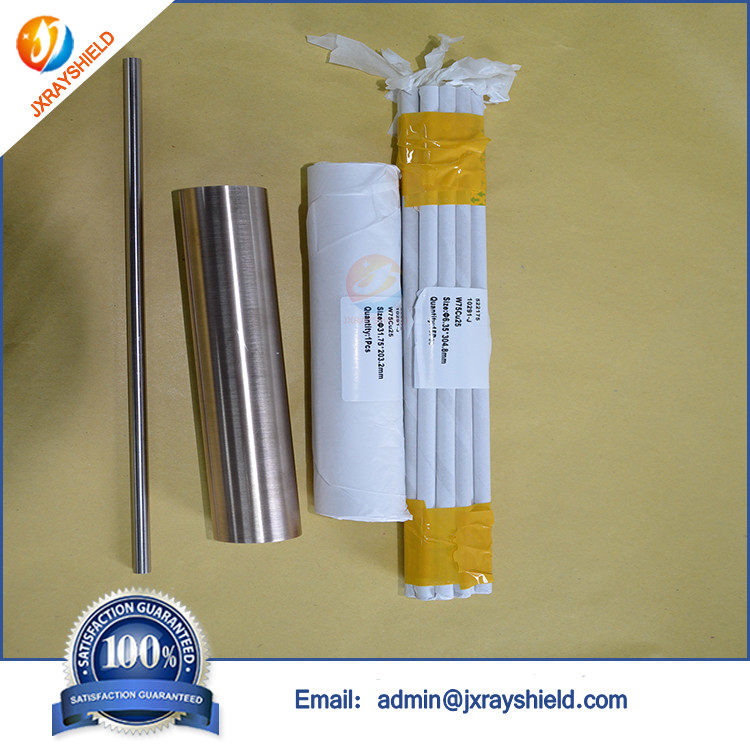

Molybdenum Copper Alloy Bar Picture;

Furnace ​Polished Tzm Molybdenum Copper Alloy 1400C 0







Furnace ​Polished Tzm Molybdenum Copper Alloy 1400C 1
