Molybdenum High Temperature Alloy TZM Rod
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Molybdenum Copper Alloy |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1kg |
| Packaging Details: | Plywood Case |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000kgs/M |
|
Detail Information |
|||
| Standard: | ASTM B387 | Material: | Molybdenum Copper Alloy |
|---|---|---|---|
| Min THK: | 0.05mm | Surface: | Mirror Bright |
| Melting Point: | 2623 °C | Boiling Point: | 4639 °C |
| Size: | Customized | Technique: | Hot Rolling, Cold Rolling |
| Highlight: | Mo80Cu20 Molybdenum Copper Alloy,ASTM B387 Molybdenum Sheet,Mirror Bright Molybdenum Copper Alloy |
||
Product Description
Mo80Cu20 Molybdenum Copper Alloy Plate Molybdenum Alloy Sheet
Molybdenum copper has properties of high electrical and thermal conductivity. Molybdenum is a better element for electricity conductivity except for gold, silver and copper in the metals. Therefore, molybdenum-copper alloy composed by molybdenum and copper have very high electrical and thermal conductivity.
| Material | Mo Content | Copper Content | Density | Thermal Conductivity at 25℃ | CTE at 25℃ |
| Wt% | Wt% | g/cm3 | W/M∙K | (10-6/K) | |
| Mo85Cu15 | 85±1 | Balance | 10 | 160-180 | 6.8 |
| Mo80Cu20 | 80±1 | Balance | 9.9 | 170-190 | 7.7 |
| Mo70Cu30 | 70±1 | Balance | 9.8 | 180-200 | 9.1 |
| Mo60Cu40 | 60±1 | Balance | 9.66 | 210-250 | 10.3 |
| Mo50Cu50 | 50±0.2 | Balance | 9.54 | 230-270 | 11.5 |
| Mo40Cu60 | 40±0.2 | Balance | 9.42 | 280-290 | 11. |
Molybdenum Copper Alloy Plate Feature:
· Thermal expansion can be design;
· High thermal conductivity;
· Precision flatness capability;
· Low thermal expansion;
· Good electrical conductivity;
· High wear resistance;
· More lighter than W-Cu.

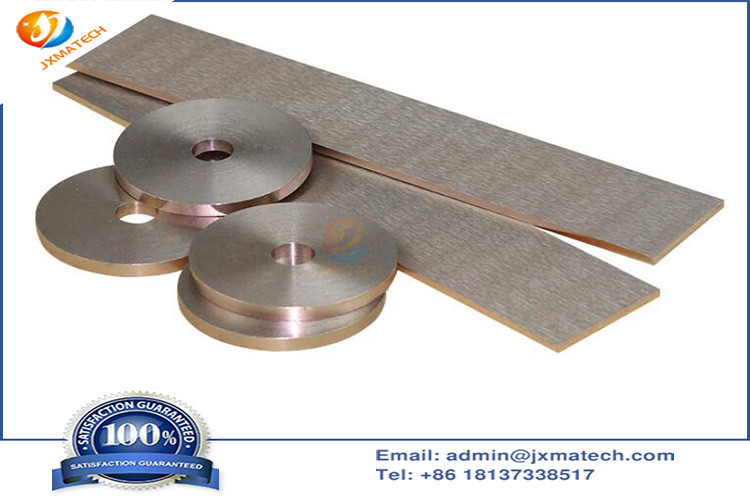

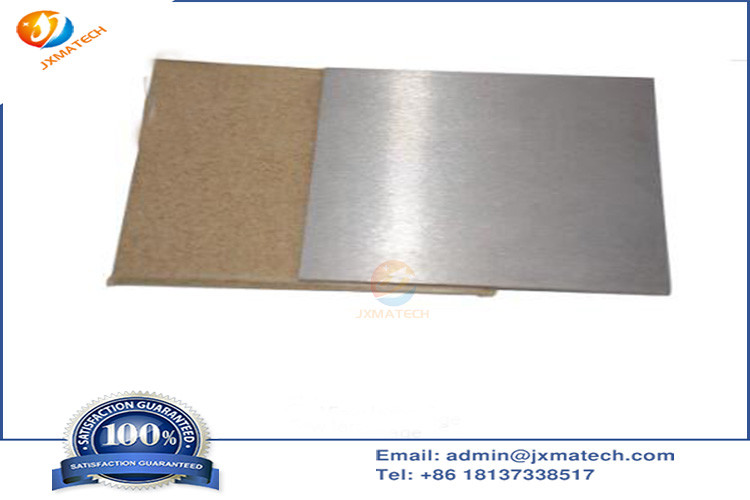

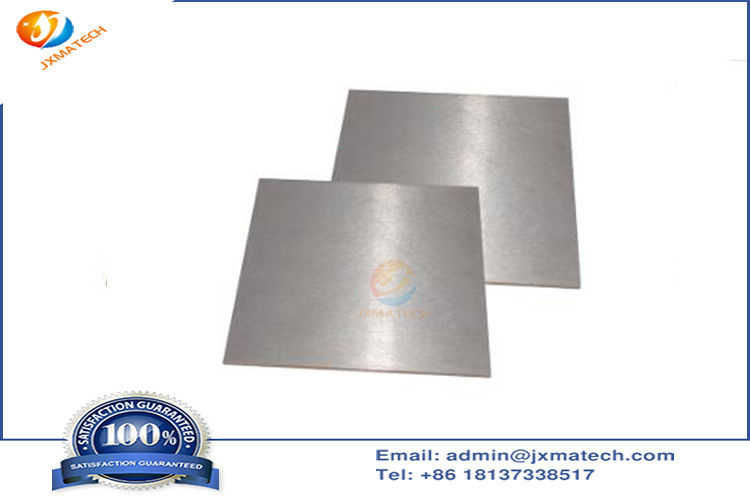

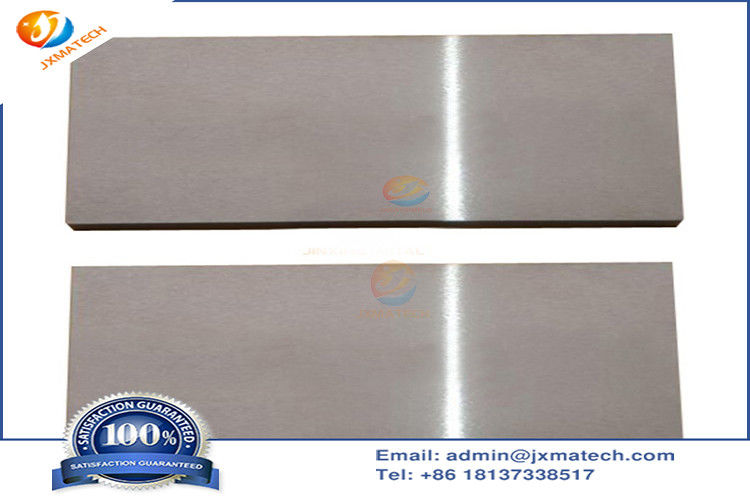

Molybdenum Copper Alloy Plate Picture:
