Auto Parts Spraying R03650 0.12mm Molybdenum Wire

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum and Molybdenum Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Mo 99.95%/ MoLa /MoW Standard: ASTM B387
Surface: Alkali Cleaning, Polishing , Electropolishing Process: Drawn
Type: Molybdenum 361 Grade: R03600, R03620,R03630, R03650
Advantage: High Tensile Strength , Smooth Surface Testing: Chemical Content And Physical Properties
High Light:

0.12mm Molybdenum Wire


Auto Parts Spraying Molybdenum Wire


R03650 Molybdenum Wire

Product Description

Molybdenum Wire for High Speed EDM wire Cut - EDM Moly Wire 0.12mm/0.14mm /0.16mm/0.18mm /0.20mm / 0.22mm

Material: high purity Molybdenum Wire

Technical: the most advanced cold drawn technology

1. High tensile strength: 12% higher than National standard GB4182-84

2. High melting point, Low density and Thermal coefficients

3. Good thermal conductivity properties and Resistance of high-temperature

4. Under the same working condition, there will be less wire broken for Moly-wire

5. Percentage of Extension: less than 3%, which make our moly-wire not easy to tie a knot and not easy to elongate to improve the processing stability and the precision.

6. Longer using life: Good finishing, high precision. Can be used 1.2 times (improve 120%) longer than normal moly-wire.

7. Vacuum packing: can be kept for more than one year without go bad.

China Molybdenum Wire Advantages:
1. The molybdenum product has super strength of extension.
Molybdenum electrode wire features excellent oxidation and corrosion resistance in a variety of harsh thermal and corrosive environments.
2. Molybdenum wire is stable and high precision in cutting. It is not easy to fracture and has long operating life.
3. The molybdenum product is in vacuum package and accurate in measuring. It can preserve for a long time.
4. Its melting point is 2620°C (4748 °F), featuring good electrical and thermal conductivity.

Molybdenum wire application:

1.Molybdenum wire(spray moly wire)is mainly used for auto parts spraying,such as piston ring,synchronizer rings,shift elements,etc.Molybdenum spray wire is also used in repairs of machine parts,such as bearing,bearing shells,shafts,etc.

2.Molybdenum wire for wire-cutting application is characteristic in high tensile strength,good electric discharge,smooth finish,high cutting speed,long life and etc.

3.It is also used as electric light source parts,high temperature and heating elements,etc.

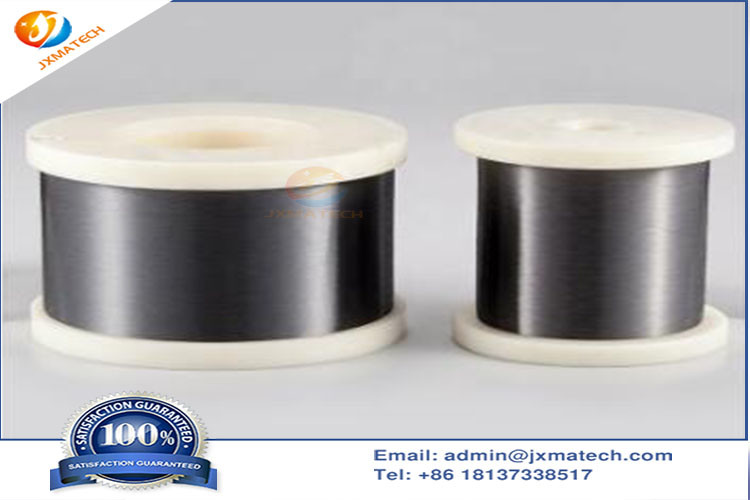

Auto Parts Spraying R03650 0.12mm Molybdenum Wire 0

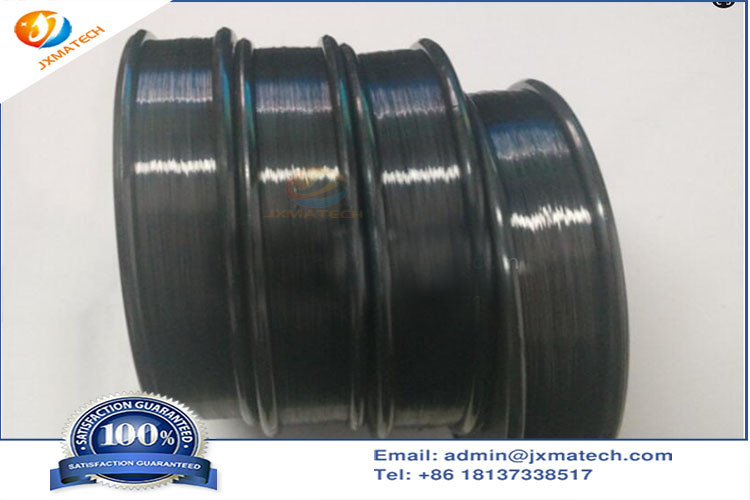

Auto Parts Spraying R03650 0.12mm Molybdenum Wire 1

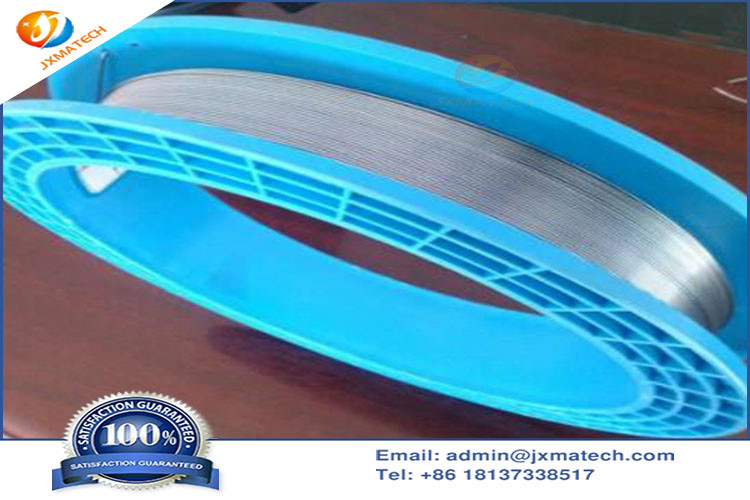

Auto Parts Spraying R03650 0.12mm Molybdenum Wire 2
