UNS R60702 Zirconium Seamless Pipe Zr702 For Heat Exchanger Application

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zr702 Zirconium Seamless Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 5 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product: Zirconium Seamless Pipes Type: Zr702
Density: 6.51 G/cc Purity: >99.2%
Tensile Strength: >210 MPa Elongation: >15%
UNS Number: R60702 Usage: Heat Exchanging
High Light:

R60702 Zirconium Seamless Pipe

,

Zr702 Zirconium Seamless Pipe

,

Heat Exchanger Zirconium Seamless Pipe

Product Description

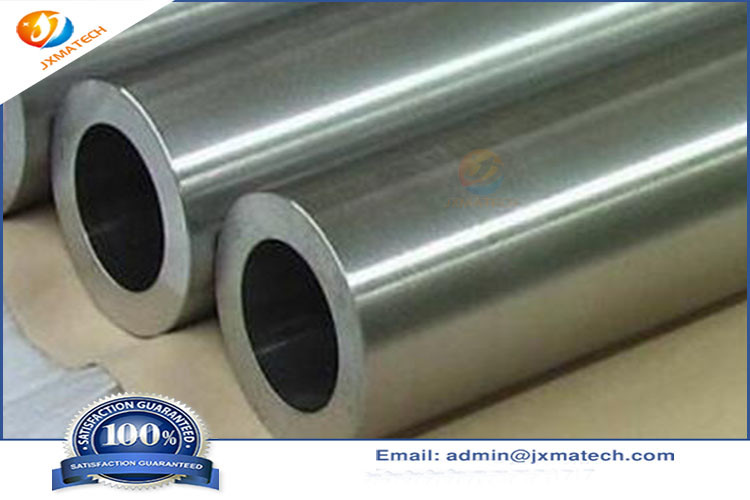

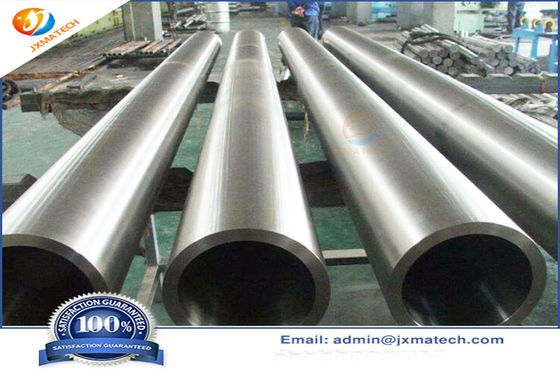

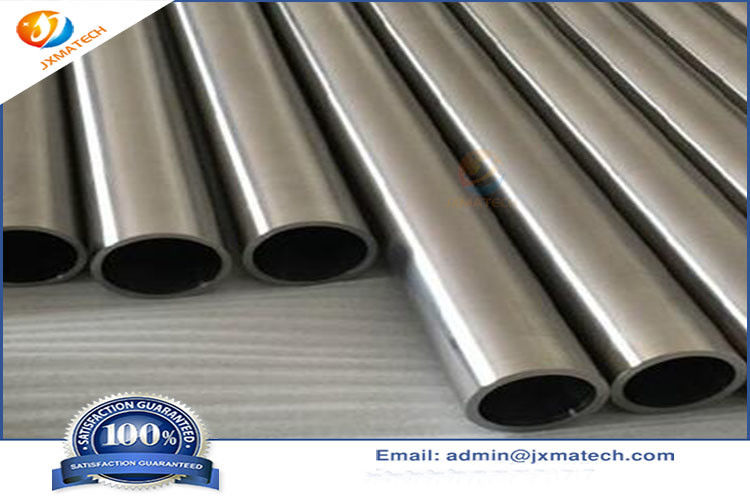

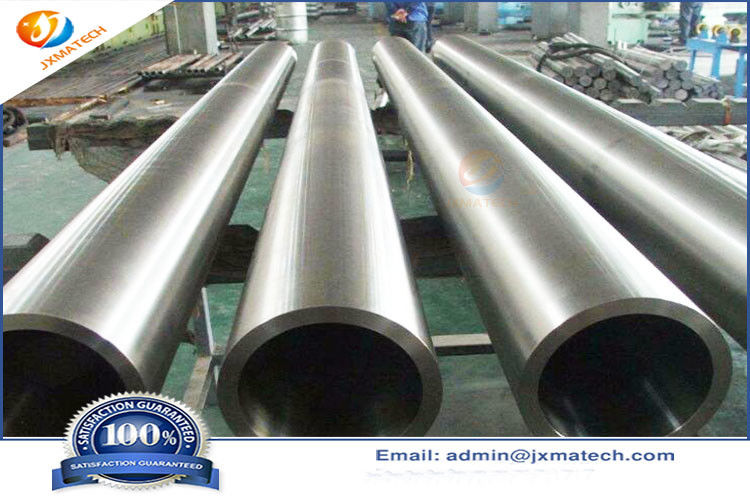

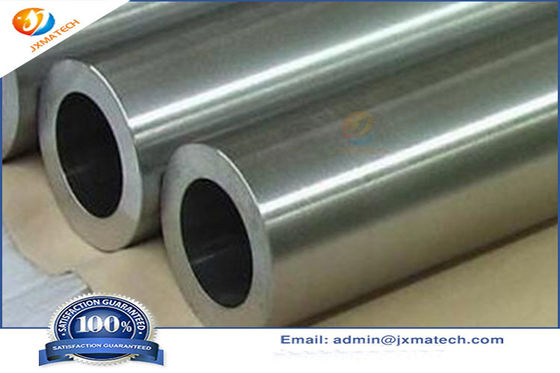

UNS R60702 Zirconium Seamless Pipe Zr702 for heat exchanger application

Zirconium Seamless Pipe is made of metal zirconium and other metals. Due to the excellent nuclear performance and corrosion resistance of zirconium, zirconium alloy tubes are often used in the internal structure of nuclear fuel assemblies and water-cooled reactors. Pure zirconium pipe is mainly used for manufacturing chemical equipment.

CHEMICAL COMPOSITION (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O
Zr702 <99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16



Zirconium Seamless Pipe ​PHYSICAL PROPERTIES

Density: 6.5 g/cm
Melting Point: 1852°C
Thermal Conductivity: 22 W/(m °C)
Elastic bend modulus: 99.3 GPa
Thermal Expansions: 5.4x10 /°C


APPLICATIONS

Zirconium Seamless Pipe has corrosion resistance in most organic and mineral acids. The typical application of seamless zirconium tube is as heat exchanger, cooler, condenser and piping system in the production of urea, acetic acid, formic acid, nitric acid and methyl methacrylate.

UNS R60702 Zirconium Seamless Pipe Zr702 For Heat Exchanger Application 0UNS R60702 Zirconium Seamless Pipe Zr702 For Heat Exchanger Application 1

PACKAGING

Our zirconium pipe is clearly labeled to ensure effective identification and quality control. Special care should be taken during storage or transportation to avoid any damage.
