ASME SB658 Zirconium Zr705 Piping R60705 Water Cooled And Biological Reactors

Product Details:
Place of Origin: CHINA
Brand Name: JINXING Zr705
Certification: ISO 9001
Model Number: Zirconium Zr705 Piping
Payment & Shipping Terms:
Minimum Order Quantity: 50 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Zirconium Zr705 Piping Purity: >=99.2%
Standard: ASME SB658 Density: 6.51 G/cc
Tensile Strength: >225 MPa Elongation: >17%
UNS: R60705 Applications: Ater-Cooled And Biological Reactors
High Light:

ASME SB658 Zr705 Piping

,

Biological Reactors Zr705 Piping

,

Water Cooled Reactors Zr705 Piping

Product Description

ASME SB658 Zirconium Zr705 Piping R60705 For Water-Cooled And Biological Reactors

Zirconium Zr705 piping is a rare metal with amazing corrosion resistance, high melting point, super hardness and strength. Zirconium Zr705 pipe is widely used in aerospace, military, nuclear reaction, atomic energy and other fields. General industrial zirconium is widely used in chemical, electronic and other industries, mainly for the corrosion resistance and conductivity of zirconium pipes.



CHEMICAL COMPOSITIONS  (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0

Zirconium Zr705 Piping PHYSICAL PROPERTIES

Density: 6.51g/cm3
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3 GPa
Thermal Expansions: 5.4x10 /°C



PARAMETERS (STANDARD)

  • Seamless pipe OD(8-152) * t (0.5-15) * L (≤ 9000) mm

  • Welded pipe (outer diameter ≥ 10mm)

  • Executive Standards: ASTM B523 / B523M-18, ASME SB-523, ASTM B658 / B658M-11, ASME SB-658 / SB-658M

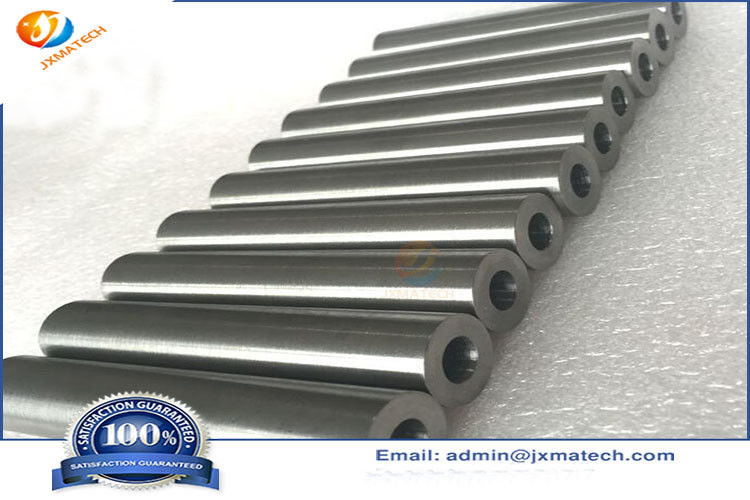

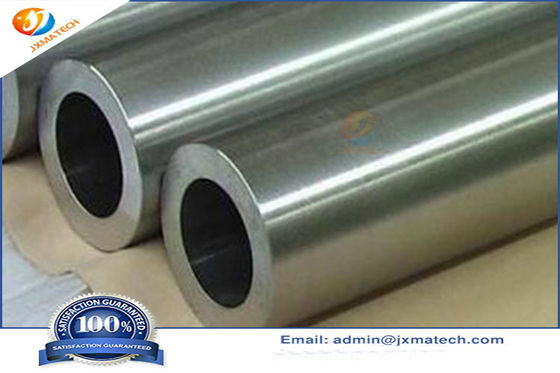

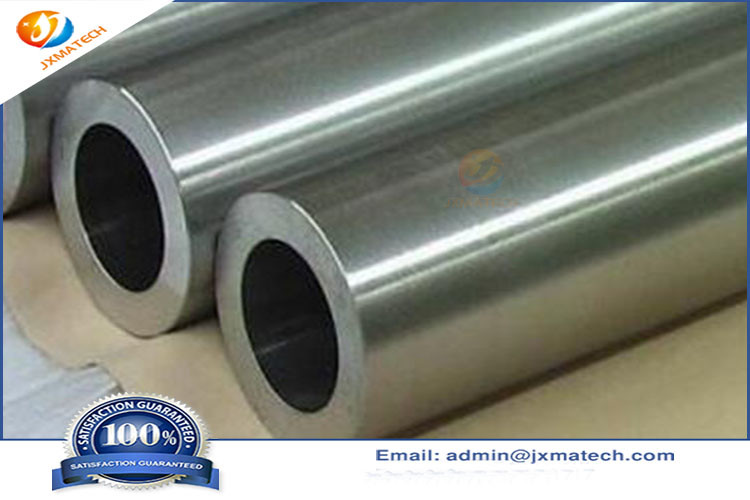

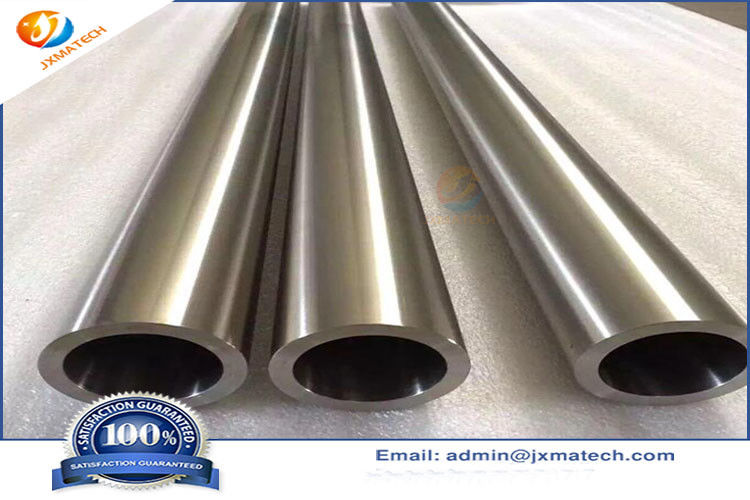

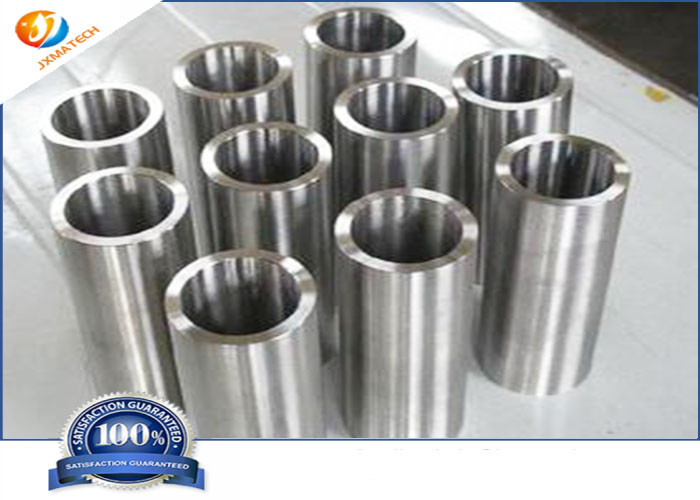

ASME SB658 Zirconium Zr705 Piping R60705 Water Cooled And Biological Reactors 0ASME SB658 Zirconium Zr705 Piping R60705 Water Cooled And Biological Reactors 1

The processing specification has a sensitive influence on the performance of the product. In particular, the cold processing and heat treatment process before the finished product should be controlled to meet the requirements of use.



The dimensional accuracy and surface quality of the pipe are required to be high. Therefore, the process equipment should have good precision, and the design and manufacture of the die should be advanced and reasonable.
