Zr702 Zirconium Alloy Tubes UNS R60702 In Industrial Pipeline Systems ASME SB523

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zr702 Zirconium Alloy Tubes
Payment & Shipping Terms:
Minimum Order Quantity: 50 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product: Zirconium Alloy Tubes Grade: Zr702
Density: 6.51 G/cc Purity: >99.2%
Tensile Strength: >225 MPa Elongation: >17%
UNS Number: R60702 Application: Corrosive Fluid Pipeline
High Light:

Zr702 Zirconium Alloy Tubes

,

Pipeline Systems Zirconium Alloy Tubes

,

ASME SB523 Zirconium Alloy Tubes

Product Description

Zr702 Zirconium Alloy Tubes UNS R60702 in industrial pipeline systems ASME SB523

Zirconium Alloy Tubes are completely resistant to alkali solution and molten alkali. The corrosion resistance of zirconium in sodium hydroxide medium is the same as that of nickel. Because zirconium has excellent corrosion resistance, it is much better than tantalum and precious metals in many cases. In addition, zirconium also has good mechanical properties and high temperature resistance.



CHEMICAL COMPOSITIONS  (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0



PHYSICAL PROPERTIES (PARAMETERS)

Density: 6.51g/cc
Melting point: 1852°C
Thermal conductivity: 22 W/(m °C)
Elastic bending modulus: 99.6 GPa
Thermal expansions: 5.4x10 /°C



SPECIFICATIONS (NONIMAL)

  • Executive standard: ASME SB523 /  ASTM B658-0
  • Outer diameter 6.0-114mm
  • Wall thickness 0.3-8.0 mm
  • Length ≤ 18000mm

APPLICATIONS



Zirconium is a kind of metal with strong corrosion resistance, which is suitable for chemical corrosion-resistant equipment. Its acid resistance is better than that of titanium and various steels, and close to that of tantalum. Zirconium is also quite stable in alkali solution.


It is widely used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline.



Zirconium Corrosion Resistance

Zirconium pipe is very often specified for highly-corrosive industrial applications and frequently used in processes in which chlorides are a component. These and other very corrosive chemicals are damaging to lesser materials. This corrosion can rapidly lead to repair and/or replacement of the equipment in short time frame, causing expensive and highly disruptive process stoppage.

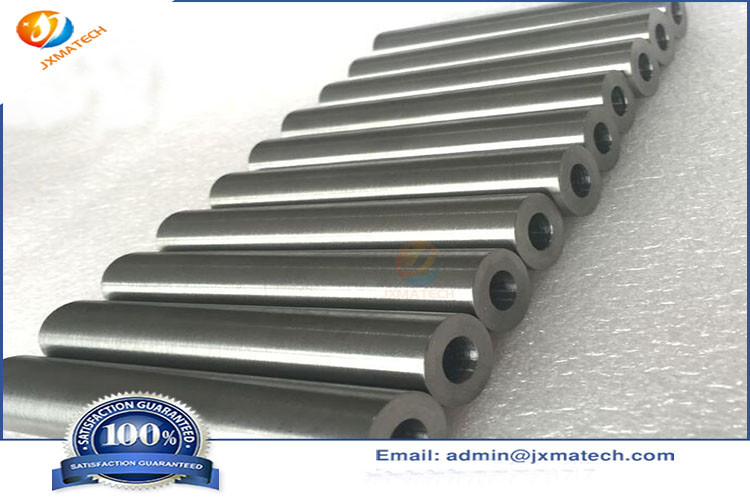

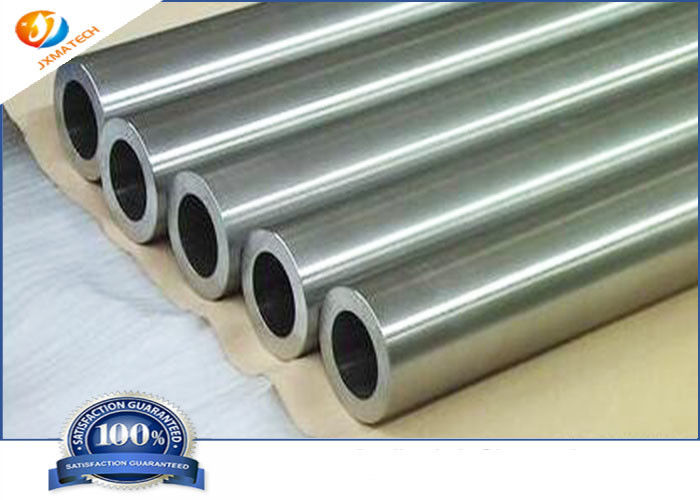

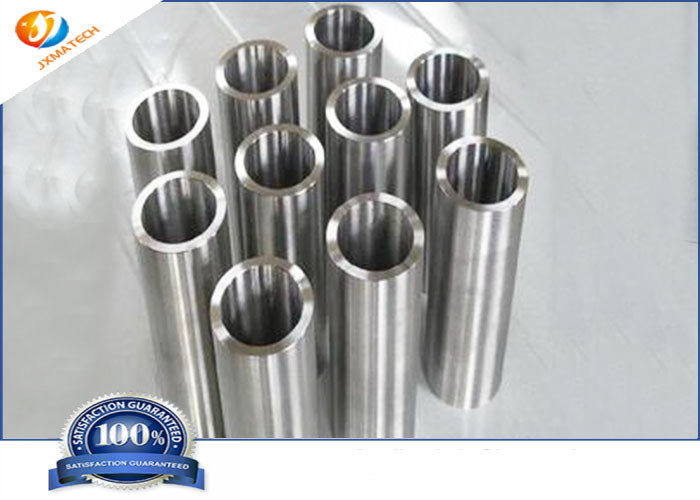

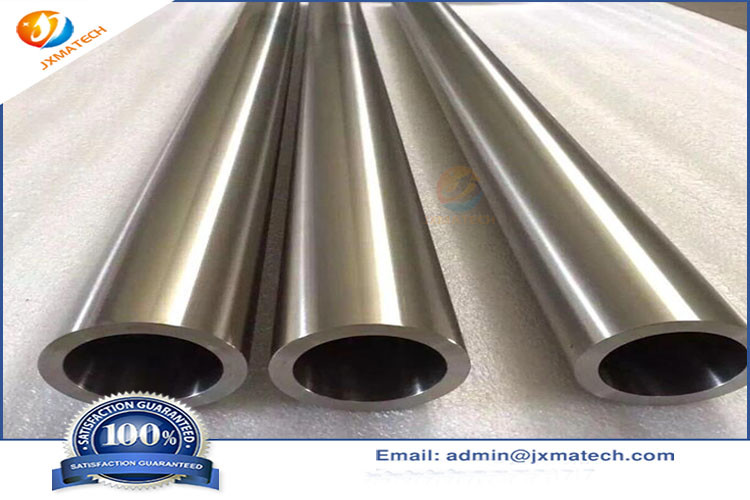

Zirconium Alloy Tubes Picture:

Zr702 Zirconium Alloy Tubes UNS R60702 In Industrial Pipeline Systems ASME SB523 0Zr702 Zirconium Alloy Tubes UNS R60702 In Industrial Pipeline Systems ASME SB523 1
