Injection Molding Industry Molybdenum Products Ion Implant ASTM B387

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum Ion Implanting Parts
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Molybdenum Ion Implanting Parts Grade: Mo1
Density: 10.2 G/cc Purity: >=99.95%
Tensile Strength: >320 MPa Elongation: <22%
Standard: ASTM B387-2010 Applications: Injection Molding
High Light:

Injection Molding Molybdenum Products


ASTM B387 Molybdenum Products


ASTM B387 Ion Implant

Product Description

Molybdenum Ion Implanting Parts for Injection Molding Industry ASTM B387

Molybdenum Ion Implanting Parts are a new generation of high-tech materials for surface treatment. It uses a series of physical and chemical changes caused by high-energy metal element ion beams to enter the solid material to improve certain surface properties of the solid material.




Material Type Chemical Composition (by wt.)
Pure Moly Mo1 >99.95%min. Mo
Ti-Zr-Mo Alloy TZM 0,5 % Ti / 0,08 % Zr / 0,01 - 0,04 % C
Mo-Hf-C MHC 1,2 % Hf / 0,05 - 0,12 % C
Moly Rhenium MoRe 5,0 % Re
Moly Tungsten MoW20 20,0 % W
Moly Tungsten MoW505 0,0 % W







Advantages of Molybdenum Ion Implanting Parts technology:

The results show that molybdenum ion implantation is more effective and widely used in the research and application of ion implantation surface modification of non semiconductor materials. Many nitrogen ion implantation can not be realized, and metal ion implantation can be well realized. However, for the traditional ion implanter based on the needs of semiconductor ion implantation, it is difficult to obtain a relatively strong metal ion beam, and the cost of ion implantation surface modification of non semiconductor materials is also relatively expensive.


APPLICATIONS Of Molybdenum Ion Implanting Parts


The superiority, practicability and broad market prospects of the surface treatment technology have been recognized by more and more departments and units, and have been widely used. According to years of research and development, metal ion implantation is particularly suitable for the surface treatment of the following types of tools, molds and parts:


  • Hot extrusion and injection mold can reduce energy consumption by about 20% and prolong service life by about 10 times;
  • Precision molds in semiconductor industry, stamping and stamping molds in can industry can significantly improve the working life of these valuable and precision molds;
  • The precision nozzle for extruding synthetic fiber and optical fiber can greatly improve its abrasion resistance and service life;

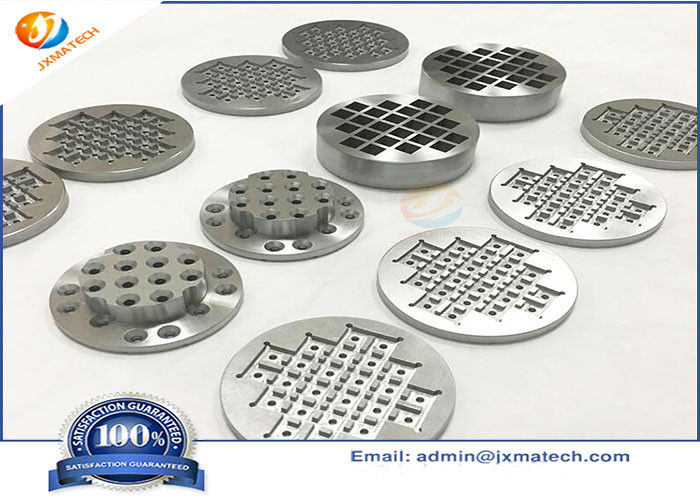

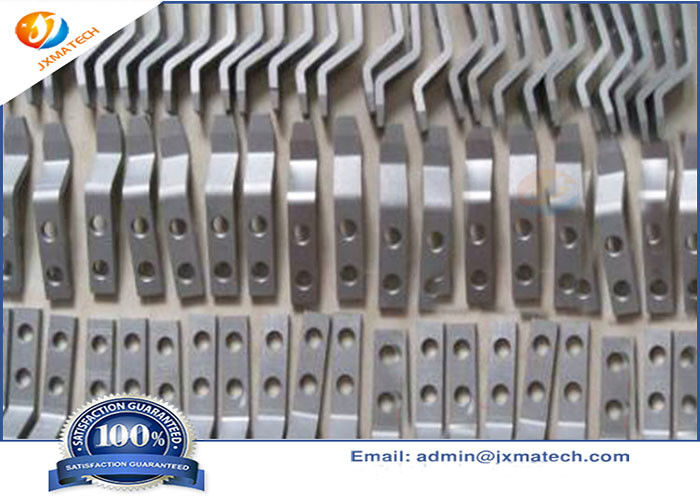

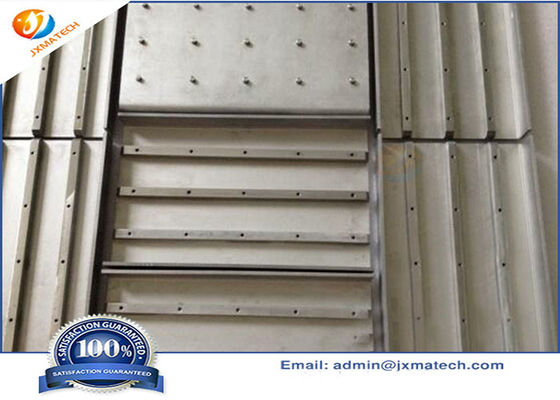

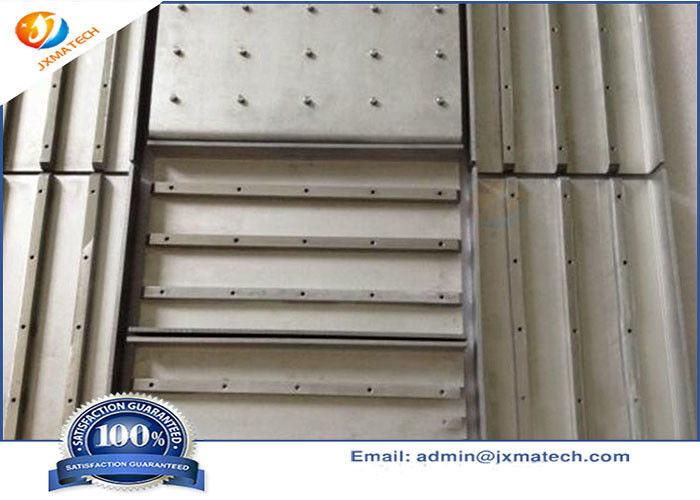

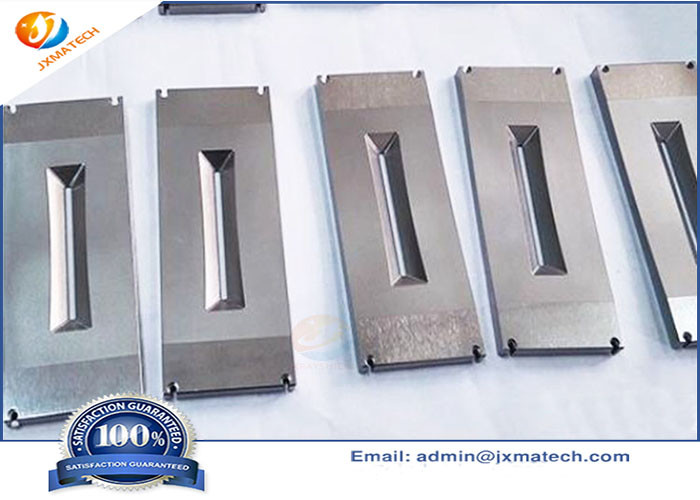

  • Molybdenum Ion Implanting Parts Picture:
  • Injection Molding Industry Molybdenum Products Ion Implant ASTM B387 0Injection Molding Industry Molybdenum Products Ion Implant ASTM B387 1
