99.95% Pure Moly Ion Implantation In Semiconductors Injection Mold Application

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Mo1 Moly Implanted Ion Parts
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Moly Implanted Ion Parts Grade: Mo1
Density: 10.2 G/cm3 Purity: >99.95%
Tensile Strength: >320 MPa Elongation: <21%
Standard: ASTM B387-2010 Application: Injection Mold
High Light:

Moly Ion Implantation In Semiconductors


99.95% Ion Implantation In Semiconductors


99.95% high energy ion implantation

Product Description

99.95% Pure Moly Implanted Ion Parts For Injection Mold Application

Moly Implanted Ion Parts are more effective and extensive in the research and application of surface modification of non-semiconductor material ion implantation. Many nitrogen ion implantation cannot be achieved, but metal ion implantation can be achieved very well. However, the traditional ion implanter is based on the requirement of semiconductor ion implantation, and it is difficult to obtain a relatively strong metal ion beam, and the cost of ion implantation surface modification for non-semiconductor materials is relatively expensive.




Material Grade Chemical Compositions (by wt.)
Pure Moly Mo1 >99.95%min. Mo
Ti-Zr-Mo Alloy TZM 0,5 % Ti / 0,08 % Zr / 0,01 - 0,04 % C
Mo-Hf-C MHC 1,2 % Hf / 0,05 - 0,12 % C
Moly Rhenium MoRe 5,0 % Re
Moly Tungsten MoW20 20,0 % W
Moly Tungsten MoW505 0,0 % W







Advantages of Moly Implanted Ion Parts Technology:

Ion implantation means that when an ion beam is emitted into a solid material in vacuum, the ion beam knocks the atoms or molecules of the solid material out of the surface of the solid material. This phenomenon is called sputtering;


When the ion beam hits the solid material, it bounces back from the surface of the solid material or passes through the solid material. These phenomena are called scattering;


Another phenomenon is that after the ion beam is shot into the solid material, it is slowly reduced by the resistance of the solid material, and finally stays in the solid material. This phenomenon is called ion implantation.


APPLICATIONS of Moly Implanted Ion Parts

The superiority, practicability and broad market prospect of this surface treatment technology have been appreciated by more and more departments and units and have been widely used. According to years of research and development, metal ion implantation is especially suitable for the surface treatment of the following types of tools, dies and parts:


  • Precision molds in semiconductor industry, stamping and stamping molds in can industry can significantly improve the working life of these valuable and precision molds;
  • Medical orthopedic repair parts (such as titanium alloy artificial joints) and surgical instruments have very good economic and social benefits.
  • Precision motion coupling components, such as stator and rotor of air extraction pump, cam and chuck of gyroscope, piston, bearing, gear, turbine vortex rod, etc., can greatly reduce the friction coefficient, improve wear resistance and corrosion resistance, and prolong the service life up to more than 100 times;

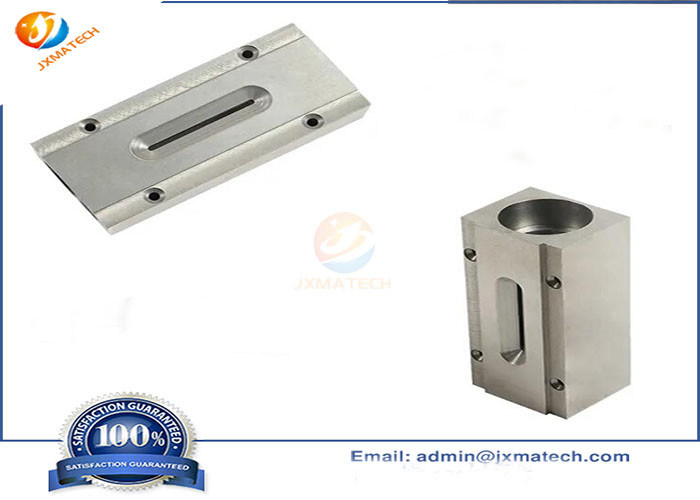

  • Moly Implanted Ion Parts Picture:

  • 99.95% Pure Moly Ion Implantation In Semiconductors Injection Mold Application 099.95% Pure Moly Ion Implantation In Semiconductors Injection Mold Application 1
