Polishing Burnishing Copper Tungsten Alloy Products Rod Cu25W75

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Tungsten Copper Alloy Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: Tungsten Copper Alloy Rod
High Light:

Cu25W75 Tungsten Alloy Products

,

Burnishing copper alloy rod

,

Cu25W75 copper alloy rod

Product Description

Tungsten Copper Alloy Rod With Cu25W75 With Good Price



Physical properties of Tungsten Copper Alloy Rod:

Tungsten copper alloy (w = 70, Cu = 30)

Conductivity% IACS ≥ 42

Density = 14g / cm3

Softening temperature: ℃≥ 700

Tensile strength ≥ 66mpa

Hardness ≥ 184hv

Tungsten Copper Alloy Rod can withstand nearly 2000 ℃ high temperature and high stress. It has the characteristics of high melting point, high hardness, burning resistance and good adhesion resistance. The surface finish of electric corrosion products is high, the precision is very high and the loss is low.

Production process of Tungsten Copper Alloy Rod With Cu25W75 :

Tungsten copper is an alloy of tungsten and copper. The tungsten copper alloy is made of fine tungsten and copper powder through first-class infiltration sintering process and the process of isostatic pressing forming high-temperature sintering tungsten skeleton dissolving copper.

Main uses of tungsten copper alloy:

Tungsten Copper Alloy Rod With Cu25W75 is widely used as contact and protective ring of high-voltage and ultra-hydraulic switch and circuit breaker, thick anvil material of electric heating pier, conductive nozzle of automatic submerged arc welding, nozzle of plasma cutting machine, welding head and roll welding wheel of electric welding machine and butt welding machine, as well as gas sealing electrode and electric spark electrode, spot welding and bump welding materials

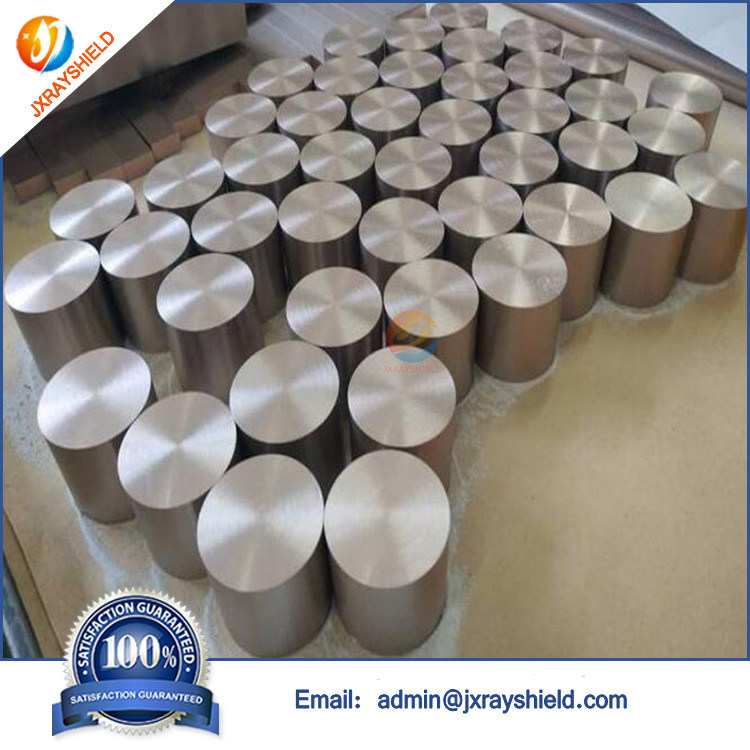

Tungsten Copper Alloy Rod With Cu25W75 Picture:

Polishing Burnishing Copper Tungsten Alloy Products Rod Cu25W75 0Polishing Burnishing Copper Tungsten Alloy Products Rod Cu25W75 1Polishing Burnishing Copper Tungsten Alloy Products Rod Cu25W75 2

1. Resistance welding electrode: tungsten copper alloy combines the advantages of tungsten and copper. It has the characteristics of high temperature resistance, arc ablation resistance, high strength, large ratio, good conductivity, good thermal conductivity, easy cutting and cooling, etc. Because tungsten copper alloy has the characteristics of high hardness, high melting point and anti adhesion of tungsten, it is often used as projection welding and butt welding electrode with certain wear resistance and high temperature resistance.

2. Electric spark electrode: when the mold made of tungsten steel and high temperature resistant superhard alloy needs electric corrosion, the loss of ordinary electrode is large and the speed is slow. The characteristics of tungsten copper alloy such as high electric corrosion rate, low loss rate, accurate electrode shape and excellent machining performance can greatly improve the accuracy of machined parts.

3. Electrode of high-voltage discharge tube: when the high-voltage vacuum discharge tube is working, the temperature of contact material will rise by thousands of degrees Celsius in a few tenths of a second. The high ablation resistance, high toughness, good conductivity and thermal conductivity of tungsten copper alloy provide necessary conditions for the stable operation of discharge tube.

4. Electronic packaging materials: tungsten copper alloy not only has the low expansion characteristics of tungsten, but also has the high thermal conductivity of copper.

The thermal expansion coefficient and conductivity of tungsten copper alloy can be changed by adjusting the composition of the material, which provides convenience for the use of the material.



Specifications of Tungsten Copper Alloy Rod With Cu25W75 :

Code No. Chemical Composition % Mechanical properties
CU Impurity W Density (g/cm3 ) Hardness HB RES( cm) Conductivity IACS/ % TRS/ Mpa
CuW(50) 50±2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45± 2.0 0.5 Balance 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Balance 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Balance 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Balance 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Balance 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Balance 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Balance 16.75 260 6.5 27 1160
