CuW Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: tungsten copper alloy electronic packaging materials and heat sink
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Shape: As Request
Specification:: ISO9001: 2000 Delivery Time: 25days
Packing: Standard Exporting Name: Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink
High Light:

CuW Tungsten Copper Alloy


Electronic Packaging Tungsten Copper Alloy


Heat Sink Tungsten Copper Alloy

Product Description

Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink

The Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink material is a composite material of tungsten and copper. It has both the low expansion characteristics of tungsten and the high thermal conductivity of copper. The thermal expansion coefficient and thermal conductivity of tungsten and copper can be adjusted with the composition of W-Cu. The material can also be processed into various shapes


Code No. Chemical Composition % Mechanical properties
CU Impurity W Density (g/cm3 ) Hardness HB RES( cm) Conductivity IACS/ % TRS/ Mpa
CuW(50) 50±2.0 0.5 Balance 11.85 115 3.2 54
CuW(55) 45± 2.0 0.5 Balance 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Balance 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Balance 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Balance 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Balance 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Balance 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Balance 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Balance 16.75 260 6.5 27 1160

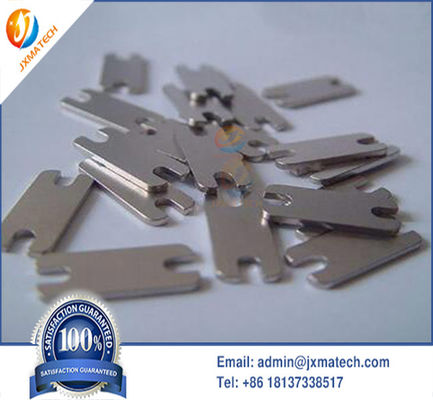

Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink Picture:
CuW Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink 0CuW Tungsten Copper Alloy Electronic Packaging Materials And Heat Sink 1


The difference between tungsten copper alloy and molybdenum copper alloy?
Also as alloy materials, tungsten-copper alloy and molybdenum-copper alloy are used in a wide range of applications, such as aerospace, aviation, navigation, military, defense, electronics, electric power, metallurgy, machinery, sports equipment and other industries. In the same application field, although they can be replaced with each other in some cases, there are many differences.

1. Different definitions
Tungsten copper alloy is an alloy material composed of tungsten atoms and copper atoms. The English name is copper tungsten or tungsten copper. The copper content is 10%-50%, and the tungsten content is 30%-95%.
Molybdenum-copper alloy is an alloy material composed of molybdenum atoms and copper atoms. It is called molybdenum-copper alloy in English. It can replace the application of tungsten-copper alloy in many cases. According to the different chemical composition, the grades of molybdenum copper alloy can be divided into MoCu10, MoCu15, MoCu20, MoCu25, MoCu40, and their total impurity content is less than 0.1%.

2. Different in nature
Tungsten copper alloy has both the characteristics of tungsten and copper, and has good electrical and thermal conductivity, corrosion resistance, wear resistance and processing performance. When the temperature is above 3000 ℃, the copper in the alloy will be liquefied and evaporated. Compared with tungsten copper, molybdenum copper has lower density and lighter weight, and is more suitable for use in some products with stricter requirements on weight indicators.
Molybdenum copper alloy has the characteristics of both molybdenum and copper, and has the characteristics of non-magnetic, strong high temperature resistance, high thermal conductivity, low adjustable thermal expansion coefficient, excellent vacuum performance and mechanical processability. In terms of heat resistance and wetting, molybdenum copper is worse than tungsten copper.

Three, the production process is different
The preparation methods of tungsten copper alloy include powder metallurgy method, injection molding method, copper oxide powder method, tungsten skeleton infiltration method and so on. Among them, the powder metallurgy process to prepare tungsten copper alloy is powder-making-batching mixing-pressing forming-sintering infiltration-cold working.
The preparation methods of molybdenum copper alloy include liquid phase sintering method and molybdenum skeleton infiltration method. The liquid phase sintering method refers to the liquid phase sintering of the molybdenum-copper mixed powder at a temperature of 1300-1500°C after being pressed into a shape.

Four, different uses
Tungsten copper alloy is mainly used in high temperature resistant materials, electrical machining electrodes, microelectronic materials, electrical alloys for high voltage switches, etc.
Molybdenum copper alloy is suitable for manufacturing military and civilian high-power microelectronic devices.
