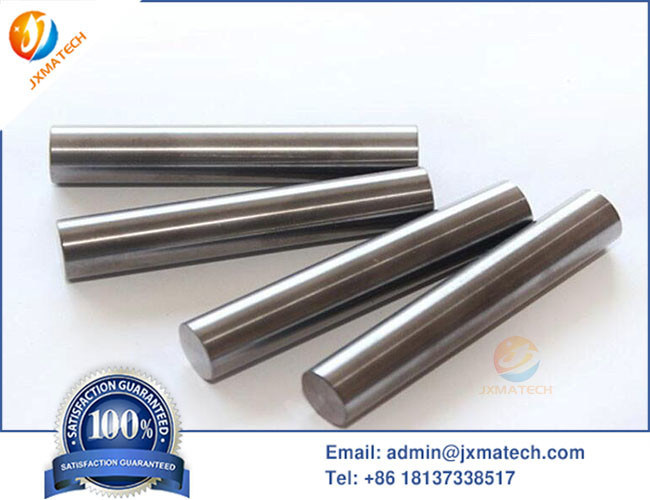

Cemented Tungsten Steel Rods With High Hardness And Wear Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K30 Tungsten Steel Rods
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Steel Rods Type: K20/30
Density: 14.43 G/cc Standard: ASTM B578-2010
Hardness: 107 HAR Elastic Modulus: 491 GPa
Packaging: Export Plywood Cases Application: Extrusion Molding
High Light:

Cemented Tungsten Steel Rods


High Hardness Tungsten Steel Rods


Tungsten Steel Rods Wear Resistance

Product Description

Cemented Tungsten Steel Rods With High Hardness And Wear Resistance

Tungsten Steel Rods are mainly used to manufacture various metal and non-metallic tools, such as PCB micro drill bits, drill bits, end mills, reamers, etc., and are used to process aluminum alloy, stainless steel, heat-resistant alloy steel, ductile iron, nickel-based and titanium Alloys, non-ferrous metals and other products. Tungsten steel rods are also widely used in stamping tools and wear-resistant tools, such as plug-ins of various shapes, silicon steel sheets and cold-rolled plates, stainless steel punches, thimble and punching pins.

Specification Table of Tungsten Carbide Rods

WC bar / rod Diameter Length
Type Size (mm) Tolerance (mm) Size (mm) Tolerance (mm)
JX040-50 4 +0.2~0.4 50 1
JX050-50 5 +0.2~0.4 50 1
JX060-50 6 +0.2~0.4 50 1
JX060-60 6 +0.2~0.4 60 1
JX080-60 8 +0.2~0.4 60 1
JX100-75 10 +0.2~0.4 75 1.5
JX100-100 10 +0.2~0.4 100 2
JX120-75 12 +0.2~0.4 75 1.5
JX120-100 12 +0.2~0.4 100 2
JX140-100 14 +0.3~0.5 100 2
JX160-100 16 +0.3~0.5 100 2
JX200-100 20 +0.3~0.5 100 2

Cemented Tungsten Steel Rods With High Hardness And Wear Resistance 0Cemented Tungsten Steel Rods With High Hardness And Wear Resistance 1Cemented Tungsten Steel Rods With High Hardness And Wear Resistance 2

Feature of Tungsten Carbide Rods

  • Low pressure sintering technology is adopted, and the quality is stable and reliable. Effectively eliminate internal pores, have high hardness, high strength blank, and have good compactness.
  • Using the overpressure automatic pressure relief extrusion equipment, various types of bars can be produced. The pressure can be adjusted according to different requirements, which is conducive to the production of different types of bars.
  • High precision finish grinding of bar can achieve mirror effect. Using CNC grinding machine, the polishing rate is the highest, the surface finish is improved, and the mirror effect can be achieved.


Brief Introduction of Tungsten Carbide Rods

In the sintering process of cemented carbide, due to powder sintering, compared with ordinary die steel, the properties have no directionality. In the processing process, it can be divided into different shapes according to the specifications, and the fracture toughness of superhard materials is small. In a large range, cemented carbide has both good hardness and toughness, so it has become the most widely used hard material and is widely used in engineering and tool products.
