W Ni Fe Alloy Tungsten Nickel Iron Alloy Rods ASTM B777

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: W Ni Fe Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: W Ni Fe Alloy Surface: Bright Ground Finished
Standard: ASTM B777 , AMS-T-21014 Density: 17~18.5 G/cm3
Dimensions: Customized Application: Balance Weight, Ball Bearing, Aerospace
High Light:

Tungsten Nickel Iron Alloy Rods


W Ni Fe Tungsten Nickel Iron Alloy


ASTM B777 Tungsten Nickel Iron Alloy

Product Description

W Ni Fe Alloy Tungsten Nickel Iron Alloy Rods

W Ni Fe Alloy Feature:

High density: up to 18.8 g/cm3

Good radiation protection: Under the same thickness, the radiation protection ability of tungsten alloy is 1.7 times that of lead.

High strength: the tensile strength is 700mpa ~ 1000mpa.

Thermal conductivity: The thermal conductivity of tungsten alloy is 5 times that of die steel.

Small thermal expansion coefficient: The thermal expansion coefficient of tungsten is 4~6×10-6/℃, which is only 1/2-1/3 of steel.

Compared with lead toxicity, tungsten alloy has zero damage to the environment.

Has good plasticity, machining and welding capabilities.

type Density(g/cm³) Tensile strength(MPa) Elongation(%) Hardness(HRC)
85W-10.5Ni-4.5Fe 15.8~16.0 700-980 20-33 20-28
90W-7Ni-3Fe 16.9~17.15 700-980 20-33 24-32
90W-6Ni-4Fe 16.8~17.0 700-980 20-33 24-32
91W-6Ni-3Fe 17.1~17.3 700-980 16-25 25-32
92W-5Ni-3Fe 17.3~17.5 700-980 18-24 25-32
92.5W-5Ni-2.5Fe 17.4~17.6 700-980 24-30 25-32
93W-4Ni-3Fe 17.5~17.6 700-980 15-25 26-30
93W-4.9Ni-2.1Fe 17.5~17.6 700-980 18-28 26-30
93W-5Ni-2Fe 17.5~17.6 700-980 15-25 26-30
95W-3Ni-2Fe 17.9~18.1 600-750 8-15 28-35
95W-3.5Ni-1.5Fe 17.9~18.1 600-750 8-13 28-35
96W-3Ni-1Fe 18.2~18.3 600-750 6-10 30-35
97W-2Ni-1Fe 18.4~18.6 550-750 8-14 30-35
98W-1Ni-1Fe 18.5~18.7 550-750 2-5 30-36

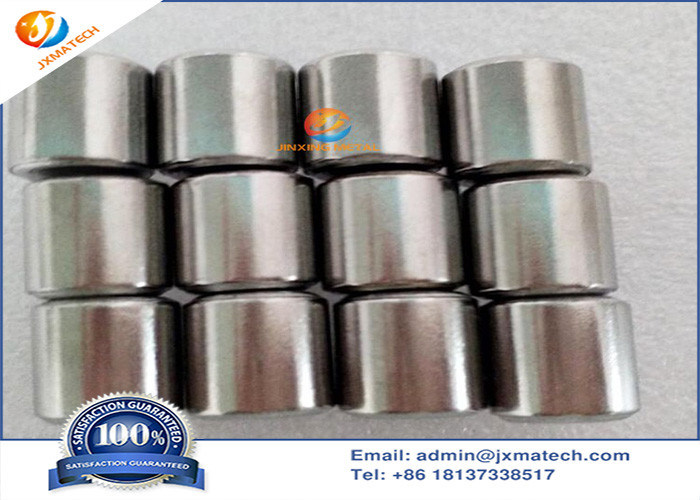

W Ni Fe Alloy Picture:

W Ni Fe Alloy Tungsten Nickel Iron Alloy Rods ASTM B777 0

W Ni Fe Alloy Tungsten Nickel Iron Alloy Rods ASTM B777 1

W Ni Fe Alloy Tungsten Nickel Iron Alloy Rods ASTM B777 2

Tungsten Nickel Iron Alloy Rods W-Ni-Fe Alloy has higher density (16.5-18.75g/cm3), higher strength (tensile strength 700-1000Mpa), larger thermal conductivity (5 times that of die steel), and smaller linear expansion coefficient ( Only 1/2-1/3 of iron or steel), good electrical conductivity and plasticity, excellent weldability and processing performance. Our W-Ni-Fe alloy is used in collimators and shielding components to provide protection against x-ray and gamma-ray radiation. A product made of tungsten, nickel, and copper, distinguished by its non-magnetic properties. This material is used to avoid magnetic fields


W Ni Fe Alloy application:

Used to manufacture aerospace and aerospace gyroscope rotors, guide rails, shock absorbers

Used for mechanical manufacturing of die-casting molds, tool holders, boring bars, automatic hammers, etc.

Used for conventional weapons and armor-piercing missiles, switch contacts, etc.

Used as counterweight, recoil bar, counterweight
