Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates

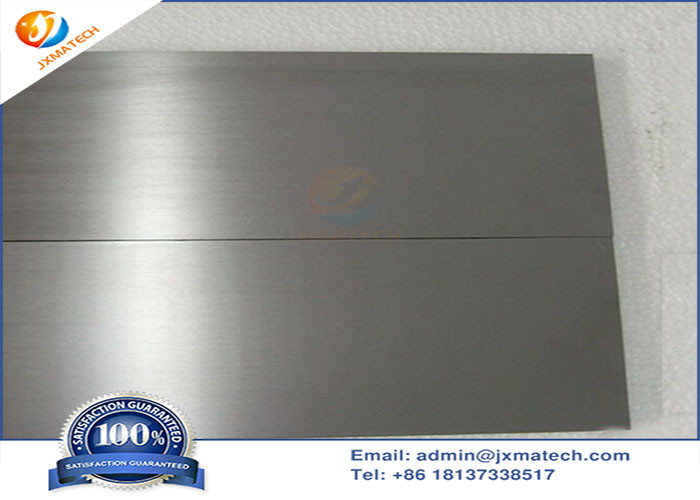

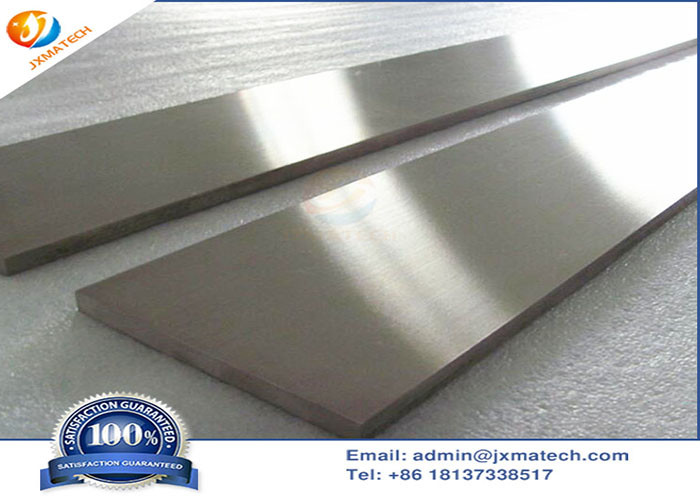

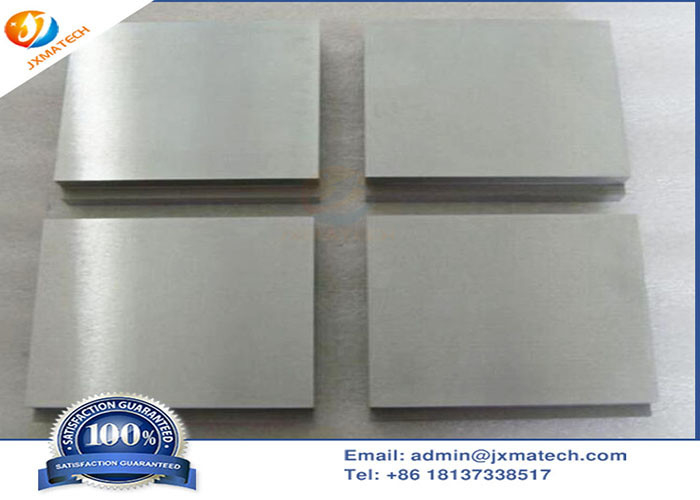

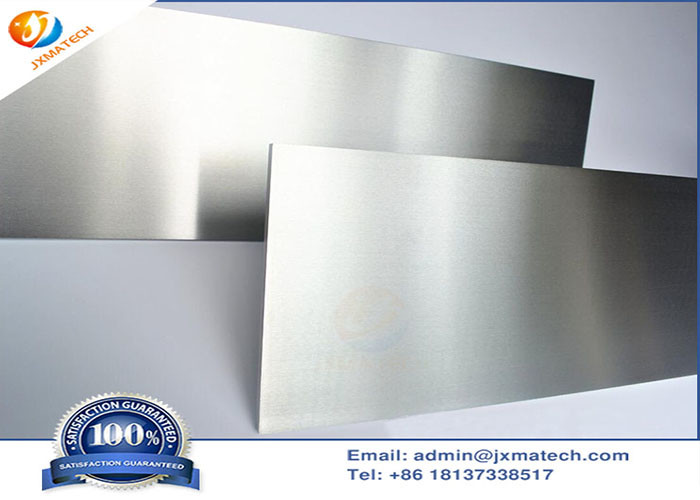

Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates

Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiCu - Heavy Tungsten Alloy Plates
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Heavy Tungsten Alloy Plates Type: 90WNiCu
Density: 16.1-18.5 G/cc Purity: 90% W
Tensile Strength: 720-1400 MPa Elongation: <11%
Standards: ASTM B777-2010 Applications: Machined Parts
High Light:

WNiCu Tungsten Heavy Alloy Plates

,

WNiFe Tungsten Heavy Alloy Plates

,

Astm B777 Tungsten Heavy Alloy Plates

Product Description

Astm B777 WNiFe Machined WNiCu Heavy Tungsten Alloy Plates

Heavy Tungsten Alloy Plates have high density, high strength, high hardness (commonly known as 3H alloy) and other comprehensive excellent properties as well as good ductility, electrical conductivity and thermal conductivity, playing an important role in weapon manufacturing. Then they are widely used in defense industry, aerospace and civil industry (such as electrical industry, drilling industry, etc.), high gravity tungsten alloy material has become a kind of military and civil alloy material.



SPECIFICATION & CHEMICAL COMPOSITION  (NOMINALS)

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min



Heavy Tungsten Alloy Plates Pictue:

Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates 0Astm B777 WNiFe Machined WNiCu Tungsten Heavy Alloy Plates 1

Introduction & Features of Heavy Tungsten Alloy Plates

Heavy Tungsten Alloy Plates are mainly divided into two series: W-Ni-Fe and W-Ni-Cu, and even W-Ni-Fe-Cu. In contrast, the W-Ni-Fe alloy has better mechanical properties and plays a huge role in the defense industry and various fields of the national economy. It is a very important new military material in the national defense industry and has been gradually extended to various civilian industries.



The tungsten content in tungsten heavy alloys varies from 90% to 98%, which is the reason for their high density (16.5 to 19.00 g/cc). Nickel, iron, and/or copper are used as a metal binder matrix to hold together the brittle tungsten particles, making the tungsten alloy ductile and easy to process. Nickel-iron is the most commonly used additive in a ratio of 7Ni:3Fe or 8Ni:2Fe (by weight).



Application of Heavy Tungsten Alloy Plates

  • An important application of high gravity tungsten alloy is used in aircraft and helicopter lift control and rudder balance device, aircraft wing and rudder control device and aircraft damping device. Used in helicopter rotor blade static and dynamic balancing weight and damping device.
