ASTM B777-2010 Tungsten Bullet Weights 95WNiFe

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: 95WNiFe Good Quality Tungsten Bullet Weights 95WNiFe
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Good Quality Tungsten Bullet Weights 95WNiFe Type: 95WNiFe
Density: 16.1 -18.5 G/cc Purity: 95% W
Tensile Strength: 710-1400 MPa Elongation: <10%
Standard: ASTM B777-2010 Applications: Fishing Tying
High Light:

ASTM B777-2010 Tungsten Bullet Weights


95WNiFe Tungsten Bullet Weights


95WNiFe tungsten worm weights

Product Description

Good Quality Tungsten Bullet Weights 95WNiFe

Tungsten Bullet Weights are heavy tungsten alloys because they weigh more than twice as much as steel. High specific gravity tungsten alloys are usually refractory metals containing W-Ni-Fe, W-Ni-Cu or even W-Ni-Cu-Fe complexes. Some tungsten alloys add rare earths and/or other metals, such as cobalt, molybdenum and chromium. Heavy tungsten alloys have a high melting point, are twice as dense as steel and more than 50 percent heavier than lead.



Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

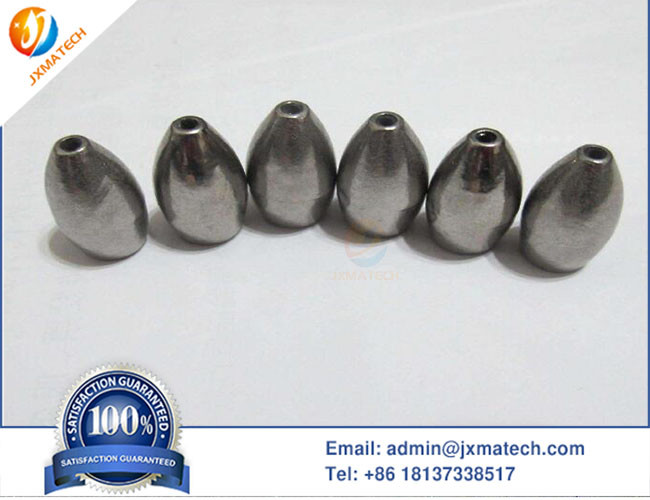

Tungsten Bullet Weights Picture:

ASTM B777-2010 Tungsten Bullet Weights 95WNiFe 0ASTM B777-2010 Tungsten Bullet Weights 95WNiFe 1ASTM B777-2010 Tungsten Bullet Weights 95WNiFe 2


What is Tungsten Bullet Weights?

The heavy tungsten alloys are mainly divided into w-Ni-Fe, W-Ni-Cu and even W-Ni-Fe-Cu series. In contrast, W-Ni-Fe alloy has better mechanical properties and plays a great role in various fields of defense industry and national economy. It is a very important new military material in the national defense industry, and gradually extended to a variety of civilian industries.


Heavy tungsten alloys contain 90-98% tungsten, which accounts for their high density (16.5-19.00 g/CC). Nickel, iron and/or copper are used as metal adhesive substrates to bind fragile tungsten particles together, making tungsten alloys ductile and easy to work. Ferric nickel-nickel is the most commonly used additive with a ratio of 7Ni:3Fe or 8Ni :2Fe (by weight).

Application of Tungsten Bullet Weights

Tungsten alloy fishing sinker is a kind of fishing gear made of tungsten alloy material. Tungsten alloy fishing sinkers have high density, small size and different shapes, which are suitable for the selection of various river sections. Tungsten alloy fishing sinker has different advantages from other manufacturing materials.


  1. High density: The density of tungsten alloy can reach 18.5g/cm3, which is much smaller in volume than other materials under the same mass.
  2. Corrosion resistance: The chemical properties of tungsten alloy are stable and do not react with any substances at room temperature. The fishing sinker is used in contact with water for a long time, and if it is an iron material, it is easy to be oxidized.
  3. High hardness: The hardness of tungsten alloy is second only to diamond and has considerable hardness. The fishing sinker will inevitably collide with hard objects during use. The high hardness material can make the fishing sinker not easy to break and deform.
