Polishing Burnishing Tungsten Alloys Corrosion Resistance High Density

Polishing Burnishing Tungsten Alloys Corrosion Resistance High Density

Product Details:
Place of Origin:	China
Brand Name:	JX
Certification:	ISO
Model Number:	Tungsten Heavy Alloy / Wnife/ Wnicu / Tungsten Alloys
Payment & Shipping Terms:
Minimum Order Quantity:	10kgs
Price:	according to actual products
Packaging Details:	standard packing
Delivery Time:	25days
Payment Terms:	T/T
Supply Ability:	300kgs month

Contact Now

Detail Information
Size:	As Request	Quality:	ISO9001:2008
Surface:	Polishing,burnishing,black Surface	Delivery Time:	25days
Packing:	Standard Exporting	Name:	Tungsten Heavy Alloy / Wnife/ Wnicu / Tungsten Alloys
High Light:	Polishing Burnishing Tungsten Alloys , Corrosion Resistance Tungsten Alloys , ISO High Density Tungsten Alloys

Product Description

2022 Heavy Tungsten Alloy / Wnife/ Wnicu / Tungsten Alloys

Heavy Tungsten Alloy Description

High density alloy
Tungsten Alloy Code: GMW
Density: (17-18.5) g/cm3
Main Component: W(88-98)% with the addition of nickel and copper or nickel and iron, etc.

Main Application:
1- Shakers in micromotor widely used in toys and mobile phones.
2- Radioshielding materials. For example, collimator in flaw detector and clinical Radioshielding needle.
3- Parts of balance wight
4- Widely used in military equipment and fishing equipment to raplace uranium and plumbum for no pollution in circumstance.
5- Used in electro-forge and electro-heading.
6- Used in armor-piercer.
7- Contacts material in high voltage.
8- Inertia balance weight ball in missile, plane and race-car.

Tungsten Heavy Alloy Advantages:
- High density
- Excellent mechanical properties such as high vibration-damping capacity and high Young's modulus.
- Excellent radiation-shielding property
- High thermal conductivity with low thermal expansion coefficient
- Higher high-temperature strength and thermal shock resistance
- High oxidation resistance and corrosion resistance

**We supply this material as per customerized sizes and properties.

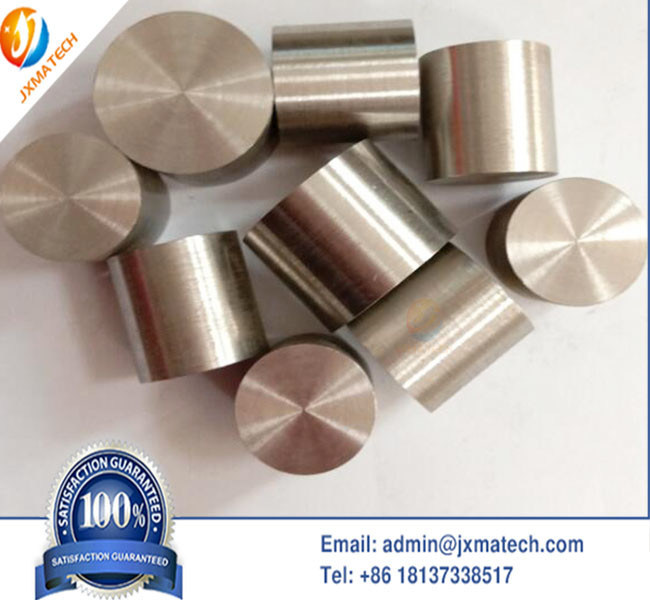

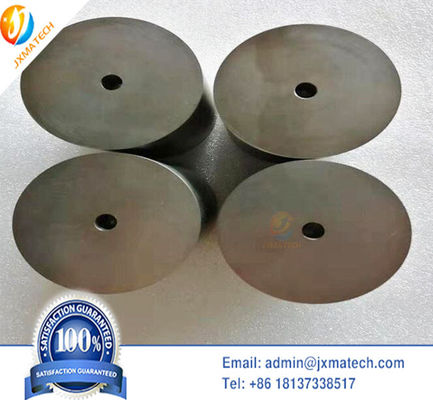

Tungsten Heavy Alloy Picture:
Polishing Burnishing Tungsten Alloys Corrosion Resistance High Density 0

Typical Properties*
	HD 17 90% W 6% Ni 4% Cu	HD 17D 90% W 7% Ni 3% Fe	HD 17.5 92.5% W 5.25% Ni 2.25% Fe	HD 17.6 92.5% W Balance Ni Fe Mo	HD 17.7 93% W Balance Ni Fe Mo	HD 18 95% W 3.5% Ni 1.5% Cu	HD 18D 95% W 3.5% Ni 1.5% Fe	HD 18.5 97% W 2.1% Ni .9% Fe
Mill, Spec. T-21014 D SAE Aero. Materal Spec. (AMS) 7725C ASTM-B-777-97	Class 1 Type 1 Class 1	Class 1 Type 2 Class 1	Class 2 ---- Class 2	Diemitech ---- ----	S Chat. Free ---- ----	Class 3 ---- Class 3	Class 3 ---- Class 3	Class 4 ---- Class 4
Density Gms/cc Density Lbs/cu. in.	17 .614	17 .614	17.5 .632	17.6 .636	17.7 .639	18 .650	18 .650	18.5 .668
Hardness Rockwell C	24	25	26	30	32	27	27	28
Ultimate Tensile Strength (PSI)	110,000	120,000	114,000	120,000	125,000	110,000	120,000	123,000
Yeild Strength .2% offset (PSI)	80,000	88,000	84,000	90,000	95,000	85,000	90,000	85,000
Elongation (% in 1")	6	10	7	4	4	7	7	5
Proportional Elastic Limit (PSI)	45,000	52,000	46,000	55,000	60,000	45,000	44,000	45,000
Modules of Elasticity (PSI)	40 x 10 6	45 x 10 6	47 x 10 6	52 x 10 6	53 x 10 6	45 x 10 6	50 x 10 6	53 x 10 6
Coefficient of Thermal Expansion x 10 -6 / o C (20-400 o C)	5.4	4.61	4.62	4.5	4.5	4.43	4.6	4.5
Thermal Conductivity (CGS Units)	.23	.18	.20	.27	.27	.33	.26	.30
Electrical Conductivity (% IACS)	14	10	13	14	14	16	13	17
Magnetic Properties	NIL	Slightly Magnetic	Slightly Magnetic	Slightly Magnetic	Slightly Magnetic	NIL	Slightly Magnetic	Slightly Magnetic
* Properties may vary according to size and shap of part. ** Composition shown is typical and may change for manufacturing purposes or to meet physical and/or application requirements. If non-magnetic material is required, it should be specified.
