Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace
Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace

Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiCu - Tungsten Alloy Board
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Tungsten Alloy Board Grade: 90WNiCu
Density: 16.2-18.5 G/cc Purity: >90% W
Tensile Strength: 710-1400 MPa Elongation: <10%
Standards: ASTM B777-2009 Applications: Machined Parts
High Light:

WNiCu Tungsten Alloy Plate

,

Astm B777 Tungsten Alloy Plate

,

Aerospace WNiCu Tungsten Alloy Plate

Product Description

Astm B777 WNiCu Machined Heavy Tungsten Alloy Board

Heavy Tungsten Alloy Board has comprehensive excellent properties such as high density, high strength and high hardness (commonly known as 3H alloy), as well as good ductility, conductivity and thermal conductivity. It plays an important role in weapon manufacturing. Subsequently, it has been widely used in national defense industry, aerospace and civil industry (such as electrical industry and drilling industry). High gravity tungsten alloy materials have become military and civil alloy materials.



SPECIFICATIONS & CHEMICAL COMPOSITIONS  (NOMINAL)

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

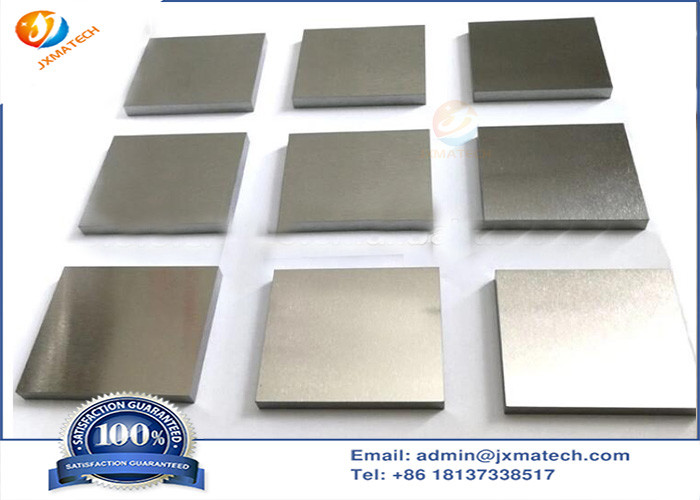

Heavy Tungsten Alloy Board Picture:
Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace 0Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace 1Astm B777 WNiCu Machined Heavy Tungsten Alloy Plate For Aerospace 2

Introduction & Features of Heavy Tungsten Alloy Board

Tungsten alloy board is mainly divided into two series: W-Ni-Fe and W-Ni-Cu, and even W-Ni-Fe-Cu. In contrast, the W-Ni-Fe alloy has better mechanical properties and plays a huge role in the defense industry and various fields of the national economy. It is a very important new military material in the national defense industry and has been gradually extended to various civilian industries.



The tungsten content in tungsten heavy alloys varies from 90% to 98%, which is the reason for their high density (16.5 to 19.00 g/cc). Nickel, iron, and/or copper are used as the metal binder matrix to bind the brittle tungsten particles together, making the tungsten alloy tough and easy to process. Nickel-iron is the most commonly used additive in a ratio of 7Ni:3Fe or 8Ni:2Fe (by weight).



Application of Tungsten Alloy Board

  • Tungsten alloys with high specific gravity are used to make tool holders, especially boring bars.

  • The high specific gravity tungsten alloy is used as the counterweight material for the high crankshaft of the small engine of the chain saw for the monthly supply of forest.

  • The electrodes of EDM and electrochemical machine tools are also made of high specific gravity tungsten gold.

Tag:

tungsten bullet weights

tungsten balance weights

tungsten alloy ball
