ASTM B777 High Density Heavy Tungsten Alloy Sheet WNiFe

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiFe Heavy Tungsten Alloy Plate
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Heavy Tungsten Alloy Plate Grade: 95WNiFe
Density: 16.3-18.5 G/cc Purity: >95% W
Tensile Strength: 760-1400 MPa Elongation: <9%
Standards: ASTM B777-2010 Applications: Aircraft Shock Absorber
High Light:

High Density Heavy Tungsten Alloy Sheet


ASTM B777 Heavy Tungsten Alloy Sheet


WNiFe Heavy Tungsten Alloy Sheet

Product Description

ASTM B777 High Density Heavy Tungsten Alloy Plate WNiFe

Because Heavy Tungsten Alloy Plate has excellent radiation resistance, thermal conductivity, electrical conductivity and corrosion resistance, it is an ideal material for making tungsten heavy metal plates, and can be further used to make tungsten heavy metal targets, tungsten heavy metal thermal elements, and radiation-resistant tungsten alloy plates. The new lead-free shielding components are mainly used for radiation protection in radiology departments such as hospital x-ray rooms and CT rooms. It has a good shielding effect on x-rays and gamma rays.

Description of tungsten alloy sheet:

Density: (16.8 - 18.8) g/cm3

Surface Condition: Machined, Ground

Standard: ams-t-21014

Size: Thickness 1.0mm - 150mm, width up to 300mm, length up to 600mm

Composition: W content: 88-98%, W-ni-fe, W-ni-cu

Surface: Sintered state, finished state

Application: balance, military industry

Heavy tungsten alloy foil is also called tungsten heavy alloys because tungsten alloys weigh more than twice as much as iron or steel. High specific gravity tungsten alloys are usually refractory metals composed of W-Ni-Fe or W-Ni-Cu or even W-Ni-Cu-Fe two-phase composites. Some tungsten alloys with rare earth and/or other metals added, such as cobalt, molybdenum, chromium, and heavy tungsten alloys, have high melting points, twice the density of steel, and are more than 50 percent heavier than lead.

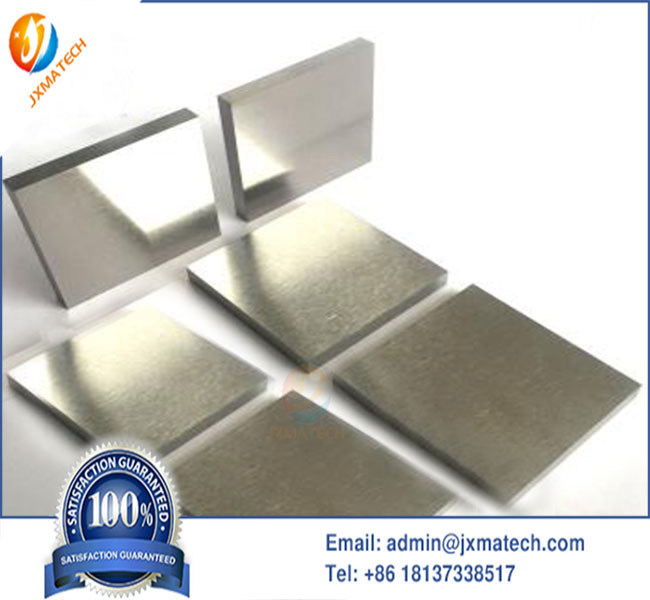

Heavy Tungsten Alloy Plate Picture:

ASTM B777 High Density Heavy Tungsten Alloy Sheet WNiFe 0ASTM B777 High Density Heavy Tungsten Alloy Sheet WNiFe 1


Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min



Introduction and characteristics of Heavy Tungsten Alloy Plate

The Heavy Tungsten Alloy Plate is between 90% and 98%, which is responsible for its high density (16.5 ~ 19.00g / CC).Nickel, iron, and / or copper are used as a metal adhesive substrate to hold the fragile tungsten particles together to make the tungsten alloy malleable and easy to process.Iron nickel is the most commonly used additive, with a ratio of 7Ni: 3Fe or 8ni: 2Fe (weight ratio).


Commonused processes for preparing heavy tungsten alloys include mixing required amounts of tungsten, iron, nickel or copper powder followed by cold pressure and liquid phase sintering to almost full density.During the liquid phase treatment, the matrix tungsten alloy is melted and part of the tungsten is brought into the solution to form a microtissue, and large tungsten particles (20 ~ 60 m) are dispersed in the matrix alloy.


Application of Heavy Tungsten Alloy Plate

  • A thermoelectric generator is a device for generates fusion energy using radioactive isotopes.It can use a high-density tungsten alloy as a container.It has been widely used in meteorological stations, light buoys, sound communications beacons, marine research and other fields.
