Heavy Tungsten Alloy Bolts For Industry WNiFe

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiFe - Heavy Tungsten Alloy Bolts
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Heavy Tungsten Alloy Bolts Type: 90WNiFe
Density: 16.2-18.5 G/cc Purity: >90% W
Tensile Strength: 720-1400 MPa Elongation: <11%
Standards: ASTM B777-2009 Applications: Fastening
High Light:

Heavy Tungsten Alloy Bolts


Tungsten Alloy Bolts WNiFe


90WNiFe Tungsten Alloy Bolts

Product Description

High Density Heavy Tungsten Alloy Bolts For Industry WNiFe

Heavy Tungsten Alloy Bolts is also known as tungsten heavy alloy, because the tungsten alloy weighs more than twice as much as iron or steel.High-specific gravity tungsten alloys are usually a refractory metal composed of W-Ni-Fe or W-Ni-Cu or even W-Ni-Cu-fe two-phase composites.Some tungsten alloys added with rare earth and / or other metals, such as cobalt, molybdenum, chromium and heavy tungsten alloys, have a high melting point, are twice the density of steel, and are more than 50% heavier than lead.



Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

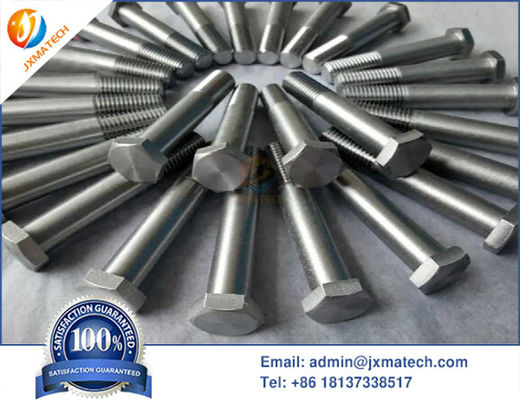

Heavy Tungsten Alloy Bolts For Industry WNiFe Picture:

Heavy Tungsten Alloy Bolts For Industry WNiFe 0Heavy Tungsten Alloy Bolts For Industry WNiFe 1Heavy Tungsten Alloy Bolts For Industry WNiFe 2

Introduction and characteristics of Heavy Tungsten Alloy Bolts

  1. Heavy tungsten alloy content is between 90% and 98%, which is the reason for its high density (16.5 ~ 19.00g / CC).Nickel, iron, and / or copper are used as metal bonding substrates to fix fragile tungsten particles, which makes the tungsten alloy malleable and easy to process.Iron and nickel is the most commonly used additive with a ratio of 7Ni: 3Fe or 8ni: 2Fe (weight ratio).
  2. Common processes used for preparing heavy tungsten alloys include mixing the desired amounts of tungsten, iron, nickel or copper powder followed by cold pressure and liquid phase sintering to almost complete density.During the liquid phase treatment, part of the matrix tungsten alloy melt brings the tungsten into the solution to form a microstructure, and the larger tungsten particles (20 ~ 60 m) are dispersed in the matrix alloy.


Application of Heavy Tungsten Alloy Bolts

  • Therthermogenerator is a device that produces fusion energy by using radioactive isotopes.It can use a high-density tungsten alloy as a container.It has been widely used in weather stations, light buoys, acoustic communication beacons, ocean research and other fields.
