Industrial High Density Heavy Tungsten Alloy Threads 90%W
Industrial High Density Heavy Tungsten Alloy Threads 90%W Industrial High Density Heavy Tungsten Alloy Threads 90%W Industrial High Density Heavy Tungsten Alloy Threads 90%W Industrial High Density Heavy Tungsten Alloy Threads 90%W

Industrial High Density Heavy Tungsten Alloy Threads 90%W

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiFe - Heavy Tungsten Alloy Threads
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Heavy Tungsten Alloy Threads Grade: 90WNiFe
Density: 16.2-18.5 G/cc Purity: 90%W
Tensile Strength: 730-1400 MPa Elongation: <11%
Standard: ASTM B777-2011 Application: Fastening
Highlight:

Heavy Tungsten Alloy Threads

,

Industrial Tungsten Alloy Threads

,

90%W Tungsten Alloy Threads

Product Description

Industrial High Density 90WNiFe Heavy Tungsten Alloy Threads

Heavy Tungsten Alloy Threads have high hardness (also known as 3H alloy), and has excellent comprehensive properties such as good ductility, thermal conductivity and thermal conductivity. It plays an important role in the manufacture of weapons and is widely used in the defense industry. Aerospace and civil industries (such as electrical, drilling and other industries). High specific gravity tungsten alloy has become a military and civilian alloy material.



Heavy Tungsten Alloy Threads SPECIFICATION & CHEMICAL

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

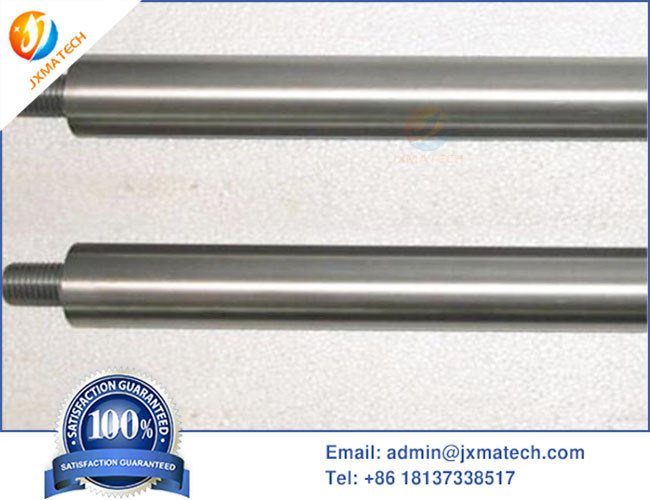

Heavy Tungsten Alloy Threads Picture:
Industrial High Density Heavy Tungsten Alloy Threads 90%W 0Industrial High Density Heavy Tungsten Alloy Threads 90%W 1Industrial High Density Heavy Tungsten Alloy Threads 90%W 2

Introduction and characteristics of Heavy Tungsten Alloy Threads

  1. The tungsten content of heavy tungsten alloy is between 90% and 98%, which is the reason for its high density (16.5~19.00g/CC). Nickel, iron and/or copper are used as metal bonding substrates to bind the fragile tungsten particles together, making tungsten alloys malleable and easy to work with. Nickel-iron is the most commonly used additive in a ratio of 7Ni:3Fe or 8ni:2Fe (weight ratio).
  2. The usual process for making heavy tungsten alloys involves mixing the desired amount of tungsten, iron, nickel or copper powder, followed by cold pressing and liquid phase sintering to near full density. During the liquid phase treatment, a certain amount of tungsten is added to the tungsten alloy melt to form a microstructure and form large tungsten particles (20–60 μm) dispersed in the matrix alloy.



Application of Heavy Tungsten Alloy Threads

  • In order to improve the nuclear kinetic energy and armor piercing ability of projectile, the use of high specific gravity tungsten alloy is a successful technical measure in the design and development of armor piercing projectile abroad. At present, in addition to the United States, many Western European countries have adopted tungsten alloy core materials.
