90WNiFe Heavy Tungsten Alloy Syringe For Nuclear Shielded Use

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Heavy Tungsten Alloy Syringe
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Heavy Tungsten Alloy Syringe Grade: 90WNiFe
Density: 16.2-18.5 G/cc Purity: >90% W
Tensile Strength: 730-1400 MPa Elongation: <9%
Standards: ASTM B777-2010 Applications: Medical
High Light:

90WNiFe Heavy Tungsten Alloy


90WNiFe tungsten syringe shields


90WNiFe Syringe For Nuclear Shielded

Product Description

90WNiFe Heavy Tungsten Alloy Syringe For Nuclear Shielded Use

Heavy Tungsten Alloy Syringe is made of tungsten matrix (tungsten content is generally 80%~98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements.High gravity tungsten alloy density as high as 15.20~18.70g/cm3, also known as high gravity tungsten alloy or high density alloy material.Because the tungsten alloy weighs more than twice as much as the steel.


Heavy Tungsten Alloy Syringe Chemical Composition

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

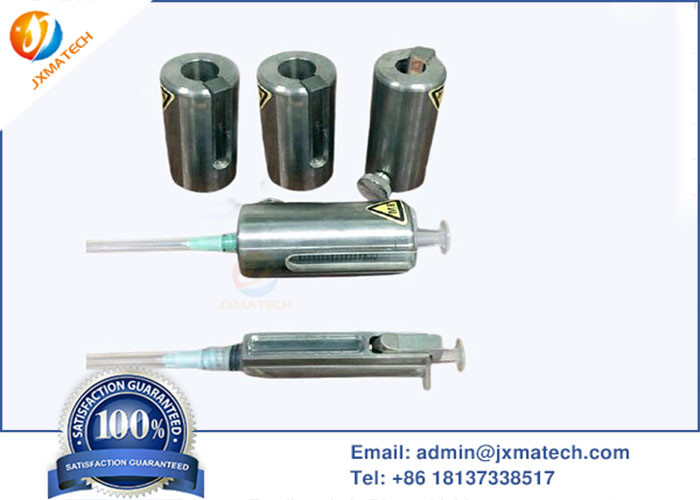

Heavy Tungsten Alloy Syringe Picture:

90WNiFe Heavy Tungsten Alloy Syringe For Nuclear Shielded Use 090WNiFe Heavy Tungsten Alloy Syringe For Nuclear Shielded Use 1

Introduction and Feature of Tungsten Alloy Syringe

  1. Tungsten alloy has a series of excellent properties, high proportion: general specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption capacity: 30-40% higher than the general lead proportion, high thermal conductivity: 5 times of mold steel; low thermal expansion coefficient: only 1 / 2-1 / 3 of steel, good conductivity, good welding and cutting performance.

  2. A common method for preparing heavy tungsten alloys is to mix the desired amount of tungsten, iron, nickel or copper powder and then cold pressure and liquid phase sintering to near full density.During the liquid phase treatment, the matrix tungsten alloy melts and part of the tungsten enters the solution to form microtissue and large tungsten particles (20-60 m), which are dispersed in the matrix alloy.

Application of Tungsten Alloy Syringe

  • Heavy duty tungsten disks are ideal for shielding X-rays and gamma rays. High density tungsten shielding (60% higher than lead).

  • Heavy-duty tungsten alloy shielding is mainly used in collimator, FDG container, multi-plate collimator, nuclear shielding, beam shielding, vial shielding, PET syringe shielding, isotope container and other fields.
