ASTM B777 High Density Heavy Tungsten Alloy Sheet WNiFe
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JX |
| Certification: | ISO 9001 |
| Model Number: | Radiation Shielding Parts High Density Heavy Tungsten Alloy |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 kg |
| Price: | Negotiable |
| Packaging Details: | plywood cases |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 kg per month |
|
Detail Information |
|||
| Product Name: | Radiation Shielding Parts High Density Heavy Tungsten Alloy | Grade: | Mo1 |
|---|---|---|---|
| Density: | 10.2 G/cm3 | Purity: | >99.95% |
| Tensile Strength: | >325 MPa | Elongation: | <20% |
| Standard: | ASTM B387-01 | Application: | Semiconductor |
| High Light: | Radiation Shielding Parts Tungsten Alloy,Mo1 Heavy Tungsten Alloy,Tungsten Alloy for Semiconductor |
||
Product Description
Radiation Shielding Parts Main Application:
Radiation Shielding Parts For making rotors of dynamic intertial materials, the stabilizers of aircraft wings, shielding materials for radioactive materials, containers in hospitals and for radioactive isotope (Cobalt 60), and for material of armor piercing bullets and moulds, etc.
Radiation Shielding Parts Advantages:
-High density
-Excellent mechanical properties such as high vibration-damping capacity.
-Excellent radiation-shielding property
-High thermal conductivity with low thermal expansion coefficient
-Higher high-temperature strength and thermal shock resistance
-High oxidation resistance and corrosion resistance
**We supply this material as per customerized sizes and properties.

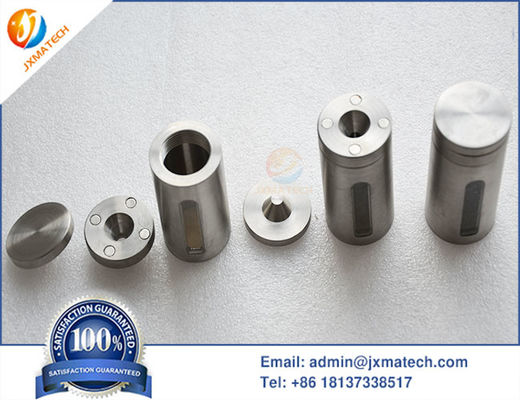

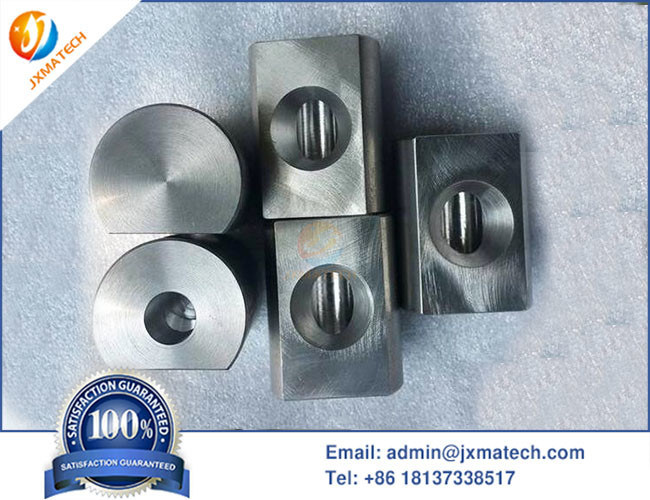

Radiation Shielding Parts Picture:
Radiation Shielding Parts Specifications:
| Alloy Type (%) |
HD17 90 W 6 Ni 4 Cu |
HD17D 90 W 7 Ni 3 Fe |
HD17.5 92.5 W 5.25 Ni 2.25 Fe |
HD17.6 92.5 W Balance Ni, Fe, Mo |
HD17.7 93 W Balance Ni, Fe, Mo |
HD18 95 W 3.5 Ni 1.5 Cu |
HD18D 95 W 3.5 Ni 1.5 Fe |
HD18.5 97 W 2.1 Ni .9 Fe |
| MIL-T-21014 | Class 1 | Class 1 | Class 1 | - | - | Class 3 | Class 3 | Class 4 |
| SAE-AMS-T-21014 | Class 1 | Class 1 | Class 2 | - | - | Class 3 | Class 3 | Class 4 |
| AMS 7725 C | 7725 C | 7725 C | -- | -- | -- | -- | -- | -- |
| ASTM B777-87 | Class 1 | Class 1 | Class 2 | - | - | Class 3 | Class 3 | Class 4 |
| Typical Density (g/cc) |
17.1 | 17.1 | 17.5 | 17.6 | 17.7 | 18 | 18 | 18.5 |
| Typical Density (lbs/in3) |
0.614 | 0.614 | 0.632 | 0.636 | 0.639 | 0.65 | 0.65 | 0.668 |
| Typical Hardness RC | 24 | 25 | 26 | 30 | 32 | 27 | 27 | 28 |
| Ultimate Tensile Strength Min (ksi) |
110,000 | 120,000 | 114,000 | 120,000 | 125,000 | 110,000 | 120,000 | 123,000 |
| 0.2% Offset Yield Strength Min (ksi) |
80,000 | 88,000 | 84,000 | 90,000 | 95,000 | 85,000 | 90,000 | 85,000 |
| Minimum % Elongation (1" gage length) |
6 | 10 | 7 | 4 | 4 | 7 | 7 | 5 |
| Proportional Elastic Limit (PSI) |
45,000 | 52,000 | 46,000 | 55,000 | 60,000 | 45,000 | 44,000 | 45,000 |
| Modulus of Elasticity (x106psi) |
40 x 106 | 45 x 106 | 47 x 106 | 52 x 106 | 53 x 106 | 45 x 106 | 50 x 106 | 53 x 106 |
| Coefficient of Thermal Expansion x10-6/0C (20-400C) |
5.4 | 4.61 | 4.62 | 4.5 | 4.5 | 4.43 | 4.6 | 4.5 |
| Thermal Conductivity (CGS Units) |
0.23 | 0.18 | 0.2 | 0.27 | 0.27 | 0.33 | 0.26 | 0.3 |
| Electrical Conductivity (% IACS) |
14 | 10 | 13 | 14 | 14 | 16 | 13 | 17 |
| Magnetic | No | Slightly | Slightly | Slightly | Slightly | No | Slightly | Slightly |
