High Specific Gravity Heavy Tungsten Alloy Rings Strong Light Absorption

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Heavy Tungsten Alloy Rings
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Heavy Tungsten Alloy Rings​ Type: 90WNiFe
Density: 16.3-18.5 G/cc Purity: 90%>W
Tensile Strength: 720-1400 MPa Elongation: <11%
Standards: ASTM B777-2011 Applications: Machined Parts
High Light:

Heavy Tungsten Alloy Rings

,

strong light absorption Heavy Tungsten Rings

,

high specific gravity Heavy Tungsten Rings

Product Description

High Performance Machined Heavy Tungsten Alloy Rings

Heavy tungsten alloy rings are made of tungsten base (tungsten content is generally 80%~98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of gravity tungsten alloy is as high as 15.20~18.70g/cm3, also known as gravity tungsten alloy or high-density alloy material. Because tungsten alloy weighs more than twice as much as steel.



SPECIFICATION & CHEMICAL COMPOSITIONS

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

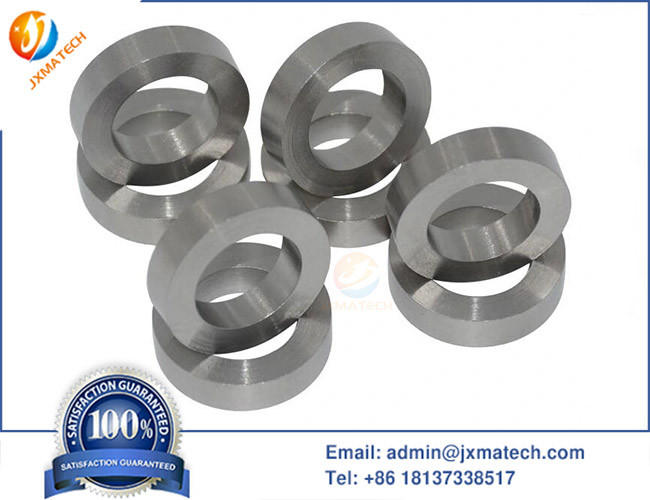

Heavy Tungsten Alloy Rings Picture:
High Specific Gravity Heavy Tungsten Alloy Rings Strong Light Absorption 0

High Specific Gravity Heavy Tungsten Alloy Rings Strong Light Absorption 1

Introduction and Feature of Heavy Tungsten Alloy Rings

  1. Tungsten alloy has a series of excellent properties, high specific gravity: general gravity lead 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption capacity: 30-40% higher than general gravity lead, thermal conductivity: 5 times that of modulus steel; low thermal expansion coefficient: only 1/2-1/3 of carbon steel, good electrical conductivity, good welding and processing skills.



  2. A common process for making heavy tungsten alloys involves mixing the desired amount of tungsten, iron, nickel or copper powder, followed by cold pressing and liquid phase sintering to near full density. During the liquid phase treatment, the matrix tungsten alloy melts and some tungsten enters the solution to form a microstructure, so that larger tungsten particles (20-60m) are dispersed in the matrix alloy.



Application of Heavy Tungsten Alloy Rings

  • The dual source range density meter uses a tungsten alloy as the shielding element to measure the oil content of the oil layer several kilometers below the surface. The instrument is widely used because of its small size, high precision and long service life.
