WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity
WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity
WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity

WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Tungsten Heavy Alloy Balance Weight
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Tungsten Heavy Alloy Balance WeightTungsten Heavy Alloy Balance Weight Grade: 90WNiFe
Density: 16.1-18.5 G/cc Purity: 90% W
Tensile Strength: 720-1400 MPa Elongation: <11%
Standards: ASTM B777-2009 Applications: Industrial Parts
High Light:

Tungsten Heavy Alloy Balance Weight

,

WNiFe Tungsten Heavy Balance Weight

,

High Thermal Conductivity Tungsten Heavy Balance Weight

Product Description

Tungsten Heavy Alloy Balance Weight

Tungsten Heavy Alloy Balance Weight is made of tungsten base (tungsten content is generally 80%-98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy can reach 15.20~18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because tungsten alloy weighs more than twice as much as steel.



SPECIFICATIONS of Tungsten Heavy Alloy Balance Weight

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

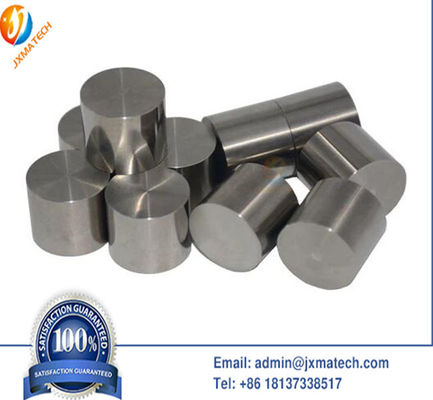

Tungsten Heavy Alloy Balance Weight Picture:
WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity 0WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity 1WNiFe Tungsten Heavy Alloy Balance Weight High Thermal Conductivity 2

Introduction and Feature of Tungsten Heavy Alloy Balance Weight



  1. Tungsten alloy has a series of excellent properties, high specific gravity: general specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption: 30-40% higher than general lead specific gravity, high thermal conductivity: mold It is 5 times that of steel; low thermal expansion coefficient: the capacity is only 1/2/1/1/3 of that of steel, with good electrical conductivity and good resistance to welding and cutting.

  2. A common method of making heavy tungsten alloys is to mix the desired amount of tungsten, iron, nickel or copper powder and then cold-press liquid phase sintering to near full density. During the liquid phase treatment, the base metal tungsten alloy melts, and part of the tungsten enters the solution to form large tungsten particles (20~60 μm) dispersed in the base metal alloy.



Application of Tungsten Heavy Alloy Balance Weight



  • Tungsten alloy balance weight helps to achieve the best performance when skiing. To do this, you need your skis, boots and ties in perfect balance. In order to better balance the ski itself and reduce the vibration of its parts, one or more tungsten alloy weights of different sizes can be used. Due to the small volume of tungsten alloy weight, the overall performance of ski can be improved.

  • People have realized that adding weights such as tungsten alloy ski balance weight can improve the performance of ski to a certain extent. However, due to the lack of in-depth analysis of the physical problems to be solved, users can decide the size and position of weight in each case according to their personal feelings.
