High Purity Molybdenum Discs Mo Targets
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JX |
| Certification: | ISO |
| Model Number: | Tzm Rod |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | according to actual products |
| Packaging Details: | standard packing |
| Delivery Time: | 25days |
| Payment Terms: | T/T |
| Supply Ability: | 300kgs month |
|
Detail Information |
|||
| Size: | As Request | Quality: | ISO9001:2008 |
|---|---|---|---|
| Surface: | Polishing,burnishing,black Surface | Delivery Time: | 25days |
| Packing: | Standard Exporting | Name: | Tzm Rod |
| Highlight: | Molybdenum Tzm Rod,Burnishing Tzm Alloy rod,Tzm Alloy Bar |
||
Product Description
Tzm Rod
Introduction:
Titanium zirconium molybdenum alloy Rod is the so-called TZM Rod, which refers to molybdenum-0.5% titanium-0.1% zirconium alloy. The common preparation methods of TZM alloy (molybdenum zirconium titanium alloy) are: arc melting-casting method and powder metallurgy technology. The arc melting-casting method of TZM rod is to melt pure molybdenum with electric arc, add a certain amount of Ti, Zr and other alloying elements by weight percentage, and then obtain TZM alloy (molybdenum zirconium titanium alloy) by conventional casting method; powder metallurgy has unique chemical composition and mechanical and physical properties that cannot be obtained by traditional casting methods. The alloy has better weldability and higher strength/hardness. TZM Rod/bars are made from metal powder, pressed into ingots, sintered, then die cast, and drawn to the desired size.

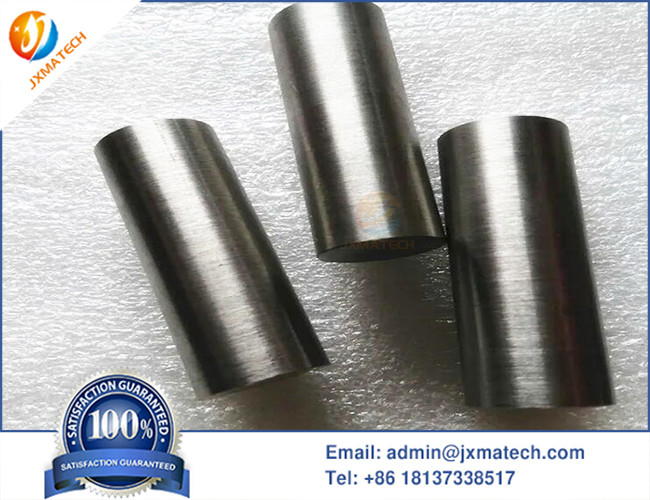

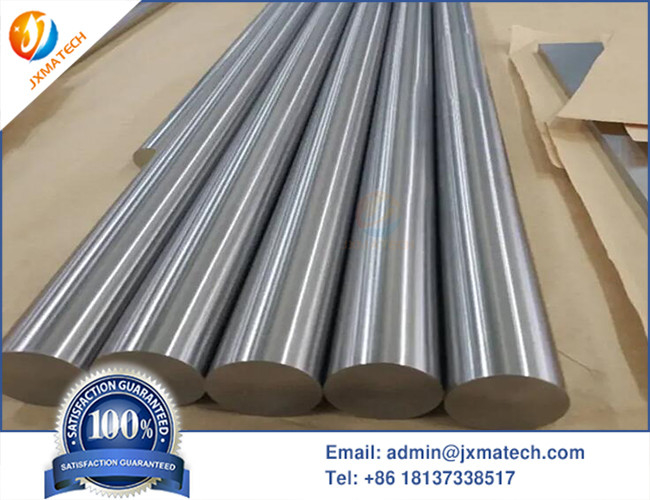

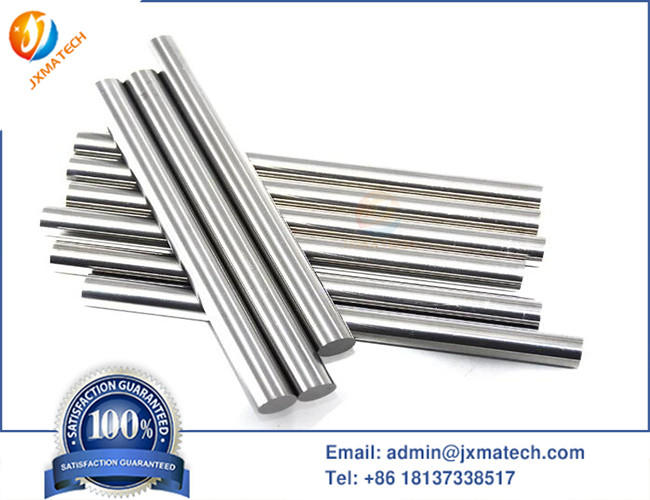

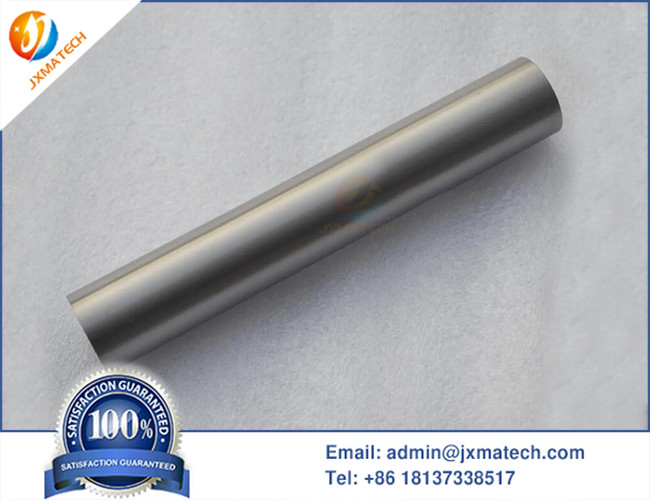

Tzm Rod Picture:
| Commodity Name | TZM rod bar for sale |
| Material | TZM(Ti0.5/Zr0.1), TZM(Ti0.5-Zr0.08) |
| Specification | as per customer's needs |
| Density | >=10.2g/cm3 |
| Type | Titanium Zirconium Molybdenum Alloy |
| Purity | Tzm(Ti0.5/Zr0.1), Tzm(Ti0.5-Zr0.08) |
| Surface treatment | ground, polished,machined |
| Technique | Powder Metallurgy |
| Certificate | ISO 9001:2015 |
| Standard | ASTM B386 Type 364 |
| Application | TZM is widely used in the aerospace, aviation and other industries. It could be used as nozzle material, valve body, gas piping materials, tubes in the gate material, die casting molds, extrusion dies and high temperature furnace element and heat shield etc |
| Advantages of TZM compared to pure molybdenum | 1. Above 1100°C tensile strength is about twice that of unalloyed molybdenum. 2. Better creep resistance. 3. Higher recrystallization temperature. 4. Better welding properties. |
| Production lead time | 7-15 days |
