High Temperature Resistant Tungsten Heavy Alloy Nozzles

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: 95WNiFe - Tungsten Heavy Alloy Nozzles
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Heavy Alloy Nozzles Grade: WNiFe
Density: 18.5 G/cc Purity: 95%W
Tensile Strength: 750-1400 MPa Elongation: <10%
Standards: ASTM B777-2011 Applications: Industrial Parts
High Light:

Temperature Resistant Tungsten Heavy Alloy

,

High Temperature Tungsten Nozzles

,

Tungsten Heavy Alloy Nozzles

Product Description

High-Temperature Resistant 95WNiFe Tungsten Heavy Alloy Nozzles

Tungsten Heavy Alloy Nozzles are made of tungsten base (tungsten content is generally 80% to 98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy can reach 15.20~18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because tungsten alloy weighs more than twice as much as steel.



Introduction and Feature of Tungsten Heavy Alloy Nozzles

  1. Tungsten alloy has a series of excellent properties, high specific gravity: general specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption: 30-40% higher than general lead specific gravity, high thermal conductivity: mold 5 times that of steel; low thermal expansion coefficient: capacity is only 1/2/3/3 of steel, good electrical conductivity, resistance to welding and cutting.

  2. The usual method of making heavy tungsten alloys is to mix the desired tungsten, iron, nickel or copper powders and then cold compress the liquid phase to near full density. During the liquid phase treatment, the matrix tungsten alloy melts, and part of the tungsten enters the solution, forming a microstructure of large tungsten particles (20-60 μm) dispersed in the matrix alloy.

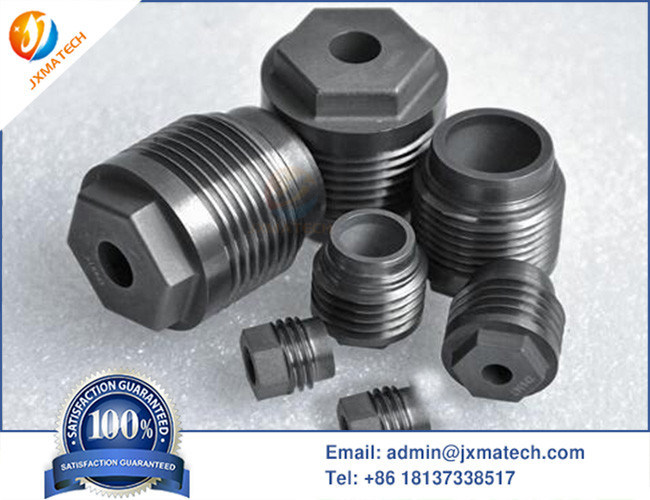

High Temperature Resistant Tungsten Heavy Alloy Nozzles 0High Temperature Resistant Tungsten Heavy Alloy Nozzles 1

High Temperature Resistant Tungsten Heavy Alloy Nozzles 2

Application of Tungsten Heavy Alloy Nozzles

  • The heavy tungsten alloy nozzle is made of high gravity tungsten alloy. Further improve the wear resistance, hardness, strength and heat resistance of the alloy, and better ensure the consistency of the product. Due to these properties, tungsten-iridium orifices have become an integral part of the high-tech crystal glass industry.

SPECIFICATIONS of Tungsten Heavy Alloy Nozzles

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min
