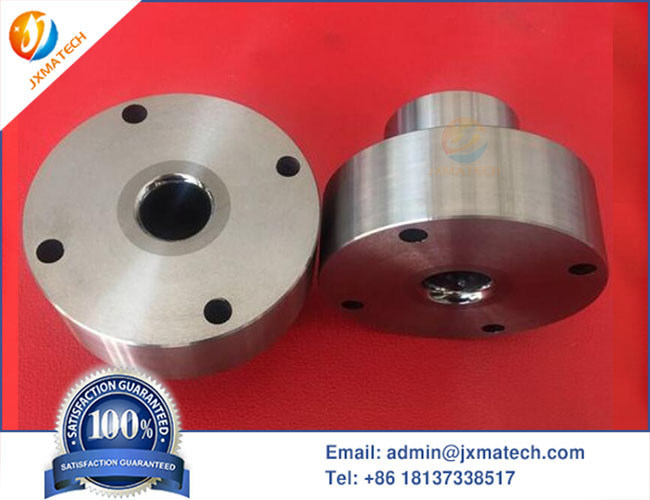

90WNiFe Heavy Tungsten Alloy Dies Corrosion Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: 90WNiFe - Heavy Tungsten Alloy Dies
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Heavy Tungsten Alloy Dies Grade: 90WNiFe
Density: 16.2 -18.5 G/cc Purity: >90%W
Tensile Strength: 720-1400 MPa Elongation: <10%
Standard: ASTM B777-2010 Applications: Mould
High Light:

90WNiFe Tungsten Alloy Dies


Corrosion Resistance Tungsten Alloy Dies


90WNiFe Heavy Tungsten Dies

Product Description

Corrosion Resistance 90WNiFe Heavy Tungsten Alloy Dies

Heavy Tungsten Alloy Dies are heavy-duty tungsten screws because they weigh more than twice as much as steel. High specific gravity tungsten alloys are usually refractory metals containing W ni-fe, W Ni-cu or even W Ni-cu-Fe complexes. Rare earths add/or other metals such as cobalt, molybdenum, and chromium to some tungsten alloys. Heavy tungsten alloys have a high melting point, are twice as dense as steel and more than 50 percent heavier than lead.

Heavy Tungsten Alloy Dies SPECIFICATIONS :

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

90WNiFe Heavy Tungsten Alloy Dies Corrosion Resistance 090WNiFe Heavy Tungsten Alloy Dies Corrosion Resistance 1

What is Heavy Tungsten Alloy Dies?

  1. Heavy tungsten alloys are mainly divided into W nickel-iron, W nickel-copper, and even W nickel-iron-copper series. In contrast, western nickel-iron alloys have better mechanical properties and play an important role in the defense industry and various fields of the national economy. It is a very important new military material in the national defense industry, and is gradually developing into a variety of civilian industries.

  2. Heavy duty tungsten alloys contain 90-98% high density tungsten (16.5-19.00g/CC). Nickel, iron, and/or copper are used as metal binder bases to hold brittle tungsten particles together, making the tungsten alloy tough and easy to use. Fe-ni is the most commonly used additive, with a weight ratio of 7Ni: 3Fe or 8Ni: 2Fe.


Application of Heavy Tungsten Alloy Dies

  • Die casting is a low-chip, chip-free precision casting process that can directly manufacture complex shaped parts. Single process, high yield, no holes, save raw materials, especially in iron metal die casting, mold working conditions are very bad, must be resistant to high temperature, high pressure and metal flow corrosion, and can withstand corrosion, oxidation and thermal impact. High specific gravity tungsten alloy is a good die casting material because of its good thermal conductivity and corrosion resistance. Compared with the copper mold, its service life is increased dozens of times.
