Wearing Resistance Tungsten Heavy Alloy Industry Parts WNiFe
|Place of Origin:||CHINA|
|Model Number:||WNiFe - Heavy Tungsten Alloy Pins|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 kg|
|Packaging Details:||plywood cases|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T, D/P, Western Union|
|Supply Ability:||2000 kg per month|
|Product Name:||Heavy Tungsten Alloy Pins||Grade:||WNiFe|
|Tensile Strength:||750-1400 MPa||Elongation:||<9%|
|Standards:||ASTM B777-2011||Applications:||Machined Parts|

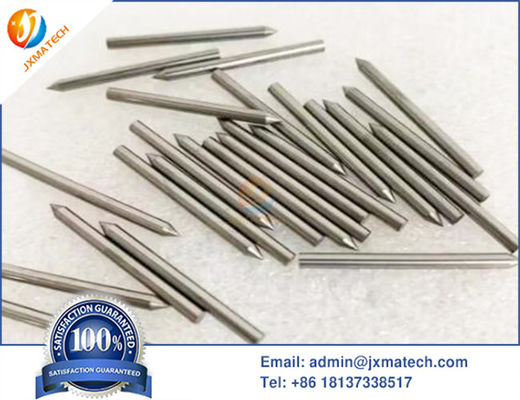

Heavy Tungsten Alloy Pins,
95W NiFe Heavy Tungsten Alloy Pins,
Wearing Resistance Heavy Tungsten Alloy Pins
Heavy tungsten alloy pins are made of tungsten base (tungsten content is generally 80% - 98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy can reach 15.20~18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because tungsten alloy weighs more than twice as much as steel.
Tungsten alloy has a series of excellent properties, high specific gravity: General specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption: higher than general lead specific gravity 30-40%, high thermal conductivity: mold is 5 times that of steel; Low thermal expansion coefficient: the capacity is only 1/2/3 of that of steel, with good conductivity, welding electricity and cutting resistance.
The common method of preparing heavy tungsten alloys is to mix the required tungsten, iron, nickel or copper powder, and then cold press the liquid phase to close to the full density. In the process of liquid phase treatment, the matrix tungsten alloy melts, and some tungsten enters the solution to form the microstructure of large tungsten particles (20-60m) dispersed in the matrix alloy.
|32 Max||30 Max||40 Min||33 Max||31 Max||40 Min||34 Max||32 Max||35 Max||33 Max|
|Tensile Strength (Max)||770 Min||900 Min||1400
|770 Min||910 Min||1440 Max||735 Min||920 Min||700 Min||850 Min|
|620 Min||620 Min||1280 Max||650 Min||650 Min||1340 Max||650 Min||650 Min||-||-|
|5 Min||15 Min||5 Min||5 Min||12 Min||3 Min||3 Min||12 Min||2 Min||6 Min
