Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3 Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3 Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3 Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3

Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3

Product Details:
Place of Origin: CHINA
Brand Name: JX
Certification: ISO 9001
Model Number: Molybdenum Tube purity 99.95% Molybdenum alloy Tzm Tube
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 500 kg per month
Contact Now

Detail Information
Product Name: Molybdenum Tube Purity 99.95% Molybdenum Alloy Tzm Tube Grade: Mo
Density: 10.2 G/cm3 Purity: >=99.95%
Tensile Strength: >320 MPa Elongation: <21%
Standard: ASTM B387-2010 Application: Semiconductor Industry
High Light:

Alloy Tzm Tube

,

Purity 99.95% Alloy Tzm Tube

,

Molybdenum Alloy Tzm Tube

Product Description

Molybdenum TubeMolybdenum Tube Molybdenum Tube purity 99.95% Molybdenum alloy Tzm Tube



Molybdenum tubes specification:
1) Purity≥99.95%
2) Density:10.2g/cm3
3) Size:As your need, OD140-180mm, ID125-135mm, Length<300mm
4) Flatness tolerance:<4um
5) Roughness:Ra1.6-Ra0.8
6) Surface: polished, ground.

1. Purity: Mo>= 99.95%
2. Standard: GB/T 4182 or ASTM
3. Property specification
1) high melting point, high strength, 2) smooth and clean surface, 3) good conductions, small linear expansion coefficient and good heat-resistance.
Molybdenum Tube Chemical composition

Content of molybdenum Content of all other elements Content of each element
≥99.95% ≤0.05% ≤0.01%

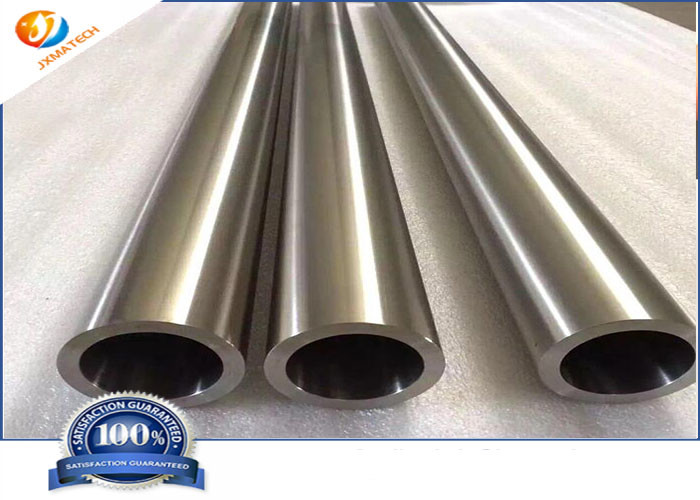

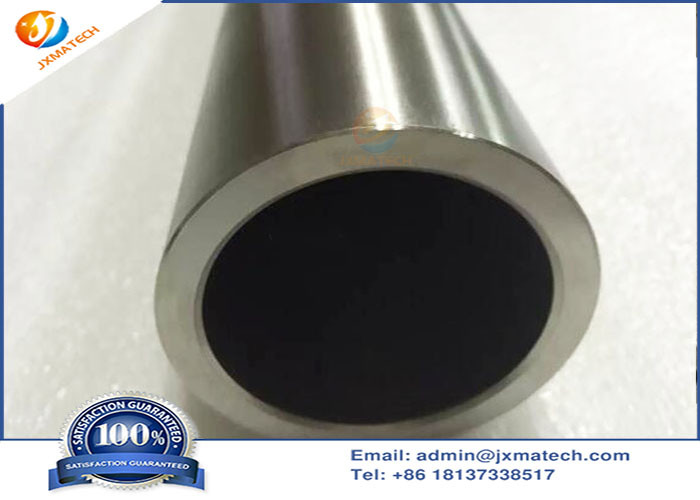

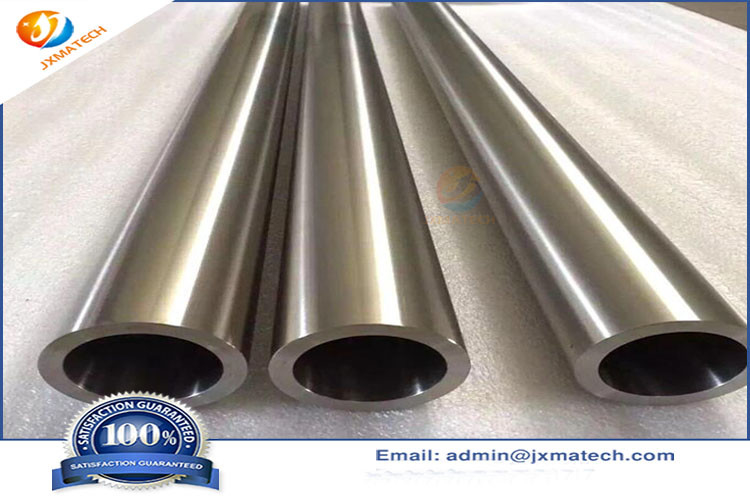

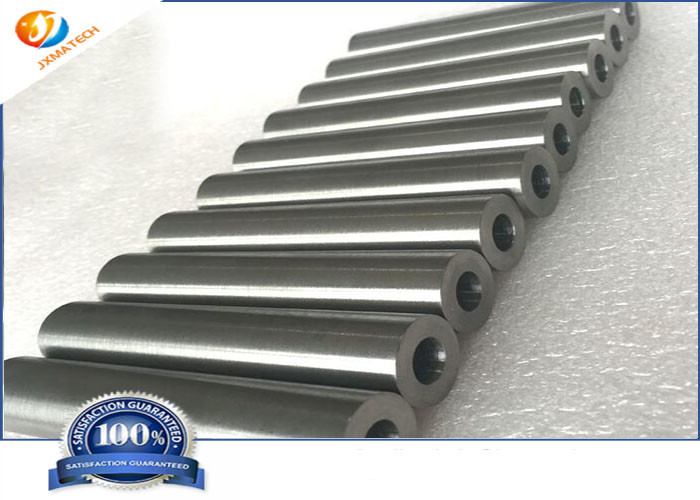

Molybdenum Tube Picture:
Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3 0Purity 99.95% Molybdenum Alloy Tzm Tube 10.2 G / Cm3 1


5. Molybdenum tube diameter:

Diameter Wall thickness
Length
30-50 2~10 <1300
50-100 3~15
100-150 3~15
150-200 5~20
200-300 8~20
300-400 8~30
400-450 8~30
450-500 8~30




6. Application of Molybdenum tube
It is mainly used in high temperature instruments, thermocouple protection tube, heat pipe, sintering pipe, protection tube, etc. and used in vacuum high temperature industry, electronic industry, sapphire thermal field and industrial production
