90WNiCu Tungsten Heavy Alloy Rings High Specific Gravity

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: 90WNiCu - Tungsten Heavy Alloy Rings
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Heavy Alloy Rings Type: 90WNiCu
Density: 16.2-18.5 G/cc Purity: 90%>=W
Tensile Strength: 730-1400 MPa Elongation: <12%
Standards: ASTM B777-2010 Applications: Machined Parts
High Light:

Tungsten Heavy Alloy Rings


90W NiCu Tungsten Heavy Alloy Rings


High Specific Gravity Tungsten Alloy Rings

Product Description

High Specific Gravity 90WNiCu Tungsten Heavy Alloy Rings

Heavy tungsten alloy ring is made of tungsten base (tungsten content is generally 80% -98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. Gravity tungsten alloys have a density of up to 15.20~18.70g/cm3, also called gravity tungsten alloys or high-density alloy materials. Because the tungsten alloy weighs more than twice as much as the steel.



Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

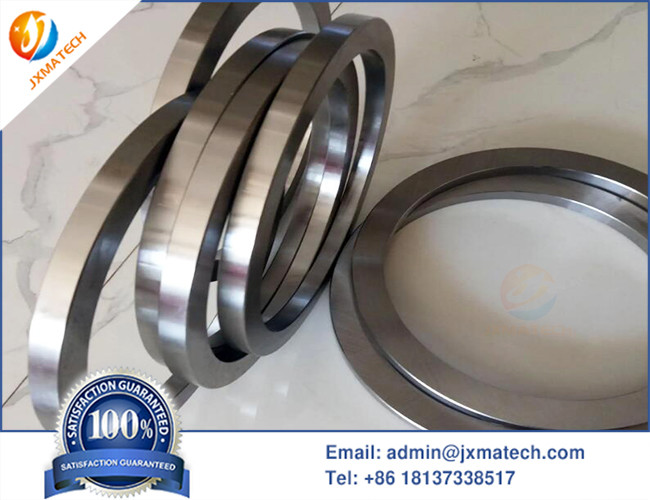

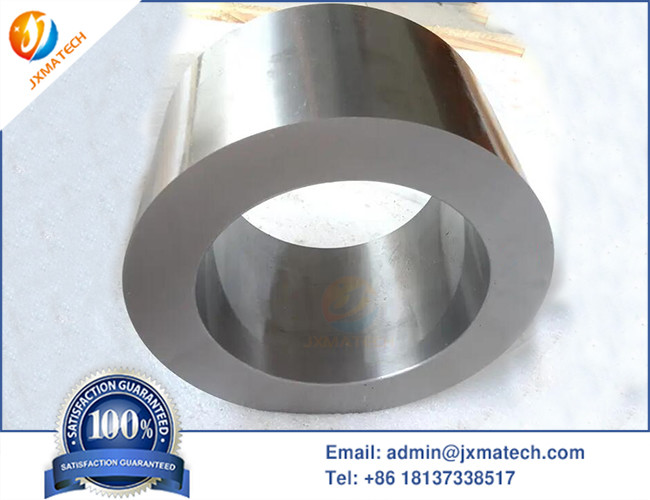

Tungsten Heavy Alloy Rings Picture:

90WNiCu Tungsten Heavy Alloy Rings High Specific Gravity 090WNiCu Tungsten Heavy Alloy Rings High Specific Gravity 1

Introduction and Feature of Tungsten Heavy Alloy Rings

  1. Tungsten alloy has a series of excellent properties, high proportion: general gravity lead 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, strong light absorption capacity: 30-40% higher than the general gravity lead, thermal conductivity: 5 times modulus steel; low thermal expansion coefficient: only 1 / 2-1 / 3 of carbon steel, with good conductivity and welding processing capacity.

  2. A common process for making heavy tungsten alloys is to mix the desired tungsten, iron, nickel, or copper powder, followed by cold pressure and liquid-phase sintering until close to full density. During the liquid phase treatment, the matrix tungsten alloy melts, and part of the tungsten enters the solution to form a microscopic tissue, making the larger tungsten particles (20-60m) dispersed in the matrix alloy.


Application of Tungsten Heavy Alloy Rings

  • The dual source range densimeter uses tungsten alloy as a shielding element to measure the oil content of the oil layer several kilometers below the surface. The instrument has the advantages of small volume, high precision, long service life and wide application.
