90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance
90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance 90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance 90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance 90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance

90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiFe - Tungsten Alloy Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Tungsten Alloy Pins Grade: 90WNiFe
Density: 18.1 G/cc Purity: 90%W
Tensile Strength: 740-1400 MPa Elongation: <10%
Standards: ASTM B777-2010 Applications: Machined Parts
High Light:

Tungsten Heavy Alloy Pins

,

Tungsten Alloy Pins With Wearing Resistance

,

90WNiFe Tungsten Alloy Pins

Product Description

90WNiFe High Hardness Tungsten Alloy Pins With Wearing Resistance

Tungsten Alloy Pins are made of tungsten base (tungsten content is generally 80% - 98%) and a small amount of nickel, iron, copper, cobalt, molybdenum, chromium and other elements. The density of high specific gravity tungsten alloy can reach 15.20 ~ 18.70g/cm3, also known as high specific gravity tungsten alloy or high density alloy material. Because the weight of tungsten alloy is more than twice that of steel.



Introduction and Feature of Tungsten Alloy Pins

  1. Tungsten alloy has a series of excellent properties, high specific gravity: General specific gravity 16.5-18.75g/cm3, high strength: tensile strength 700-1000mpa, light absorption strength: 30-40% higher than general lead specific gravity, high thermal conductivity: the mold is 5 times that of steel; Low thermal expansion coefficient: the capacity is only 1 / 2 / 3 of that of steel, and the resistance to conduction, welding and cutting is good.

  2. A common method for making heavy tungsten alloys is to mix the desired tungsten, iron, nickel or copper powders and then cold-press the liquid phase to near full density. During the liquid phase treatment, the base tungsten alloy is melted, and part of the tungsten enters the solution, forming a microstructure of large tungsten particles (20-60 m) dispersed in the base alloy.

SPECIFICATIONS of Tungsten Alloy Pins

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

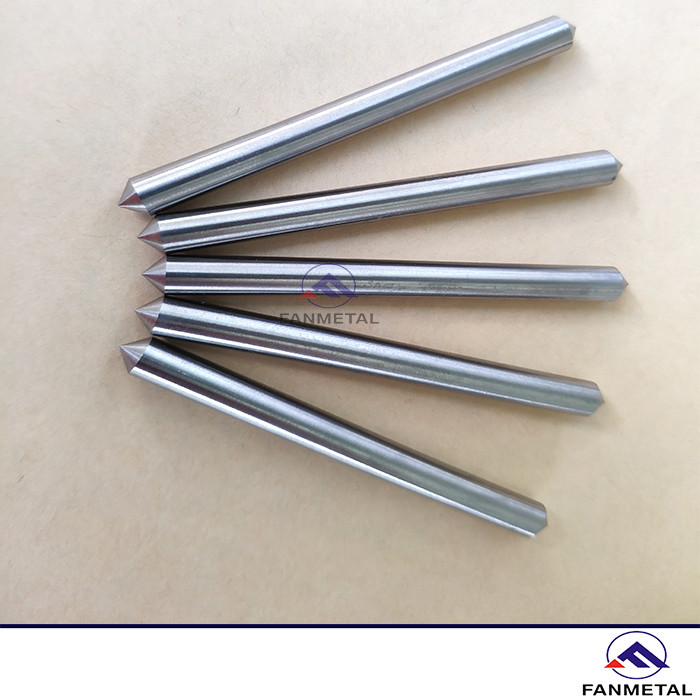

Tungsten Alloy Pins Picture:
90WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance 090WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance 190WNiFe Tungsten Heavy Alloy Pins High Hardness With Wearing Resistance 2

Application of Tungsten Alloy Pins

  • Tungsten Alloy Pins are made of high gravity tungsten alloy. The wear resistance, hardness, strength and heat resistance of the alloy are further improved, and the consistency of the products is better ensured. Because of these characteristics, tungsten iridium holes have become an important part of the high-tech crystal glass industry.
