Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Kovar Rod Kovar Alloy Kovar 4j29 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5kgs |
| Price: | US $25-100/ kg |
| Packaging Details: | Plywood case |
| Delivery Time: | 5~15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kgs/M |
|
Detail Information |
|||
| Model Number: | 4J29 Kovar | Name: | Kovar Rod Kovar Alloy Kovar 4j29 |
|---|---|---|---|
| Application: | Industry, Glass And Ceramic Sealing With Kovar Alloy | Appearance: | Bright Surface |
| Material: | FeNiCo Alloy | Shape: | Bar Flat Bar Wire Rod |
| Highlight: | ni based superalloys,nickel based superalloys |
||
Product Description
Kovar Rod is used for high-power transmitting valves, transistor leads and headers, integrated-circuit lead frames, and photography flash bulbs. UNS K94610 Werkstoff Nr 1.3981 DIN 17745 ASTM F 15 AMS 7726 Wire AMS 7727 Bars and Forgings AMS 7728 Sheet, Strip and Plate MIL-I-23011 class 1 AFNOR NF A54-301 S.E.W 385 DILVER P
Description
Kovar Rod is made up of 29% nickel, 17% cobalt, .2% silicon, .3% manganese and 53.5% iron. Kovar is known for its low coefficient of thermal expansion. Kovar end uses are usually glass sealing in the electronics industry.

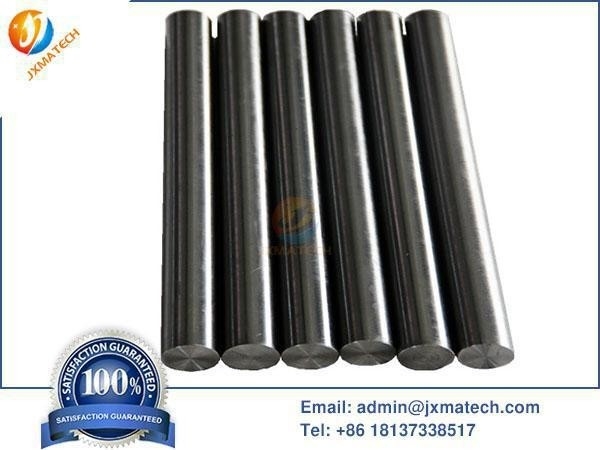

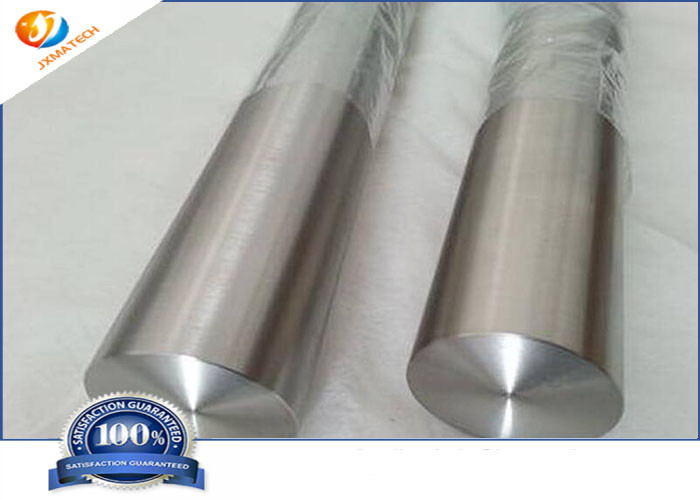

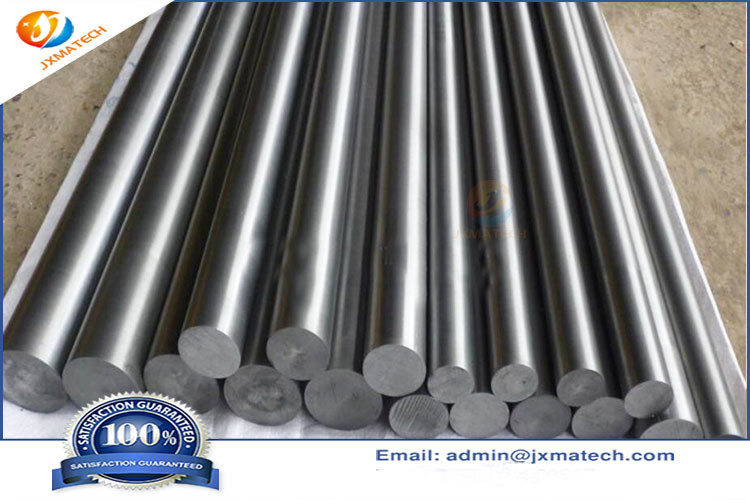

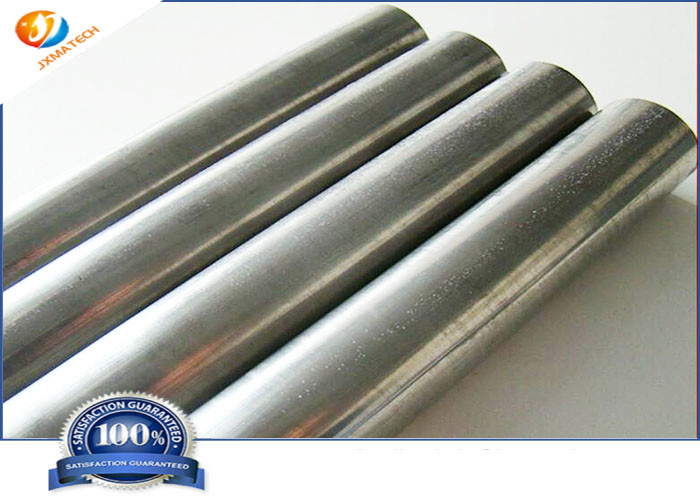

Kovar Rod Picture:
| Alloy Name | Trade Name | UNS # | British Spec | American Spec | German Spec | French Spec |
| Alloy K | Kovar Nilo K Rodar |
UNS K94610 | ASTM F15 ASTM F26 AMS 7726 AMS 7727 MIL-I-23011C Class 1 |
1.3981 | AFNOR NF A54-30 |
Material
| Russia | USA | England | Japan | Franch | Germany |
| 29HK | kovar | Nilo K | KV-1 | Dilvar P0 | Vacon 12 |
| 29HK-B | Rodar Techallony Glasseal29-17 |
Teleaseal | KV-2 KV-3 |
Dilver P1 | Silvar |
Content Composition %
| C | P | S | Mn | Si | Cu | Cr | Mo | Ni | Co | Fe |
| Less than | ||||||||||
| 0.03 | 0.02 | 0.02 | 0.5 | 0.3 | 0.2 | 0.2 | 0.2 | 28.5-29.5 | 16.8-17.8 | Rest |
Physical properties
| Density | g/cm3 | 8.25 |
| Curie Point | ℃ | 430 |
| Resistivity | ? m | 0.48 |
| Tensile strength Mpa | Cold state | |
| Annealing | 520 | |
| Yield strength Mpa | Cold state | |
| Annealing | 330 | |
| Elongation % | Cold state | |
| annealing | 30 |
| Type | Size/mm | Deliver State |
| Bar | 5.0-8.0 | Cold Drawn |
| 8.0-30.0 | Hot rolling | |
| 30.0-180.0 | H |
