Invar 36 bar UNSK93600 ASTM F1684 Nilo 36 wire low expansion coefficients

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Invar 36 Bar
Payment & Shipping Terms:
Minimum Order Quantity: 10KGS
Price: 15~70USD/kg
Packaging Details: Plywood Case
Delivery Time: 10~25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: 4J36 / Fe-Ni36 /1.3912, Ni36 /UNS K93601 Standard: ASTM F1684 / AMS L-23011
Surface: Pickled , Polished Characteristic: Low Expansion Alloys
Heat Treatment: Solution Annealed Density: 8.05g/cm3
High Light:

ni based alloys


nickel based superalloys

Product Description

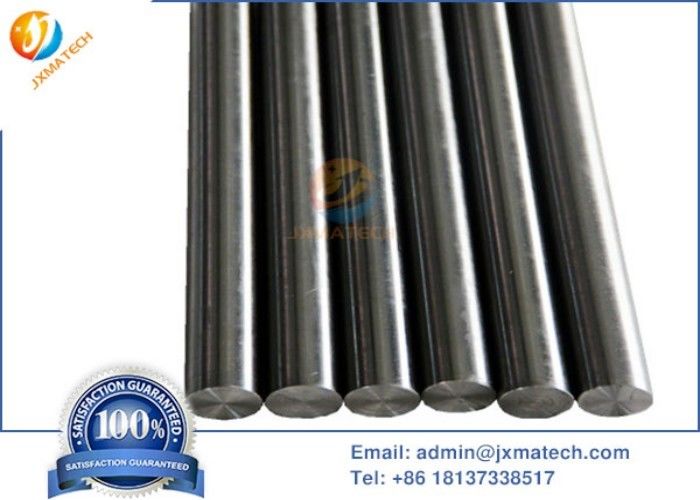

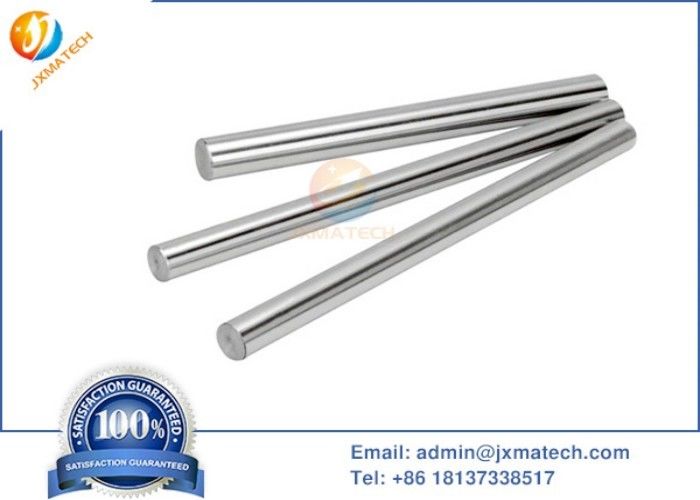

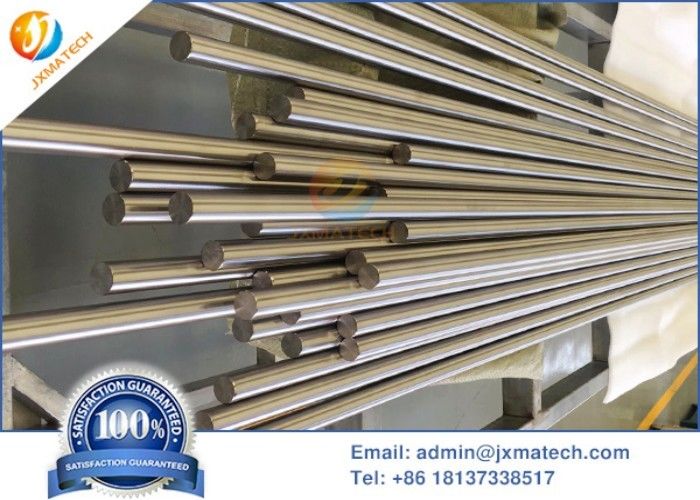

Invar 36 bar

4J36 (China), Fe-Ni36 (France), 1.3912, Ni36 (Germany), X1NiCrMoCu, N 25-20-7 (UK) Invar 36, UNSK93600 thermostat alloy, UNSK93601 pressure vessel sheet (USA) , AMS l-23011 CL7MIL l-23011 CL7UNS K93602/03


Alloy 36 (Invar) / K93603 / ASTM F1684 Widely known under several trades names such as Invar* and Nilo 36**, this grade is a 36% nickel-iron alloy. It exhibits a near zero rate of thermal expansion from around 100oC up to 200oC. This is around a tenth of the expansion rate of carbon steels. Alloy 36 also demonstrates a high retention of strength and toughness at cryogenic temperatures, making it suitable for a variety of low temperature or low expansion applications. The alloy is ideally suited to areas where dimensional changes due to temperature must be minimal, such as tooling for aerospace composites, radio and electronic devices and structural members in precision equipment such as lasers, measuring devices, thermostats and cryogenic instrumentation. Alloy 36 can also be utilised in combination with a high expansion material to crate mechanical movement with temperature in thermomechanical controls and switchgear.



Physical properties:

Proportion: 8.05

Density: 0.291lb/in3

Average specific heat: 0.1230 Btu/lb/°F

Average thermal expansion coefficient:

200°F 0.720 X 10-6 in/in/°F

300°F 1.17 X 10-6 in/in/°F

500°F 2.32 X 10-6 in/in/°F

700°F 4.22 X 10-6 in/in/°F


Chemicals Content:


Russia USA England Japan Franch Germany
36H Invar 36 Cactus LE Invar Standard Vacodil36 Nilo36

Content Composition %

C Si P S Mn Ni Fe
Less than%
0.05 0.30 0.020 0.020 0.20-0.60 35.0-37.0 Rest


Invar 36 bar UNSK93600 ASTM F1684 Nilo 36 wire low expansion coefficients 0
