Name: Astm B760-07 Tungsten Alloy Products Sheet With Cleaned / Ground Finished Surface
Brand: JINXING
SKU: Pure Tungsten
Price: 30 USD
Availability: InStock
Rating: 4.9 (194 reviews)

Astm B760-07 Tungsten Alloy Products Sheet With Cleaned / Ground Finished Surface

Product Details:

Place of Origin:

China

Brand Name:

JINXING

Certification:

ISO 9001

Model Number:

Pure Tungsten

Payment & Shipping Terms:

Minimum Order Quantity:

5kg

Price:

30~150USD/kg

Packaging Details:

Plywood Case

Delivery Time:

10~25 work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Supply Ability:

10000kgs/M

Detail Information
Material:	Tungsten	Purity:	99.95%
Surface:	Cleaned , Ground Finished	Density:	19.25g/cm3
Process:	Hot Rolling	Melting Point‎:	3410 °C
Standard:	ASTM B760 - 07	Type:	Power Metallurgy
High Light:	tungsten alloy plate , machinable tungsten rod

Product Description

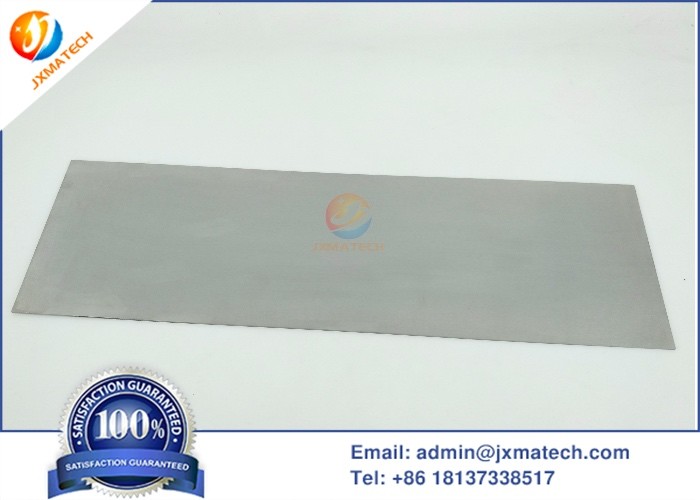

Tungsten Sheet ASTM B760 - 07 Fine Grain Purity 99.95% Cleaned , Ground finished

Tungsten sheet with hot rolling process purity 99.95% min , Suitable for processing ion implantation parts , For making electric light source parts and electric vacuum devices , Heat shield for heating tungsten boat and high temperature furnace , Used for tungsten sputtering targets .

Description

Specifications:
1) DesignationW1 (W 99.95% min)
2) Application: the hot and cold rolled products are produced by advanced
rolling technology. Used in electro-vacuum, lighting, and electronics
industries.

3) Hot rolled
a) Thickness: 1.0-4.0mm
b) Width: 500mm max

More application:

Suitable for processing ion implantation parts

For making electric light source parts and electric vacuum devices

Heat shield for heating tungsten boat and high temperature furnace

Used for tungsten sputtering targets


Material Name	Material Brand		Chemical Compostion (wt%)	Material Status	Equivalent to Plansee Brand
Pure W	PW		> 99.95%	Sheet, Rod, Wire	W
Pure W	HPW		> 99.995%	Sheet, Rod, Wire
Doped W	NS-W	NS-W91	65 - 75 ppm K	Rod, Wire	WVM
		NS-W61	65 - 75 ppm K	Rod, Wire
		NS-W31	65 - 75 ppm K	Rod, Wire
		NS-W41	30 - 70 ppm K	Rod, Wire
Fine Grain W	WKA		15 - 40 ppm K	Sheet, Rod, Wire	WVMW and S-WVMW

We provide tungsten rolling products (plate, sheet, disc, foil), tungsten drawing and forging (tungsten block, rod, bar, wire), tungsten machined parts (tungsten crucible, tungsten heater, tungsten furnace system, tailor-made tugnsten), tungsten wire mesh. Except the shaped and machined tungsten products, our specialty tungsten product is tungsten granules (broken by forged tungsten), porous tungsten (low temperature sintered tungsten). Please send us your request to admin@jxmatech.com

Astm B760-07 Tungsten Alloy Products Sheet With Cleaned / Ground Finished Surface 0

Astm B760-07 Tungsten Alloy Products Sheet With Cleaned / Ground Finished Surface 1

Tag:

Astm B760-07 Tungsten Alloy Products Sheet With Cleaned / Ground Finished Surface

tungsten alloy plate

machinable tungsten rod

Tungsten Sheet ASTM B760 - 07 Fine Grain Purity 99.95% Cleaned , Ground finished

pure tungsten rod

machinable tungsten rod

tungsten alloy plate

JINXING MATECH is an expert provider on the metal solution. Especially on the products such as Tungsten Alloy , Tungsten copper , Titanium , Zirconium, Vanadium, Hafnium, Sputtering target , Nobel metal etc,
