99.5% High Purity Zirconium Sputtering Target For Pvd Coating System

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium Sputtering Target
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 20~100USD/kg
Packaging Details: Plywood case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: Zirconium Zr702 Process: Forged
Size: Customized Application: PVD Coating, Decorative Coating
Density: 6.506g/cm3 Shape: Round , Plate , Tube Sputtering Target
Grain Size: Fine Grain Size Purity: 99.5% , 99.95%
High Light:

Pvd Coating Zirconium Sputtering Target

,

99.5% High Purity Zirconium Sputtering Target

,

Forged Process Sputtering Target

Product Description

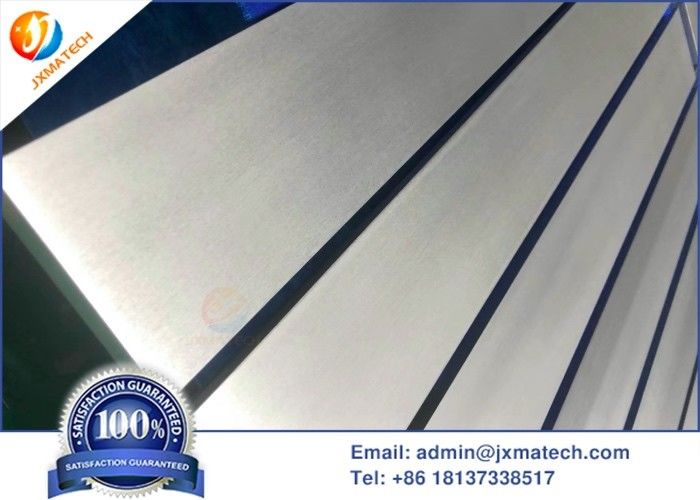

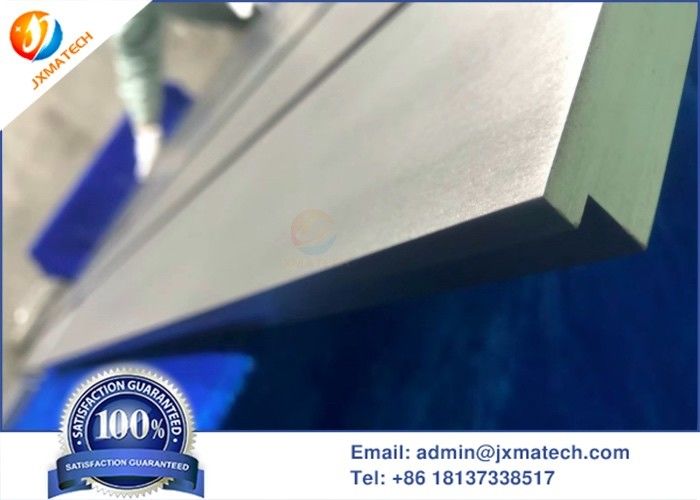

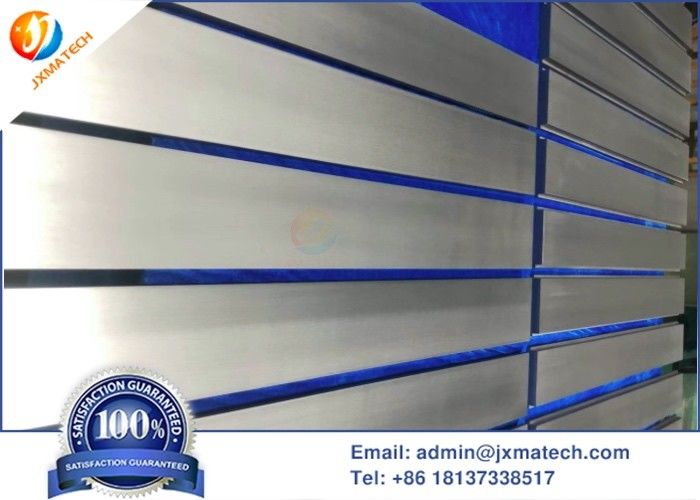

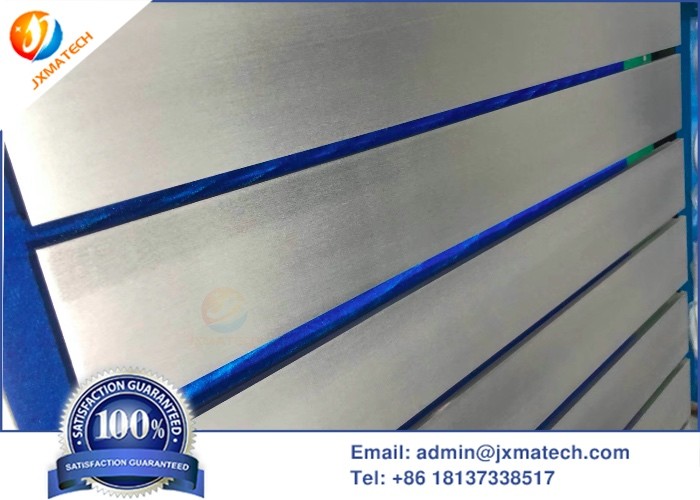

Zirconium Planar Sputtering Target

Zirconium Planar Sputtering Target for PVD coating systerm, coating target, multi-arc target, sputtering target, vacuum coating target.



  • Description

Zirconium Sputtering Target, Zirconium Target are available in varying sizes



Grades: R60702, 99.2%min
  Purity: 99.5%
  Purity: 99.95% Hf<300ppm or Hf<4.5%)

Shape: Round Shape , Tube Shape and Plate Shape.



Sizes:



Plate sputtering targets:



Thickness: 0.04 to 1.40" (1.0 to 35mm).

Width up to 20"(50 to 500mm).

Length: 3.9" to 6.56 feet( 100-2000mm)

other sizes as requested.



Cylinder sputtering targets:



3.94 Dia. x 1.58"(100 Dia. x 40mm)

2.56 Dia. x 1.58" (65 Dia. x 40mm)

or 63*32mm other sizes as requested.



Tube sputtering targets:



2.76 OD x 0.28 WT x 39.4L (70 OD x 7 WT x 1000mm L)

3.46 OD x 0.39 WT x 48.4”L (88 OD x 10 WT x 1230mm L)

other sizes as requested.



99.5% High Purity Zirconium Sputtering Target For Pvd Coating System 0
