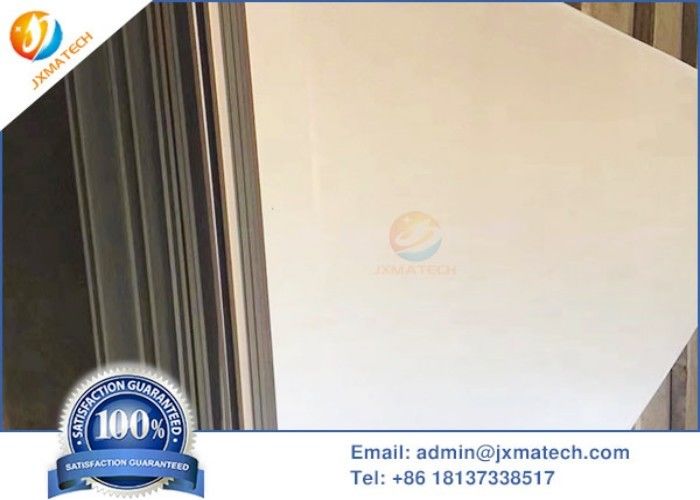

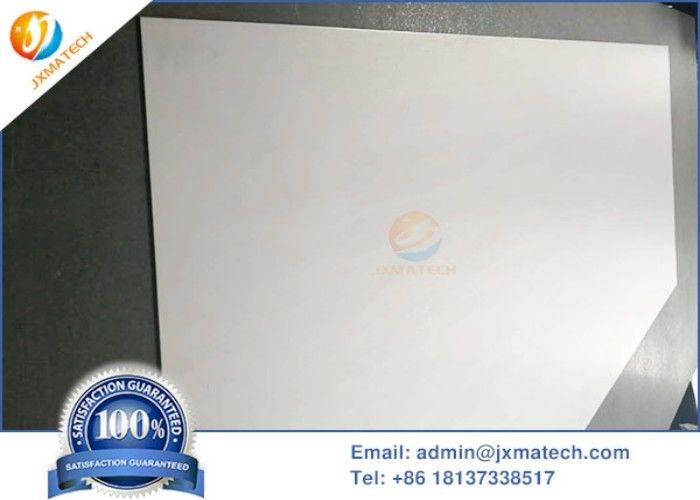

Glass Sealing Nickel Based Alloys 42 Sheet Plate With Stable Performance

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Alloy 42 Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: 15~100USD
Packaging Details: Plywood case
Delivery Time: 15~30days
Payment Terms: L/C, D/P, D/A, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Alloy 42 Surface: Bright
Yield Strength: 300 Mpa Min Tensile Strength: 500 Mpan Min
Elongation: 30% Min Hardness HB: ≤130
High Light:

ni based alloys

,

nickel based superalloys

Product Description

Alloy 42 Sheet Plate NILO alloy 42 electrical glass or ceramics

Alloy 42 Sheet Nilo 42 (UNS K94100 /ASTM F30 / 1.3917)

Grade: 4J42|Nilo 42|FeNi42|K94100|Alloy 42



Alloy 42 variety specification and supply status: the variety includes bar, pipe, plate, strip and wire.


Alloy 42 smelting and casting process: smelting with non vacuum induction furnace, vacuum induction furnace or electric arc furnace.


Application and special requirements of alloy 42: Alloy 42 is a typical brand of glass sealing alloy, which has been used in aviation factory for a long time and has stable performance.


Alloy 42 is mainly used for sealing with soft glass, ceramics, etc. to make leads, frames and sealing plugs for electronic tubes, transistors and integrated circuits.



Heat treatment system of expansion coefficient performance test sample specified in alloy 42 heat treatment system standard: heat the sample to 900 ℃ ± 20 ℃ in hydrogen atmosphere for 1h, and cool it to below 200 ℃ at a speed of no more than 5 ℃ / min [4].







Grade Relative Grade
  Russia U.S.A. U.K.   France Germany
  42 X 6 42Ni-6Cr
Carpenter426
Sylvania4
Sealmet 4
-   ASV(426)
Ni42Cr6
Vacovit426
(NiCr426)
  47 - -   461 -
  49 Carpenter 456 -   FeNi47Cr6 Vacovit 465
Alloy 42 42 Glass Sealing 42
Uniseal 42
Nilo42   N42 Vacodil 42
Nilo42
Alloy 45 46 Niromet 46
Ferrovac 46 Ni
Nilo45   Fe-Ni42 Vacodil 46
Alloy 52 50 FeNi50 Nilo51   N50 Vacovit 500
  52
50-
Glass Sealing 52
Niloy 52
-   N52 Vacovit 520
FeNi52
  - - -   N54 Vacovit 540
FeNi54



In application, the selected sealing material should match the expansion coefficient of the alloy.

The grain size should be controlled during heat treatment to ensure that the material has good deep drawing properties.

When forging and rolling materials are used, the air tightness of materials shall be strictly inspected
