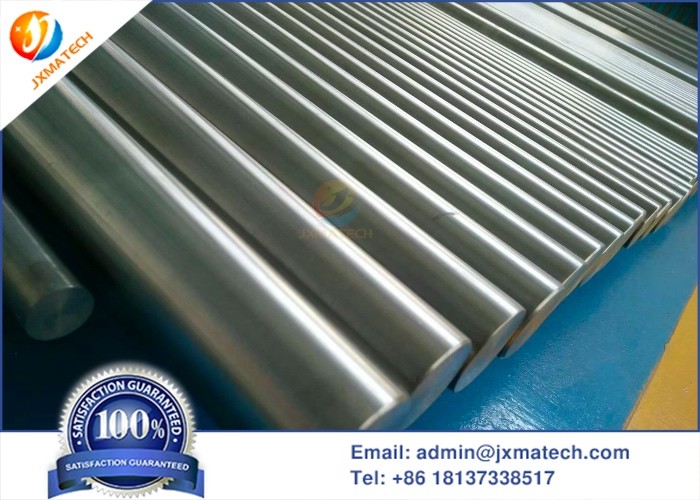

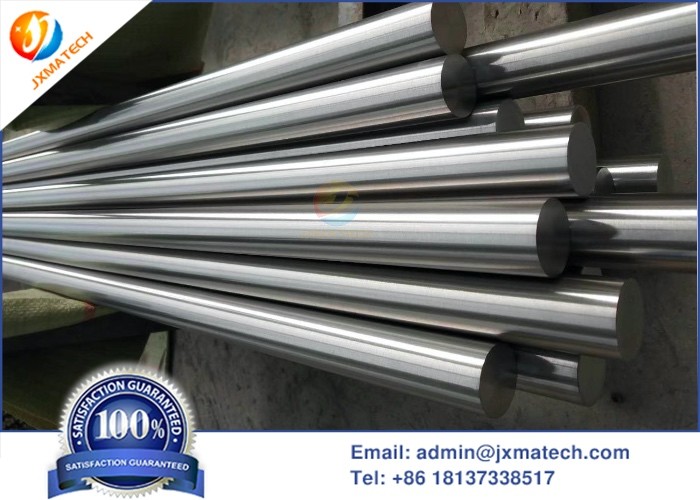

Oxidation Resistant Nickel Based Alloys Hastelloy N Rod With Good Weldability
Oxidation Resistant Nickel Based Alloys Hastelloy N Rod With Good Weldability
Oxidation Resistant Nickel Based Alloys Hastelloy N Rod With Good Weldability Oxidation Resistant Nickel Based Alloys Hastelloy N Rod With Good Weldability Oxidation Resistant Nickel Based Alloys Hastelloy N Rod With Good Weldability

Oxidation Resistant Nickel Based Alloys Hastelloy N Rod With Good Weldability

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Hastelloy N Rod
Payment & Shipping Terms:
Minimum Order Quantity: 100kgs
Price: 20~100USD
Packaging Details: Plywood case
Delivery Time: 30~60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5~10 ton/M
Contact Now

Detail Information
Material: Hastelloy N Density: 8.78g/cm3
Surface: Acid Pickling, Sand Blasting Standard: ASTM/ AMS
Melt Range: 1300-1400℃ Main Application: Molten Fluoride Vessel
High Light:

ni based superalloys

,

ni based alloys

Product Description

Hastelloy N Rod UNS N10003 ASTM B 573 solution annealing oxidation resistance

Hastelloy N / UNS N10003 Hastelloy N rod has excellent oxidation resistance to hot fluoride salts in the temperature range of 704 to 871℃. It has good oxidation resistance in air. It also has good fabricability and good resistance to aging and embrittlement ASTMB 573, ASTMB 434, ASTMB 906, ASTMB 366



Hastelloy N is a nickel base superalloy composed of nickel, molybdenum, chromium and other elements, with a nickel content of about 72%. Hastelloy N has good oxidation resistance, and its melting temperature range is 1300-1600 ° f (704-871 ° C). In more than two years, the n value of Hastelloy n will relate to the most useful fluoride in high temperature environment. Hastelloy N alloy has good oxidation resistance in air. Metallographic examination showed that the elements in alloy n remained in the range of 1100 to 1600 ° in solid solution, and there was no embrittlement tendency in tensile test.


Hastelloy N has good weldability and can be easily welded. The hot working range of the alloy is 1600 and 2150 ° f (871 to 1177 ℃), and it has been successfully extruded and further processed into high-quality seamless steel tubes for manufacturing, welding and drawing. After solution heat treatment, Hastelloy n alloy parts can be hot processed or cold processed.



Chemical Content

Element Ni Mo Cr Fe C Mn Si P S W Co Cu
Min Rest 15 6 - 0.04 - - - - - - -
Max 18 8 5 0.08 1 1 0.015 0.02 0.5 0.2 0.35




Form ASTM
Rod B 573
Plate, sheet and strip B 434, B 906
Welding fitting B 366



  • Bar
  • Wire
  • Sheet
  • Plate
  • Forgings
  • Pipe fittings
  • Flanges
  • Seamless & Welded pipe
  • Seamless Tube & Welded tube
  • Weld Wire

Solution heat-treatment is recommended after hot or cold working of HASTELLOY® N alloy parts. For sheet and plate, this is accomplished by soaking at 2150°F (1177°C) [sections up to 1/4 inch thick] and then cooling rapidly in air, or at 2165°F (1185°C) [sections 1/4 inch and thicker] followed by waterquenching.



Variety specification and supply status of Hastelloy N:


1. Variety classification: can supply various specifications of seamless pipe, welded pipe, plate, bar, forging, ring, wire and supporting welding materials.

2. Delivery status: seamless pipe: solid solution + acid white, length can be fixed; plate: solid solution, acid pickling, edge cutting; welded pipe: solid solution acid white + RT% flaw detection, forging: annealing + turning; bar is in forging and rolling status, surface polishing or turning; strip is delivered in cold rolling, solution soft status, and oxide skin removal; wire is delivered in solution acid wash plate or straight strip, solution straight strip and fine polishing status.
