Astm B622 Hastelloy C22 Pipe Fittings , Corrosion Resistant Pipe Flanges And Fittings

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Hastelloy C22 Pipe fittings
Payment & Shipping Terms:
Minimum Order Quantity: 30kgs
Price: 30~150USD/kg
Packaging Details: Plywood case
Delivery Time: 25~60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Hastelloy C22, UNS N06022, DIN W.Nr. 2.4602 Melting Range: 1351-1387
Standard: ASTM B622 Surface: Pickled , Polished
Density: 8.61g/cm3 Process: Seamless Or Weled
High Light:

reducing tee pipe fitting

,

hastelloy c22 pipe fittings

Product Description

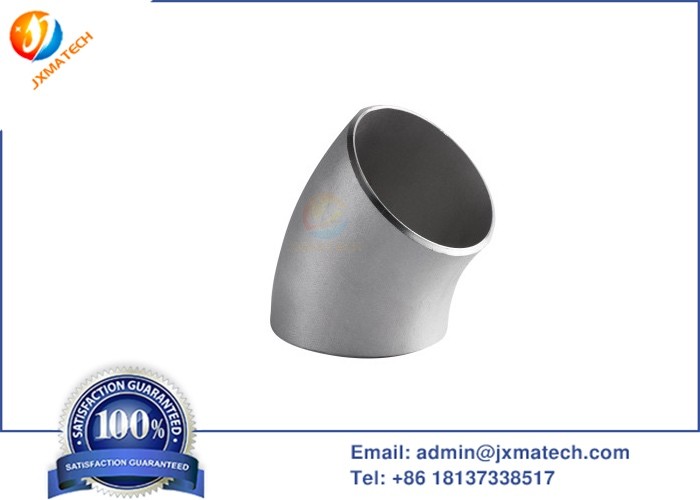

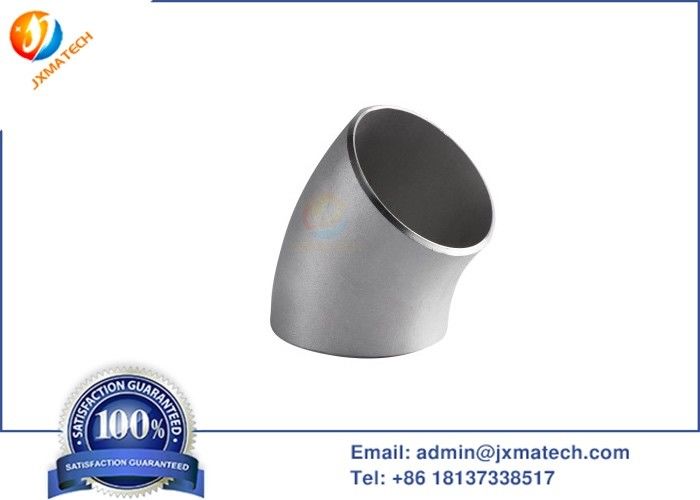

Hastelloy C22 Pipe fittings Seamless/Welded ASME/ANSI B16.9 Elbow,Tee, Reducer

Hastelloy C22 is more resistant to local corrosion than Hastelloy 276, which can be understood as the upgraded version of alloy 276

  • Description

Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602

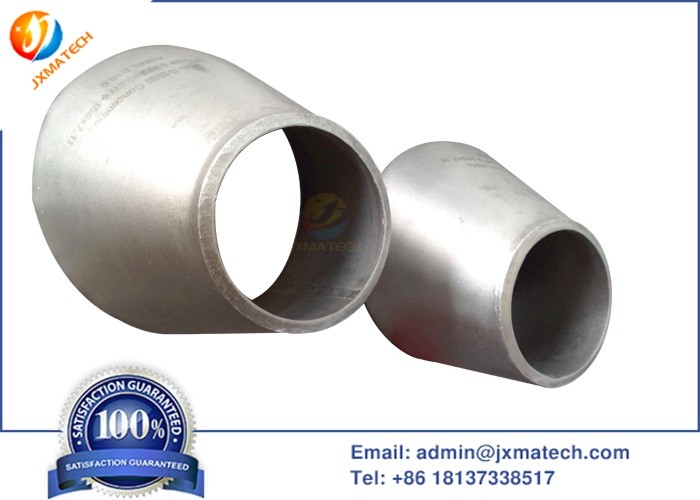

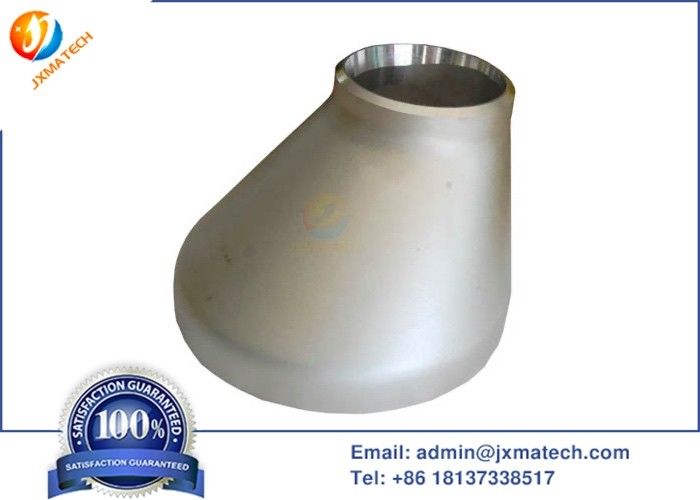

Hastelloy C 22 Pipe fittings ( Short Radius Elbows , Long Radius Elbows , Concentric Reducers , Eccentric Reducers , Stub Ends , End Caps , Equal Tees , Weldolets , Pipe Nipples .) ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79 , Type Seamless / Welded / Fabricated . Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602

  • Hastelloy C22 Bar
  • Hastelloy C22 Wire
  • Hastelloy C22 Sheet
  • Hastelloy C22 Plate
  • Hastelloy C22 Forgings
  • Hastelloy C22 Pipe fittings
  • Hastelloy C22 Flanges
  • Hastelloy C22 Seamless & Welded pipe
  • Hastelloy C22 Seamless Tube & Welded tube
  • Hastelloy C22 Weld Wire

Hastelloy Alloy C-22 Pipe Fittings Specification

Specifications ASTM B366 / ASME SB366

Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79

Size 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type Seamless / Welded / Fabricated

Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Grade Hastelloy C276 Pipe Fittings UNS (N10276), DIN (2.4819)

Hastelloy C22 Tube Chemical composition :

% Ni Cr Mo Fe W Co C Mn Si P S V
min balance 20 12.5 2 2.5
max 22.5 14.5 6 3.5 2.5 0.015 0.5 0.08 0.02 0.02 0.35



Density 8.69 g/cm3
Melting range 1325-1370



Application:

  • Marine
  • Power
  • Chemical processing
  • Pollution control
  • Paper processing
  • Waste disposal

Available Products and Specifications

INCONEL alloy 22 is designated as UNS N06022 and Werkstoff Nr. 2.4602. Standard product forms include sheet, strip, plate, round bar, flat bar, forging stock, hexagon, and wire. The products are available in a wide range of sizes.

Rod, Bar, Wire and Forging Stock -ASTM B 462 (Rod, Bar and Forging Stock), ASTM B 564 & ASME SB 564 (Forgings), ASTM B 574 & ASME SB 574 (Rod, Bar and Wire), ASME Code Case 2226, ASME Code Case N-621, ISO 9723, ISO 9724, DIN 17752 (Rod & Bar), DIN 17753 (Wire), DIN 17754 (Forgings)

Plate, Sheet and Strip - ASTM B 575/B 906 & ASME SB 575/SB 906, ASME Code Case 2226, ASME Code Case N-621, ISO 6208, DIN 17750

Pipe and Tube - ASTM B 619/B 775 & ASME SB 619/SB 775 (Welded Pipe), ASTM B 622/B 829 & ASME SB 622/SB 829 (Seamless Tube), ASTM B 626/B 751 & ASME SB 626/SB 751 (Welded Tube), ASME Code Case 2226, ASME Code Case N-621, ISO 6207, DIN 17751

Welding Products - INCONEL Filler Metal 622 - AWS A5.14 / ERNiCrMo-10, INCONEL Welding Electrode 622 - AWS A5.11 / ENiCrMo-10

Other Product Forms - ASTM B 366 & ASME SB-366 (Fittings)

Composition - DIN 17744



This alloy has the following properties:

Hastelloy C22 alloy has good resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent anti-oxidation ability in water medium, including wet chlorine, nitric acid or mixed acid containing oxidizing acid of chloride ion. At the same time, Hastelloy C22 alloy also has the ideal resistance to the reduction and oxidation environment encountered in the process. Depending on this universal performance, it can be used in some headache environments, or in a variety of production purpose factories. Hastelloy C22 alloy has abnormal resistance to various chemical environments, including strong oxidizing substances, such as ferric chloride, copper chloride, chlorine, thermal pollution solution (organic and inorganic), formic acid, acetic acid, acetic anhydride, sea water and salt solution, etc. Hastelloy C22 alloy has the ability to resist the formation of grain boundary precipitation in the heat affected zone of welding, so that it can also adapt to many chemical process applications in the welding state.



Astm B622 Hastelloy C22 Pipe Fittings , Corrosion Resistant Pipe Flanges And Fittings 0



Astm B622 Hastelloy C22 Pipe Fittings , Corrosion Resistant Pipe Flanges And Fittings 1
