Alloy Inconel 625 Round Bar , Inconel 625 Welding Rod For Chemical Process Industry

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Inconel 625 Rod
Payment & Shipping Terms:
Minimum Order Quantity: 5kg
Price: 10~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50tons/M

Detail Information

Material: Inconel 625 Rod Standard: ASTM B446, AMS 5666
Surface: Pickled , Polished Process: Forge, Drawing
Density: 8.4 G/cm3 Melt Range: 1290-1350℃
High Light:

ni based alloys

,

nickel based superalloys

Product Description

Inconel 625 Rod UNS N06625 / DIN W. Nr. 2.4856 Round ,Square ,Hexagon



Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856

Inconel 625 Rod, Inconel 625 Bar ,Inconel 625 Threaded Bar , Inconel 625 Triangular Bar , Inconel 625 Square Bar

Inconel 625 exhibits excellent corrosion resistance in many media. Excellent resistance to pitting, crevice corrosion, intergranular corrosion and erosion in chloride media.



Inconel 625 Rod shows excellent corrosion resistance in many media. Excellent resistance to pitting, crevice corrosion, intergranular corrosion and erosion in chloride media



  • Inconel 625 Bar
  • Inconel 625 Wire
  • Inconel 625 Sheet
  • Inconel 625 Plate
  • Inconel 625 Forgings
  • Inconel 625 Pipe fittings
  • Inconel 625 Flanges
  • Inconel 625 Seamless & Welded pipe
  • Inconel 625 Seamless Tube & Welded tube
  • Inconel 625 Welding wire



Form ASTM
Rod and bar ASTM B446
Plate, sheet and strip ASTM B443, ASTM B906
Seamless pipe and tube ASTM B444, ASTM B829
Welded pipe ASTM B705, ASTM B775
Welded tube ASTM B704, ASTM B751



Inconel 625 Rod Chemical composition:

% Ni Cr Mo Fe C Mn Si P S Co Nb+Ta Al Ti
min 58 20 8               3.15
max   23 10 5 0.1 0.5 0.5 0.015 0.015 1 4.15 0.4 0.4



Density 8.44 g/cm3
Melting range 1290-1350



This Inconel 625 Rod has the following characteristics:
1.Excellent corrosion resistance to various corrosive media in oxidizing and reducing environment
2.Excellent resistance to pitting and crevice corrosion, and will not cause stress corrosion cracking due to chloride
3. Excellent resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid and mixed acids of sulfuric acid and hydrochloric acid, etc.
4.Excellent resistance to various inorganic acid mixed solutions
5. When the temperature reaches 40 ℃, it can show good corrosion resistance in various concentrations of hydrochloric acid solution.
6.Good processability and weldability, no cracking sensitivity after welding
7. Manufacturing certification of pressure vessels with wall temperature of -196 ~ 450 ℃
8. Certified by the American Society of Corrosion Engineers NACE standard (MR-01-75) to meet the highest standard level VII for use in acid gas environments



Inconel 625 Rod application are:
The softened and annealed low carbon alloy 625 is widely used in the chemical process industry. Its good corrosion resistance and high strength make it a thinner structural component. 625 alloy can be used in places that are exposed to seawater and subjected to high mechanical stress. Typical application areas:
1. Chlorinated organic chemical process components, especially when using acid chloride catalysts
2. digesters and bleaching tanks for the pulp and paper industry
3. Absorption tower, reheater, flue gas inlet baffle, fan (wet), agitator, deflector and flue in the flue gas desulfurization system
4. Equipment and components used in the manufacture of sour gas environments
5. Acid and acetic anhydride reaction generator
6. Sulfuric acid condenser

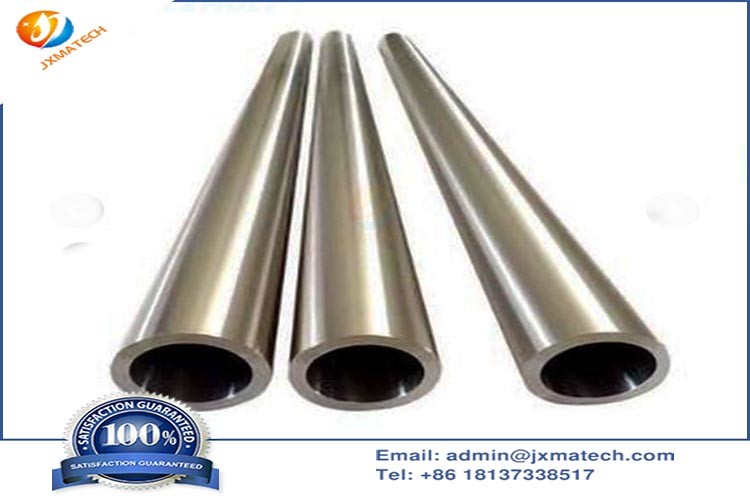

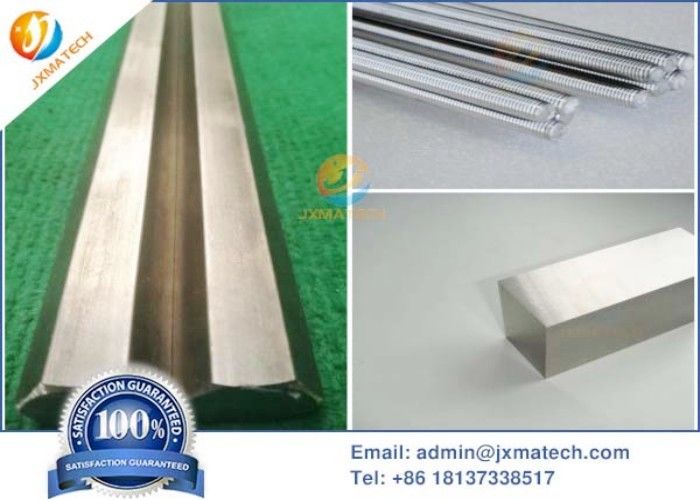

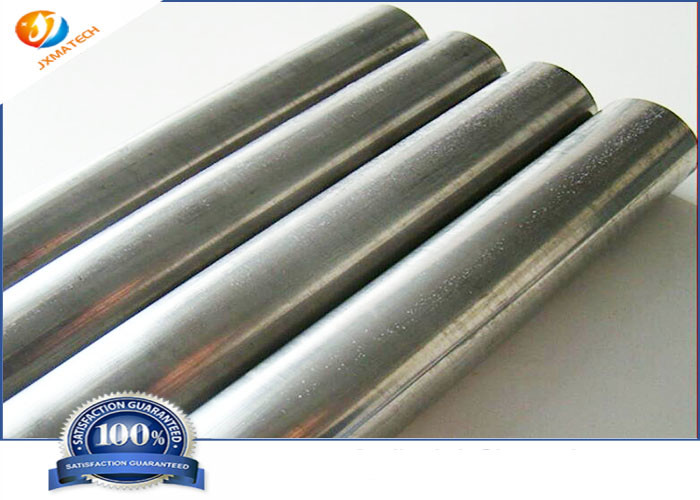

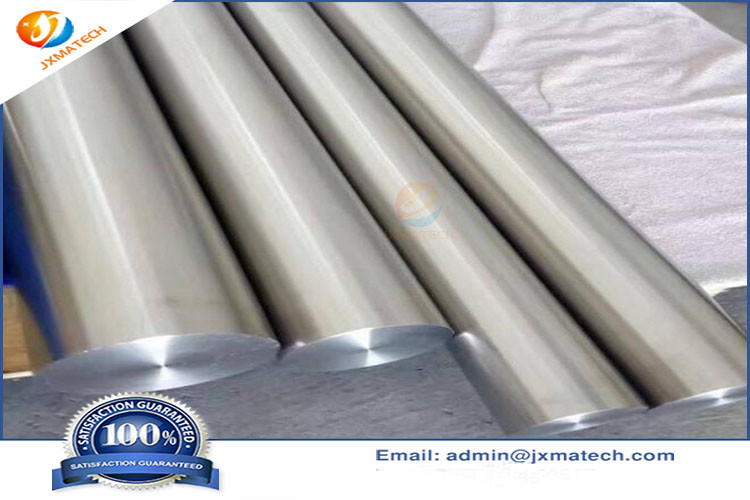

Inconel 625 Rod Picture:


Alloy Inconel 625 Round Bar , Inconel 625 Welding Rod For Chemical Process Industry 0
