ASTM F1684 Pickled Polished Invar 36 Nickel Based Alloys

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Invar 36 sheet, Invar 36 Plate
Payment & Shipping Terms:
Minimum Order Quantity: 10KGS
Packaging Details: Plywood Case
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Invar 36, Nilo 36, 1.3912, Fe-Ni36, K93603 Standard: ASTM F1684
Surface: Pickled , Polished Characteristic: Low Expansion Alloys
Heat Treatment: Solution Annealed Density: 8.05g/cm3
High Light:

Invar 36 Nickel Based Alloys

,

ASTM F1684 Nickel Based Alloys

,

Pickled Polished Nickel Based Alloys

Product Description

Invar 36/4J36 sheet/plate precision alloy , invar 36 plate invar 36 sheet



Invar 36 has a low coefficient of expansion from cryogenic temperatures to about 260°C. It is also retains good strength and toughness at cryogenic temperatures.

Invar 36 is used to making aerospace composites, standards of length, measuring devices, thermostat rods, laser components, clock pendulums and tanks and piping for the storage and transportation of liquefied gases.

Features: Invar 36 is a 36% nickel-iron alloy notable for its uniquely low coefficient of thermal expansion which is roughly one-tenth that of carbon steel in the range from room temperature to around 200ºC. It also retains good strength and toughness at cryogenic temperatures. It can be hot and cold formed and machined using processes similar to austenitic stainless steels

Applications

Commonly employed in electronic equipment such as radios, laser systems and thermostats.

Density: 0.293

Density: 8.11g/cm3

Coefficient of Expansion: 1.5um/m'C(at 20-100'C) 2.6um/m'C(at 20-200'C)

Thermal Conductivity: 10.0

Melting Point: 1430'C

Inflection Point: 220'C

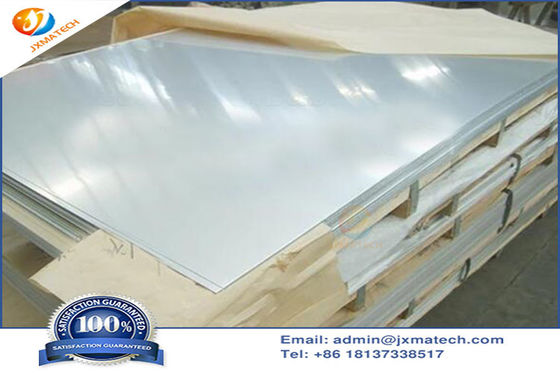

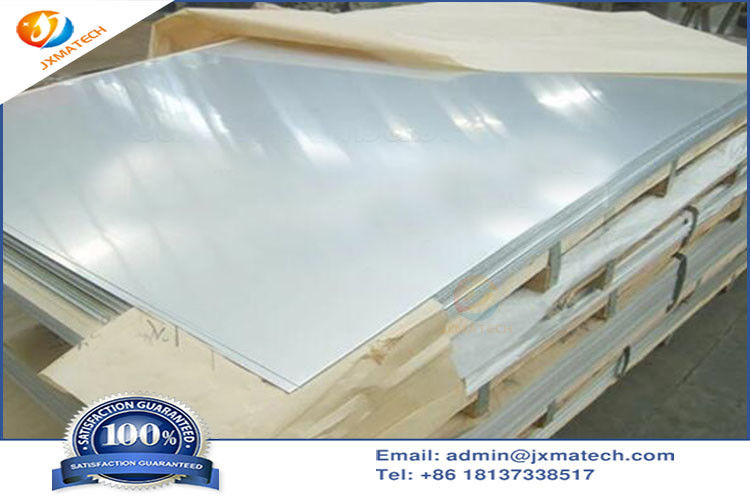

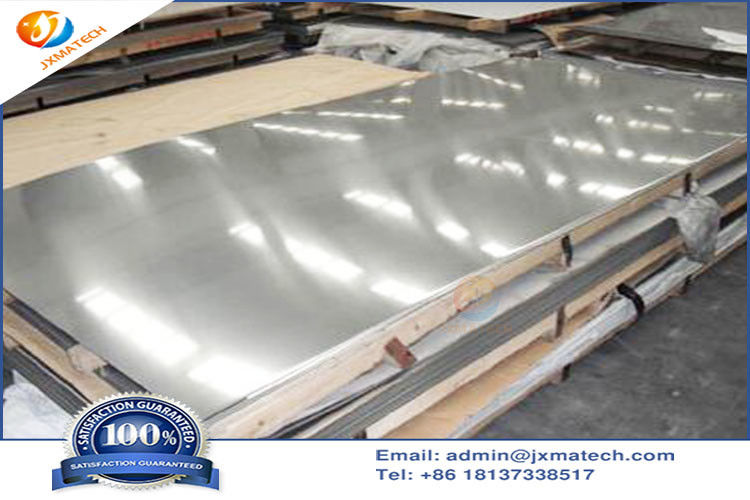

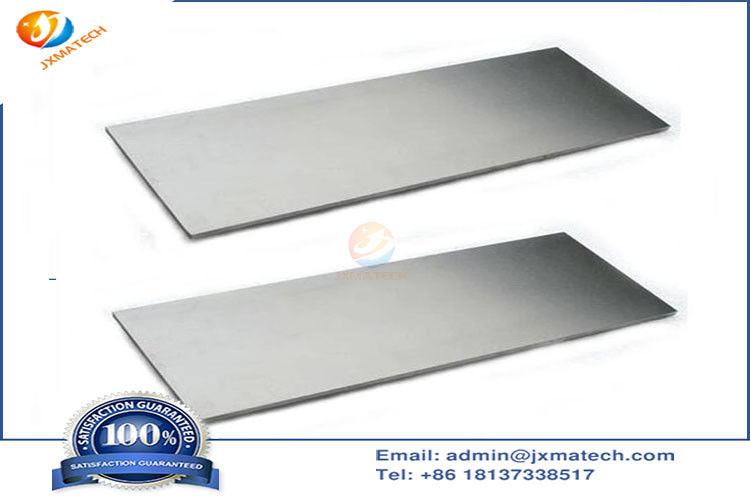

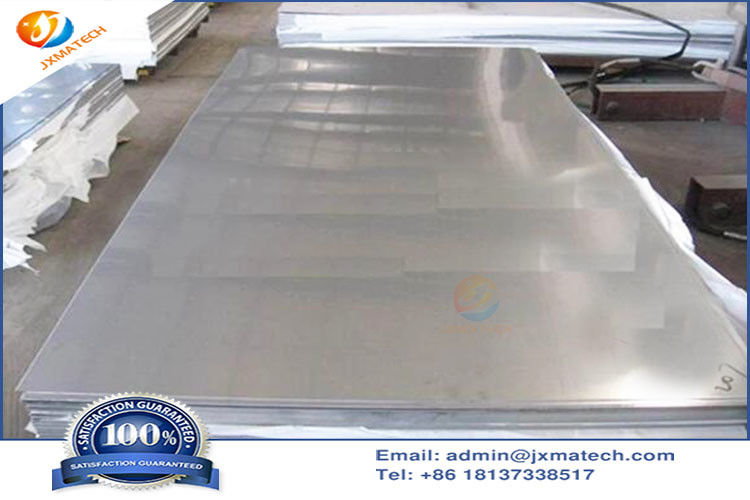

Invar 36 plate Picture;

ASTM F1684 Pickled Polished Invar 36 Nickel Based Alloys 0ASTM F1684 Pickled Polished Invar 36 Nickel Based Alloys 1
