Zr702 Zr704 Zr705 Zirconium Wire For Welding ASTM B550

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium Wire
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Plywood case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Zr 702 , Zr 704 , Zr 705 Standard: ASTM B550
Process: Forge, Drawing Surface: Black, Polished
Density: 6.51g/cm3 Size: Min0.1mm
High Light:

Zr705 Zirconium Wire

,

ASTM B550 Zirconium Wire

,

Welding Zirconium Wire

Product Description

Pure Zirconium Zr702 Zr704 Zr705 Zirconium Wire Zirconium Alloy Wire For Welding



Zirconium wire is made from pure zirconium. This metal is relatively soft and pliable. It is easy to process and is often used as an alloy additive. In addition, it is insensitive to almost all acids and alkalis. Only aqua regia and hydrofluoric acid attack the metal. Zirconium forms a solid oxide layer and is therefore extremely resistant to corrosion

Specifications Of Zirconium Alloy Wire For Welding

Item Name Zirconium Wire
Material ERZr2, ERZr3, ERZr4, high purity zirconium
Size 0.3-6.0mm diameter x L
Specification ASTM B550/550M-07, AWS A5.24
Supplied as in rolls, straight wire, on the spool



The following properties distinguish zirconium winding wire:

· relatively good softness and flexibility;

· good workmanship;

· Resistance to almost all acids and alkalis;

· extreme corrosion resistance;

· excellent high temperature properties;

· sufficient strength.

· Typical Mechanical Properties
(Annealed)

·

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

annealed 379 207 16

Zirconium 704

(UNS R60704)

annealed 413 241 14

Zirconium 705

(UNS R60705)

annealed 552 379

16



Our also provides other zirconium and zirconium alloy products, such as Zirconium rod, Zirconium sheets, Zirconium foil, Zirconium tube, Zirconium flange, Zirconium Pellets, Zirconium Ring, Zirconium Spring, Zirconium plate, Zirconium bar, Zirconium Crucible, Zirconium Flange, Zirconium sputtering targets, Zirconium pipe fittings, other machined and tailor-made zirconium parts, etc.

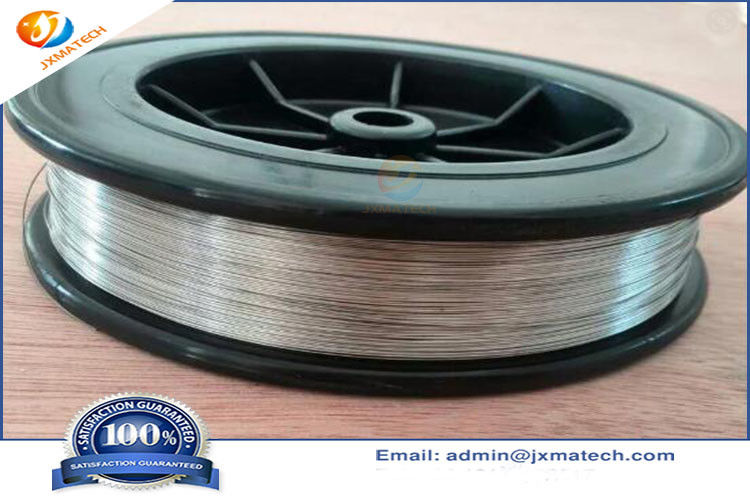

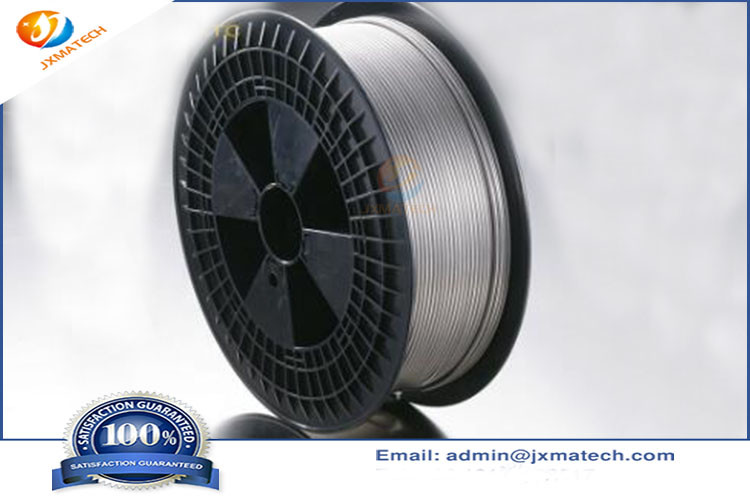

Zirconium Alloy Wire Picture:



Zr702 Zr704 Zr705 Zirconium Wire For Welding ASTM B550 0Zr702 Zr704 Zr705 Zirconium Wire For Welding ASTM B550 1

Zr702 Zr704 Zr705 Zirconium Wire For Welding ASTM B550 2
