Length 2000mm 702 Zirconium Plate For Nuclear High Hardness
Length 2000mm 702 Zirconium Plate For Nuclear High Hardness
Length 2000mm 702 Zirconium Plate For Nuclear High Hardness Length 2000mm 702 Zirconium Plate For Nuclear High Hardness Length 2000mm 702 Zirconium Plate For Nuclear High Hardness Length 2000mm 702 Zirconium Plate For Nuclear High Hardness

Length 2000mm 702 Zirconium Plate For Nuclear High Hardness

Product Details:
Place of Origin: China
Brand Name: JX
Certification: B551
Model Number: 702 705
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs 702 705 zirconium plate
Price: 10-100USD
Packaging Details: Standard package
Delivery Time: 5-30days
Supply Ability: 1t
Contact Now

Detail Information
Material: Zr702, Zr704, Zr705 Thickness: 0.5~50mm
Width: 1000mm Length: 2000mm
High Light:

2000mm 702 Zirconium Plate

,

Nuclear 702 Zirconium Plate

,

Nuclear 702 Zirconium sheet

Product Description

702 Zirconium Plate

702 Zirconium Plate is a solid solution of zirconium or other metals. Zirconium has very low thermal neutron absorption cross section, high hardness, ductility and corrosion resistance. Zirconium alloys are mainly used in the field of nuclear technology, such as fuel rods in nuclear reactors.



702 705 zirconium plate Details



702 705 zirconium plate is a solid solution of zirconium or other metals. Zirconium has very low thermal neutron absorption cross section, high hardness, ductility and corrosion resistance. Zirconium alloys are mainly used in the field of nuclear technology, such as fuel rods in nuclear reactors. Typical compositions of nuclear grade zirconium alloys are more than 95% zirconium and less than 2% tin, niobium, iron, chromium, nickel and other metals, which are added to improve mechanical properties and corrosion resistance.



702 705 zirconium plate must be strictly inspected in the process of producing cladding tube and pressure tube for reactor. Each batch of products, in addition to the routine chemical composition, mechanical properties, dimensional accuracy and corrosion performance inspection, each pipe must pass the non-destructive testing.



Specifications Of 702 705 zirconium plate

Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm>
Length <2000mm>


Composition of our 702 705 zirconium plate

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0> 0.1~0.2% <0> 0.07~0.2% 0.07~0.2%
Cr <0> 0.1~0.2% <0> 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0>
Hf 1~2.5% <4> <4>
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%


Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379 16

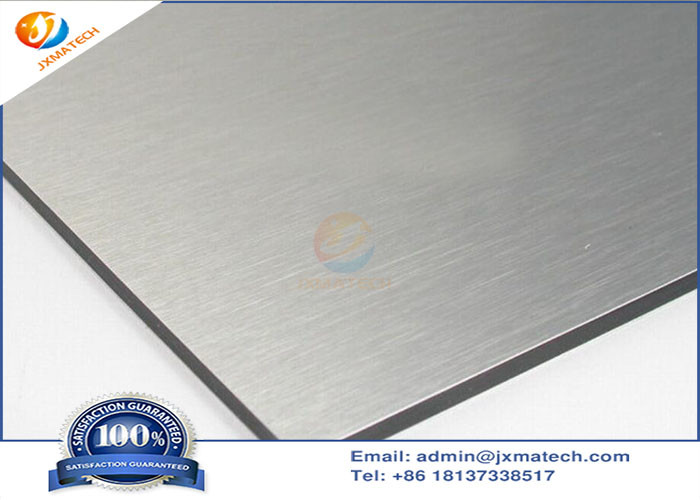

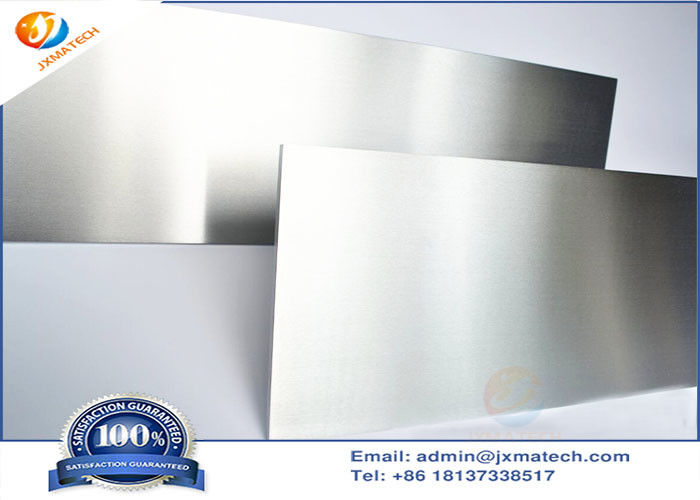

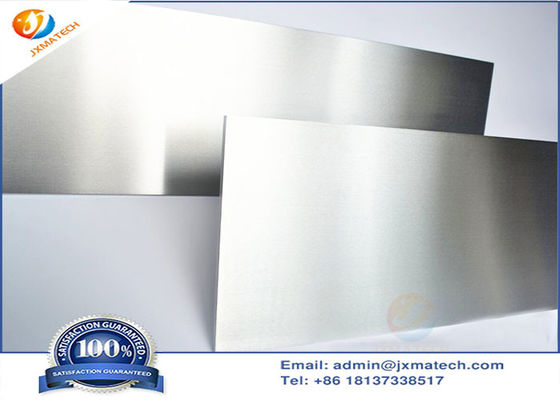

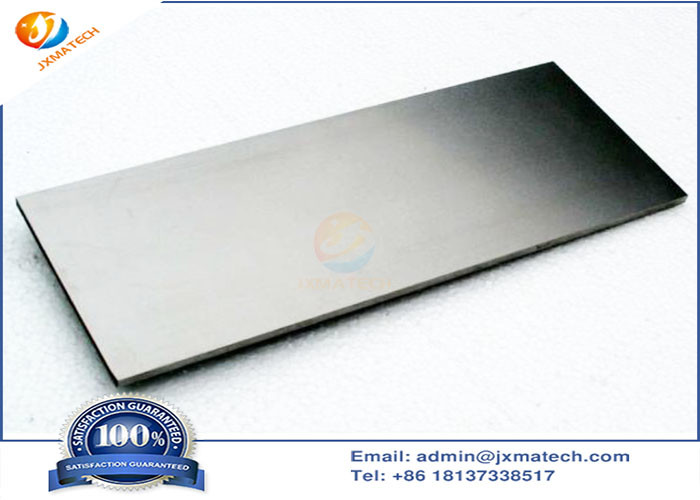

702 Zirconium Plate Picture:

Length 2000mm 702 Zirconium Plate For Nuclear High Hardness 0Length 2000mm 702 Zirconium Plate For Nuclear High Hardness 1
