Customized Zirconium Plate Military Zr702 Zr704 Zr705 Industrial

Product Details:
Place of Origin: China
Brand Name: JX
Certification: B551
Model Number: Customized Zirconium Plates Military Zr702 Zr704 Zr705 industrial
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Price: 10-100USD per
Packaging Details: Standard package
Delivery Time: 5-30days

Detail Information

Material: Zirconium 702 (UNS R60702) State: Annealed
Rm(≥)/MPa: 379 Rp0.2(Pa: 207
Name: Customized Zirconium Plates Military Zr702 Zr704 Zr705 Industrial Surface: Rolling Surface, Pickling Surface
High Light:

Zr702 Military Zirconium Plate


Zr704 Military Zirconium Plate


Zr705 Military Zirconium Plate

Product Description

Customized Zirconium Plates Military Zr702 Zr704 Zr705 industrial

Zirconium Plates Military is widely used in ceramic and refractory fields, mainly in the form of zirconia and zirconia. Only 3% to 4% of zircon ores are processed into metal zirconium (or sponge zirconium), and then further processed into various zirconium materials. Because of the small absorption cross section of thermal neutron, zirconium has excellent nuclear performance. Nuclear zirconium is used as structural materials of nuclear power aircraft carrier, nuclear submarine and civil power reactor, and the cladding of uranium fuel element. Nuclear zirconium is an important strategic metal in the country, and is closely related to the development of nuclear industry.


Name:Zirconium Plates Military Zr702 Zr704 Zr705 industrial

Brand: R60702, r60704, r60705 (Zr702, zr704, zr705)

Purity: Zr + HF ≥ 99.6%

Specification: [rolling] t0.5 -- 40 × W(100~1000) × L

State: annealed state (m) hot working state (R) cold working state (y) (annealed, ultrasonic flaw detection)

Process: hot forging, hot rolling, cold rolling, annealing, pickling

Surface: rolling surface, pickling surface

Executive standard: ASTM b550 / b550m-07

Packing: wooden case or according to customer's requirement.

Transportation: Express

Our company has passed ISO9001:2008 product quality certification.


Properties of Zirconium Plates


Mechanical properties of Zirconium Sheet / Plate (under two different rolling processes)
Rolling technology Direction Rm/MPa Rp0.2/MPa A (%)
Forge once T 455 390 27
L 465 275 30
L-T difference 10 115 3
Forge twice T 450 275 31
L 450 280 32
L-T difference 0 5 1
ASTM B551 L >=380 >=205 >=165


Available sizes of our zirconium plates

Zirconium Plates Specification


Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm, or 36"
Length <2000mm, or 72"



Zirconium Plate Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

annealed 379 207 16

Zirconium 704

(UNS R60704)

annealed 413 241 14

Zirconium 705

(UNS R60705)

annealed 552 379

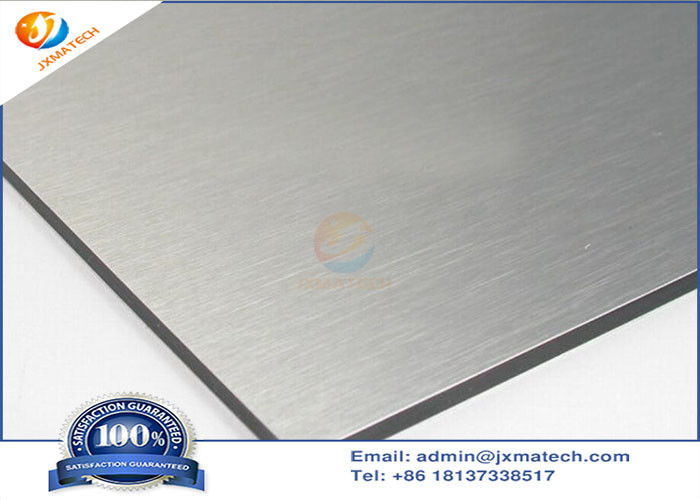

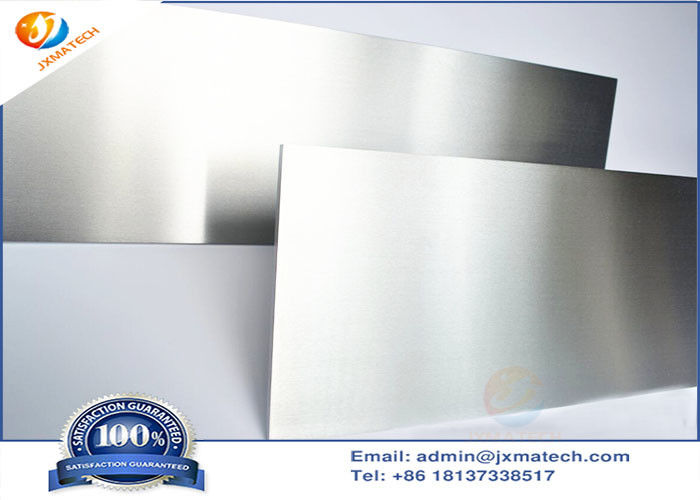

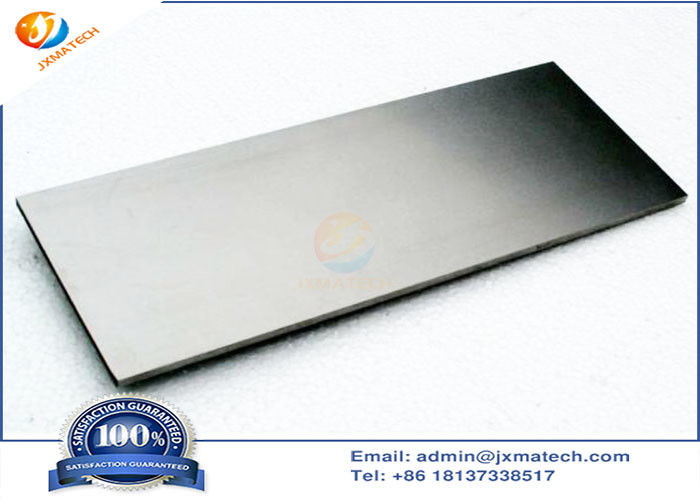

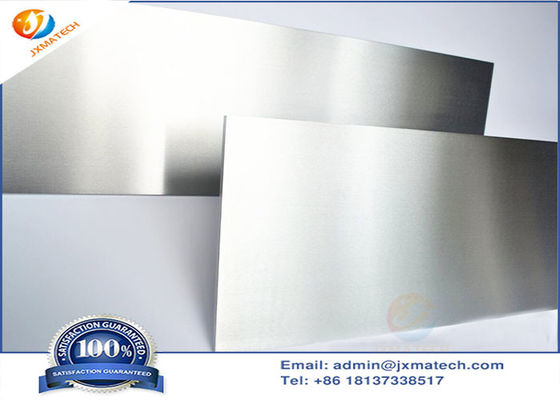

Zirconium Plates Picture:

Customized Zirconium Plate Military Zr702 Zr704 Zr705 Industrial 0Customized Zirconium Plate Military Zr702 Zr704 Zr705 Industrial 1

Zirconium Materials Compositions

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0.05% 0.1~0.2% <0.05% 0.07~0.2% 0.07~0.2%
Cr <0.05% 0.1~0.2% <0.01% 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0.007%
Hf 1~2.5% <4.5% <4.5% <200ppm for Nuclear industry <200ppm for Nuclear industry
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%



Zirconium Plate Packaging

Our Zirconium Plates are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
