ASTMB551 Zr702 Zirconium Plate And Foil For Nuclear Reactors

Product Details:
Place of Origin: China
Brand Name: jx
Certification: ASTMB551
Model Number: Zirconium plates and Foil
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 10-100USD/kg
Packaging Details: plywood cases
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 10ton month

Detail Information

Material: Zirconium Plates And Foil Size: As Per Request
Standard: ASTM Origin: China
High Light:

B551 Zr702 Zirconium Plate


Nuclear Reactors Zirconium Plate


B551 Zr702 Zirconium sheet

Product Description

Zirconium Plates and Foil


Zirconium Plates and Foil is a lustrous grey-white metal. Thanks to its ductility and malleability, it can be machined in a variety of ways, to create a wide range of zirconium parts and fittings. These parts are suitable for use in many different industries and they’re available to buy here, at XINXIANG FANMETAL TECH CO., LTD

As part of our metal fabrication services, we currently manufacture and supply:


Zirconium bars
Zirconium crucibles
Zirconium plates
Zirconium rods
Zirconium sheets


Specifications Of Zirconium Plates and Foil

Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm>
Length <2000mm>

Composition of our Zirconium materials

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0> 0.1~0.2% <0> 0.07~0.2% 0.07~0.2%
Cr <0> 0.1~0.2% <0> 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0>
Hf 1~2.5% <4> <4>
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%

Zirconium Plates and Foil For Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

annealed 379 207 16

Zirconium 704

(UNS R60704)

annealed 413 241 14

Zirconium 705

(UNS R60705)

annealed 552 379 16

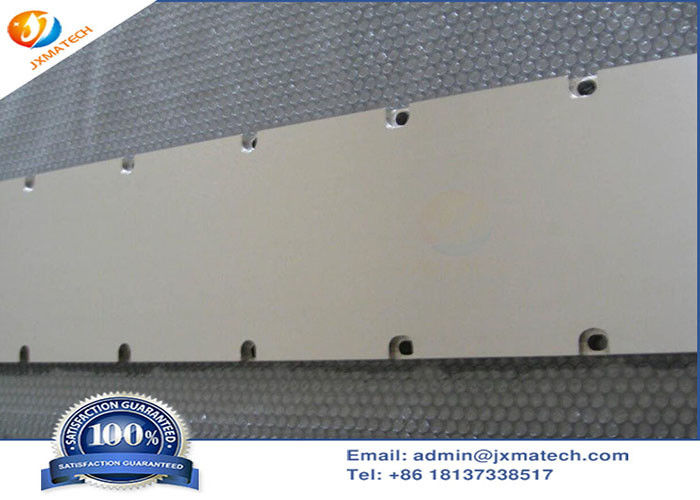

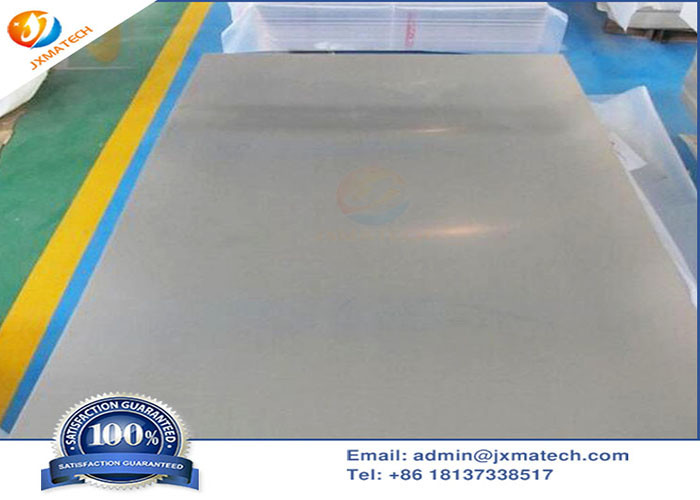

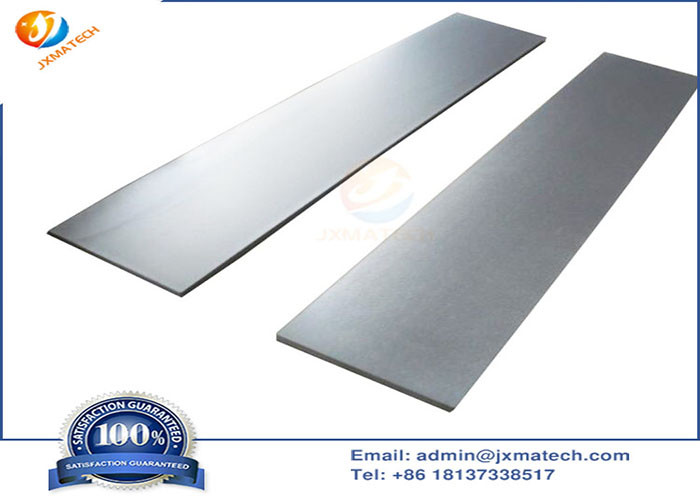

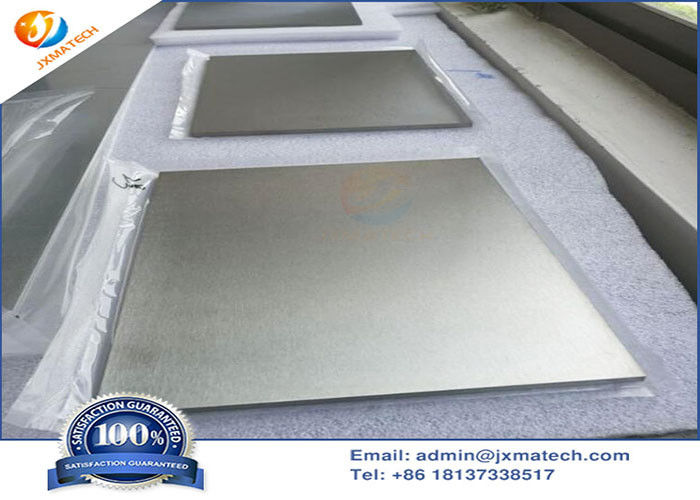

Zirconium Plates and Foil Picture:

ASTMB551 Zr702 Zirconium Plate And Foil For Nuclear Reactors 0ASTMB551 Zr702 Zirconium Plate And Foil For Nuclear Reactors 1


All of these metal products can be bought in standard sizes or made bespoke to order – to suit your exact specification. No job is too big or too small. Simply give us a call to discuss your requirements, tell us about your intended application, and we’ll create zirconium parts that are perfect for you.

What can zirconium parts be used for?
Due to their useful properties (e.g. high melting point, corrosion-resistance etc.), zirconium parts and fittings can be used in a variety of different ways. They’re most commonly employed within the chemistry industry and in nuclear reactors – to create cladding or an outer layer for fuel rods.

Zirconium can also be used as an alloying agent. Parts and fittings are often employed to make high-temperature aerospace parts and, thanks to their low toxicity, they’re commonly used for biomedical applications – such as the creation of dental implants and crowns and hip/knee replacements.

Why chooseXINXIANG FANMETAL for zirconium parts?
Here at XINXIANG FANMETAL , we have an excellent reputation for the quality of our fabricated products. All zirconium parts and fittings are made in-house by our experts. We make sure they comply with strict standards and, before they leave our site, they undergo an intense quality-assurance assessment.

Your satisfaction, as our customer, is of paramount importance. Zirconium parts can be made to fit your exact needs and, whether you’d like just one zirconium crucible or a batch-load of zirconium rods – we’re here to help. We’ll do everything in our power to make sure you’re happy with the service provided.
