Product Details:
Place of Origin: China
Brand Name: jx
Certification: ASTMB551
Model Number: Zirconium Sheet and Plate 705702
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 10-100USD/kg
Packaging Details: plywood cases
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 10ton month
Contact Now

Detail Information
High Light:

2" Zirconium Plate

,

705 Zirconium Plate

,

0.02" Zirconium 702 Plate

Product Description

Zirconium Sheet and Plate 705702



Zirconium Sheet and Plate 705702 has outstanding nuclear energy properties and is an indispensable material for the development of the nuclear energy industry. my country’s large nuclear power plants generally use zirconium materials. If nuclear power is used for power generation, every million kilowatts of power generation capacity will consume 20-25 per year. Tons of zirconium metal. A 30,000 horsepower; nuclear submarine uses zirconium and zirconium alloys as nuclear fuel jackets and pressure tubes, and the use of zirconium reaches 20 to 30 tons. Zirconium is a rare metal with amazing corrosion resistance, extremely high melting point, ultra-high hardness and strength, etc. It is widely used in the fields of aerospace, military industry, nuclear reaction, and atomic energy. The corrosion-resistant and high-resistant titanium products used on "Shenzhou VI" are far less corrosion-resistant than zirconium. Its melting point is about 1600 degrees, while the melting point of zirconium is above 1800 degrees, and the melting point of zirconium dioxide is as high as 2700. Therefore, as an aerospace material, zirconium has much better performance in all aspects than titanium.



Zirconium is a rare metal with amazing corrosion resistance, extremely high melting point, ultra-high hardness and strength, etc. It is widely used in the fields of aerospace, military industry, nuclear reaction, and atomic energy. The corrosion-resistant and high-temperature-resistant titanium products used on the "Shen VI" are far less corrosion-resistant than zirconium. Its melting point is about 1600 degrees, while the melting point of zirconium is above 1800 degrees, and the melting point of zirconium dioxide is even higher. As high as 2700 degrees or more, zirconium, as an aerospace material, has much better performance than titanium in all aspects. It is also used to make flashlights for photography, as well as corrosion-resistant containers and pipes, especially resistant to hydrochloric acid and sulfuric acid. Zirconium chemicals can be used as crosslinking agents for polymers.

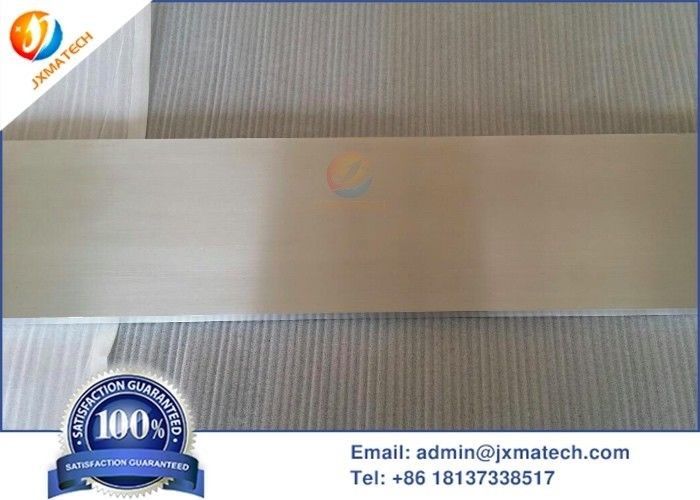

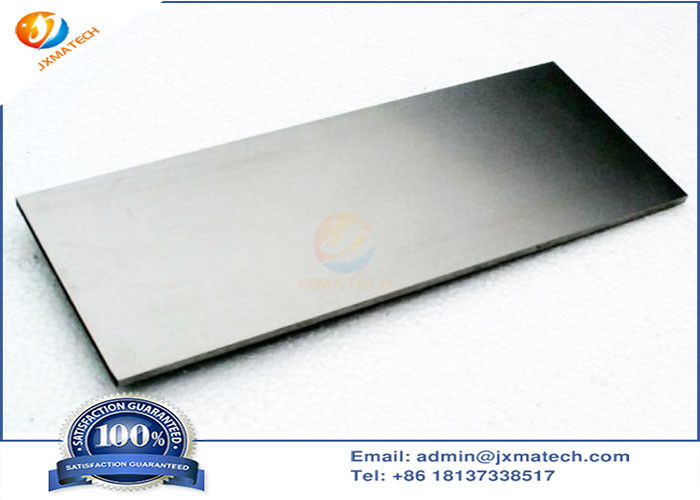

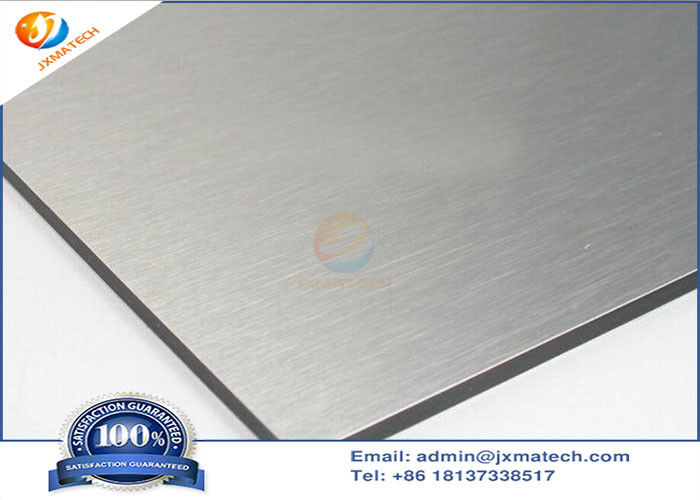

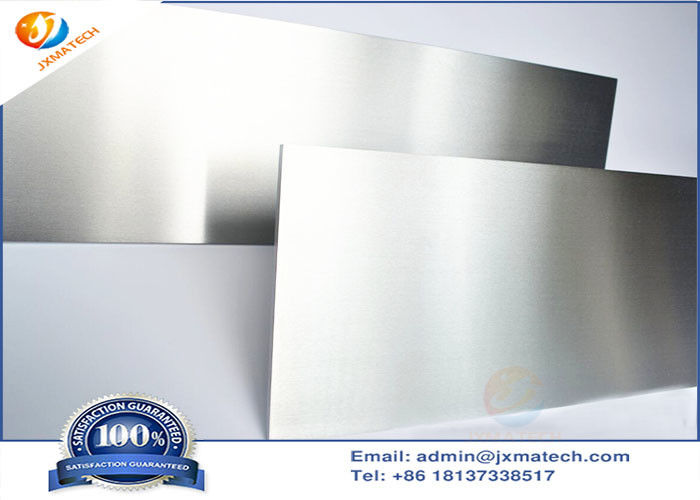

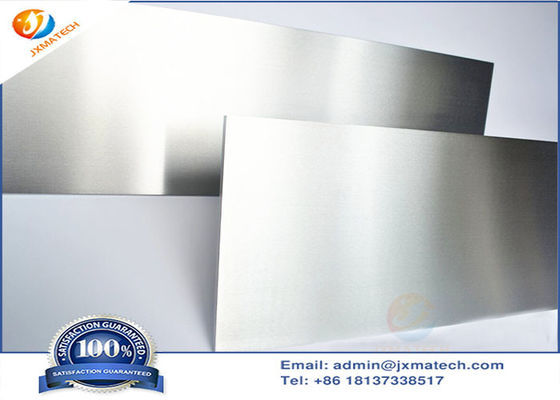

Zirconium Sheet and Plate 705702 Picture:

Thickness 0.02"~2" Zirconium Plate And Sheet 705 702 Material 0Thickness 0.02"~2" Zirconium Plate And Sheet 705 702 Material 1



Specifications Of Zirconium Plate

Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm>
Length <2000mm>


Composition of our Zirconium materials

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0> 0.1~0.2% <0> 0.07~0.2% 0.07~0.2%
Cr <0> 0.1~0.2% <0> 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0>
Hf 1~2.5% <4> <4>
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%


Zirconium Sheet and Plate 705702 Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379 16
