High Purity Zirconium Disc Zr702 Target
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Fanmetal |
| Certification: | ASTMB551 |
| Model Number: | High Purity 702 Zirconium Foil Sheet Plate Hot Rolled Zirconium metal plate used in Smelting |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | 10-100USD/kg |
| Packaging Details: | plywood cases |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10ton month |
|
Detail Information |
|||
| Material: | High Purity 702 Zirconium Foil Sheet Plate Hot Rolled Zirconium Metal Plate Used In Smelting | Size: | As Per Request |
|---|---|---|---|
| Surface: | Polished | MOQ: | As Per Request |
| Highlight: | 99.9% Zirconium 702 Plate,Hot Rolled Zirconium 702 Plate,Smelting Zirconium 702 Plate |
||
Product Description
High Purity 702 Zirconium Foil Sheet Plate Hot Rolled Zirconium metal plate used in Smelting
| Material | Zr702, Zr704, Zr705 |
| Application | Nuclear power Industry, Medical, Primarily acetic and hydrochloric acids |
| Standard | ASTM B551 |
| Certification | ISO 9001:2008 |
| OEM | Accept |
| Capacity | 10k per day |
| Length | <2000mm, or 72" |
| Width | <1000mm, or 36" |
| Thickness | 0.5~50mm, or 0.02"~2" |
| Surface treatment | Polishing |
Zirconium Foil Sheet Plate Application:
Heat exchanger, condenser, chlor-alkali and other chemical equipment, Marine, seawater desalination, power plant equipment industry.
Testing and quality system
1.ISO 9001:2008
2. Mechanical performance test.
3. Inspect destructive and non-destructive tests to ensure materials meet industry and customer requirements
Chemical composition
| Element composition(%) | |||||||||
| Grade | Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | Nb | O |
| Zr1 | 99.9 | 0.03 | 0.012 | 0.001 | 0.003 | 0.005 | 0.01 | -- | 0.03 |
| R60702 | 99.2 | 4.5 | 0.20 | -- | 0.005 | 0.025 | 0.05 | -- | 0.16 |
| R60703 | 98 | 4.5 | -- | -- | 0.005 | 0.025 | -- | -- | -- |
| R60704 | 97.5 | 4.5 | 0.20~0.40 | 1.0~2.0 | 0.005 | 0.025 | 0.05 | -- | 0.18 |
| R60705 | 95.5 | 4.5 | 0.2 | -- | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.18 |
| R60706 | 95.5 | 4.5 | 0.2 | -- | 0.005 | 0.025 | 0.05 | 2.0~3.0 | 0.1 |

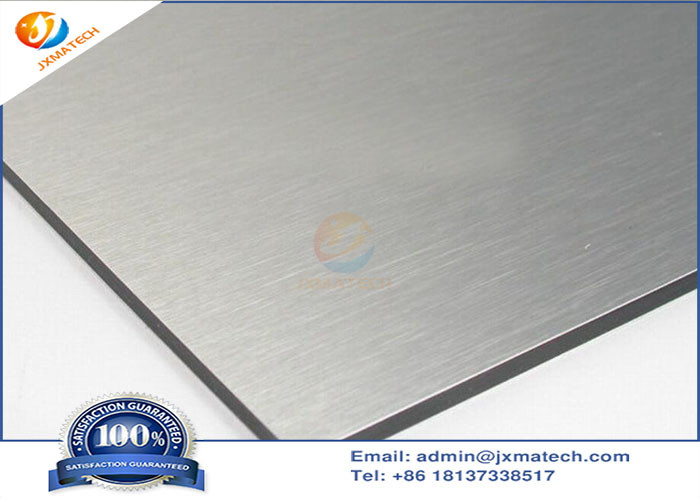

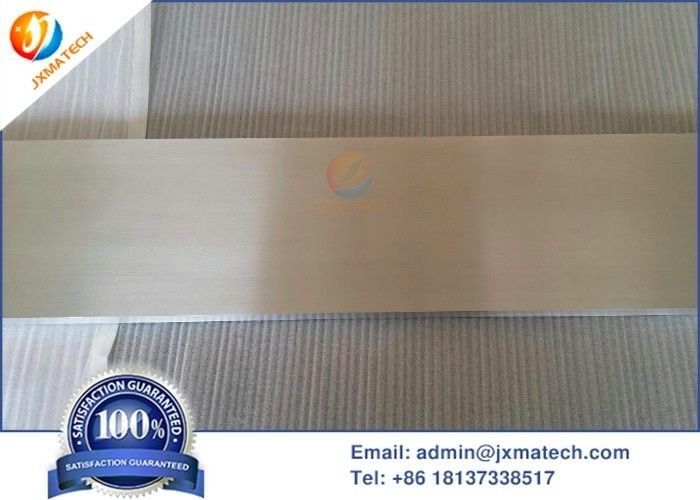

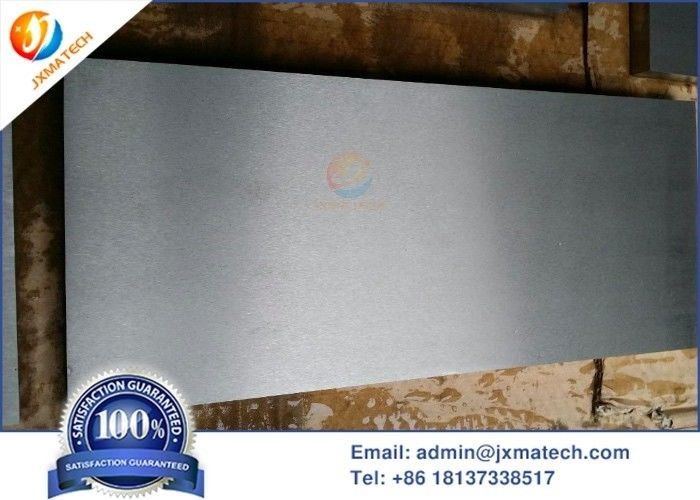

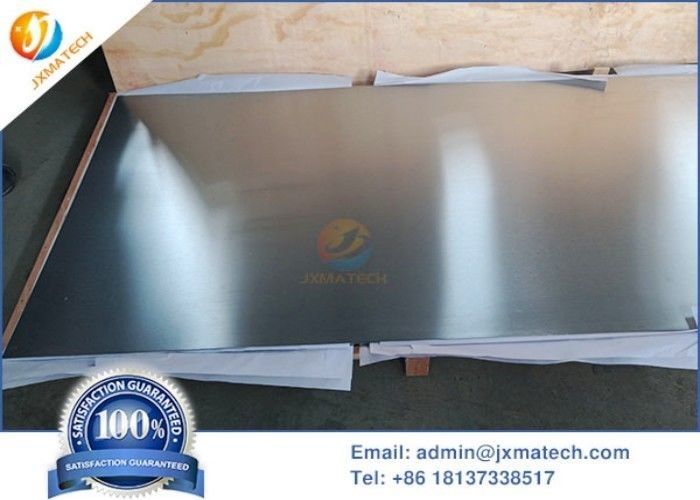

Zirconium Foil Sheet Plate Picture:
