Forged Titanium Aluminum TiAl Target High Thermal Conductivity

Product Details:
Place of Origin: China
Brand Name: jx
Certification: ISO
Model Number: TiAl Titanium Aluminum (TiAl) Targets
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 10-100USD/kg
Packaging Details: Standard exporting package
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 10ton month

Detail Information

Purity: Al-Ti (35/65at%), Al/Ti (50:50 At%) Shape: Discs, Plate, Step
Certification: ISO 9001:2008 Specification: Customized As Request
Process: HIP Name: Titanium Aluminum (TiAl) Targets
High Light:

Titanium Aluminum TiAl Target


Forged TiAl Target


HIP TiAl Target

Product Description

Titanium Aluminum (TiAl) Targets

Titanium aluminum (TiAl) targets and cathodes allow drills, milling machines, indexable cutting inserts and other tools to be protected by a strong anti-oxidation nitride coating (TiAlN).


High feed rate, excellent cutting performance, high metal removal rate: this is not a problem for titanium-aluminum-based coatings. You only need to use one thousandth of a millimeter of our materials to effectively protect your tools from wear and tear, thereby prolonging their service life. Titanium aluminum targets and cathodes are also used as decorative coatings on electronic products such as mobile phones, spectacle frames or high-end watch dials.

The material is sprayed using reactive magnetron sputtering or arc evaporation, and a layer of solid nitride is formed on the substrate by nitrogen.

The Titanium Aluminum (TiAl) Targets is widely used because it has the following advantages:

High ductility
High thermal conductivity
Uniform microstructure
Very high material purity
Regardless of the shape-rotating or planar arc cathodes, or planar sputtering targets: we provide customized targets that fully meet your application requirements.

High ductility and long service life
During the coating process, the sputtering target and arc cathode must withstand many severe application conditions. The material at the edge of the target must withstand a force of up to 1 ton. Brittle materials will break under such a large force of gravity. However, after adding aluminum, our material is particularly ductile. In order to ensure the ductility of the titanium aluminum target, we use the molding process to mix the titanium aluminum powder very carefully before the material is compacted, so that the aluminum distribution must be extremely uniform. Compared with the material processed by the melting process, the microstructure of the material is much more uniform, and the grain size is finer. The advantage of the powder metallurgy production process is that we can produce targets with superior fracture resistance and long service life.

Low temperature metal, smooth coating
During the coating process, even if exposed to high temperature, our target and cathode will not be affected. The aluminum content and the high density of the material give our cathodes and targets extremely high thermal conductivity, which can easily transfer heat to the copper plate behind them. If heat accumulates, the target material will migrate unevenly and droplets will form on the surface of the tool coating. Our targets can be kept at low temperatures to ensure smoother coatings.

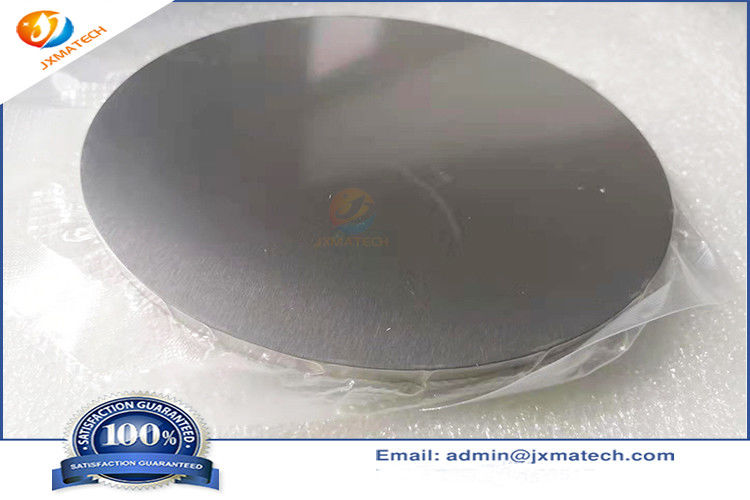

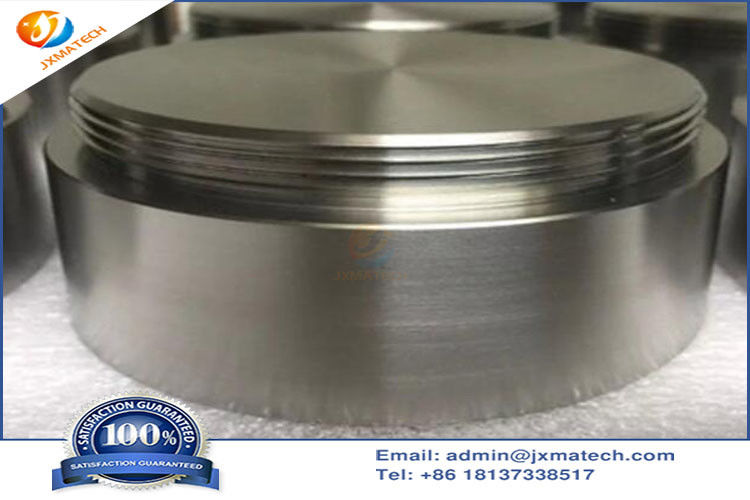

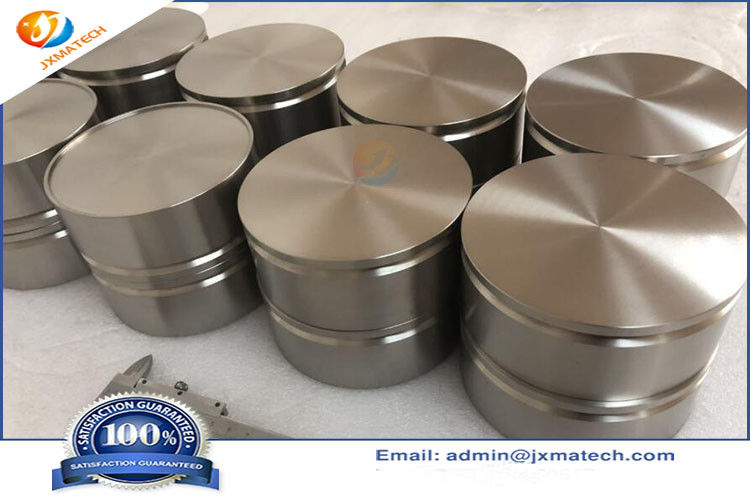

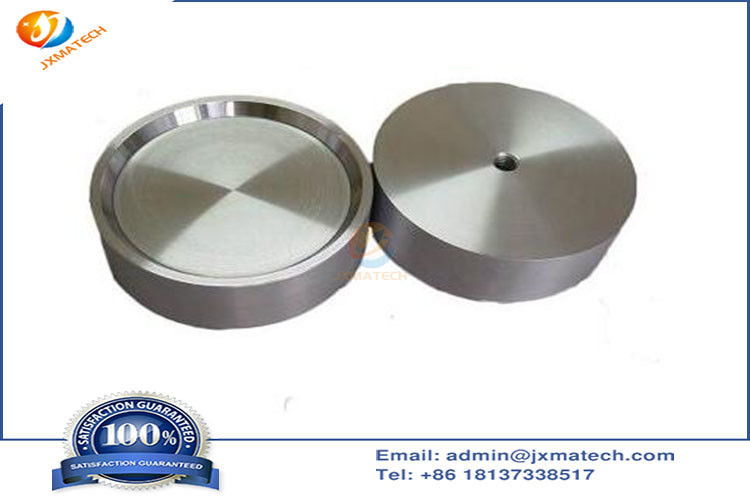

Titanium Aluminum (TiAl) Targets Picture:

Forged Titanium Aluminum TiAl Target High Thermal Conductivity 0Forged Titanium Aluminum TiAl Target High Thermal Conductivity 1Forged Titanium Aluminum TiAl Target High Thermal Conductivity 2


Titanium Aluminum (TiAl) Targets Description


Purity Al-Ti (35/65at%), Al/Ti (50:50 at%),AlTi 97/3wt%, AiTi 95/5wt%, AlTi 90/10wt%
Shape Discs, Plate, Step (Dia ≤300mm, Thickness ≥1mm)
Rectangle, Sheet, Step (Length ≤1000mm, Width ≤300mm, Thickness ≥1mm)
Tube( Diameter< 300mm, Thickness >2mm
Certification ISO 9001:2008
Specification Customized as request
Process Forged , Rolling , Grinding

1. Electroplating;

2. Chemical engineering & Petrochemical technology;

3. Medical

Density/Orgin country 4.51g/cm3 /Henan province
