PVD Titanium Alloy Sputtering Target
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JX |
| Certification: | ISO |
| Model Number: | Titanium Aluminum Target |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | USD50-100 |
| Packaging Details: | Standard packing |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2ton |
|
Detail Information |
|||
| Name: | Titanium Aluminum Target | Shape: | Rod |
|---|---|---|---|
| Available Size: | 20-250 | Certificates: | ISO |
| Technics: | Vacuum Melting | ||
| Highlight: | 60/40 Titanium Aluminum Target,50/50 Titanium Aluminum Target,Titanium Aluminum Target for Coatings |
||
Product Description
Titanium Aluminum target 75:25, 50:50, 60:40
Detailed Product Description
Product Name: Titanium Aluminum target 75:25 at%
Titanium Aluminum 75:25 at%
TiAl targets are produced in a meltmetallurgical process.
Application
TiAl targets are used for wear resistant coatings, e.g. cutting tools.
Purity
Metallic purity ≥ 99.8%
Composition ratio
75:25 at%
Form of Delivery
Sputtering targets, arc cathodes, round targets up to ? 220 mm in one segment, rectangular targets up to a length of 1100 mm and a width of 200 mm in one segment.
Chemical Analysis in wt%
Fe <0.07
C <0.03
O <0.15
N <0.03
H <0.01
Tolerance of Al and Ti +/- 1 wt%
Physical Properties
Melting point: 1620°C
Density supplied: ≥ 4.18 g/cm3
| Name | Titanium Aluminum Alloy Sputtering Targets TIAL target |
| Shape | Square /round, according to your request |
| Available size |
Round: dia 25~250mm Rectangular: length up to 1500mm Customization is available |
| Proportion(wt%) | 5-80 ± 0.2Ti at your request. |
| Impurity content | low |
| Certificates | ISO9001:2008, the third test report |
| Technics | Vacuum melting |
| Application |
widely used in coating processing industries a: architectural glass, car using glass, graphic display field. b:electronic and semiconductor field. c:decoration and mould field. |
| Advantage |
High Hard texture Low impurity content Better heat dissipation High Tensile strength |
Hot Tags: tial round tial titanium-alunium target used in functional films, China, manufacturers, suppliers, factory, company, wholesale, products

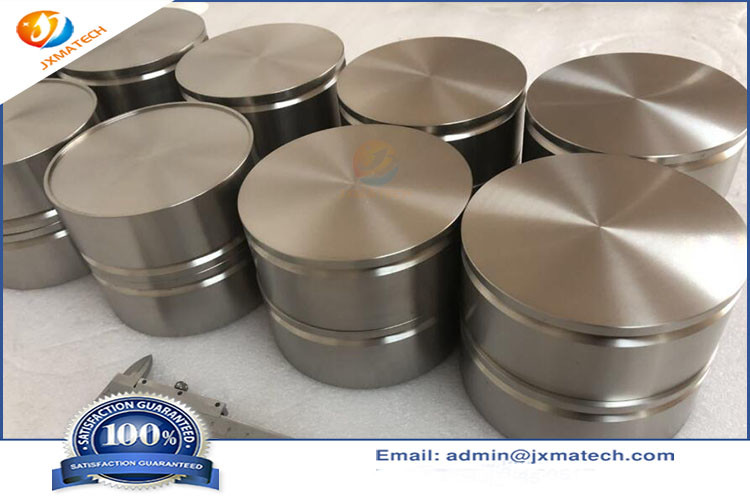

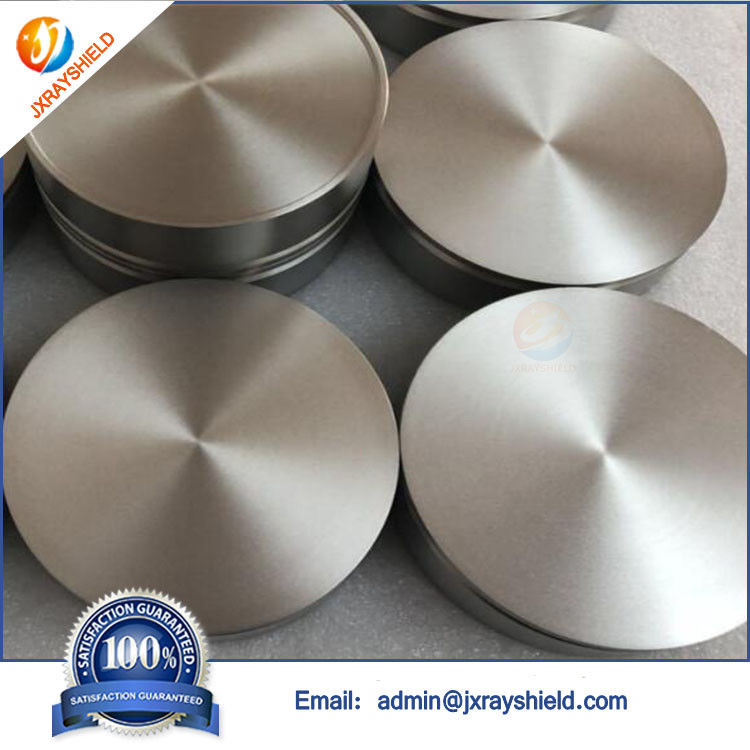

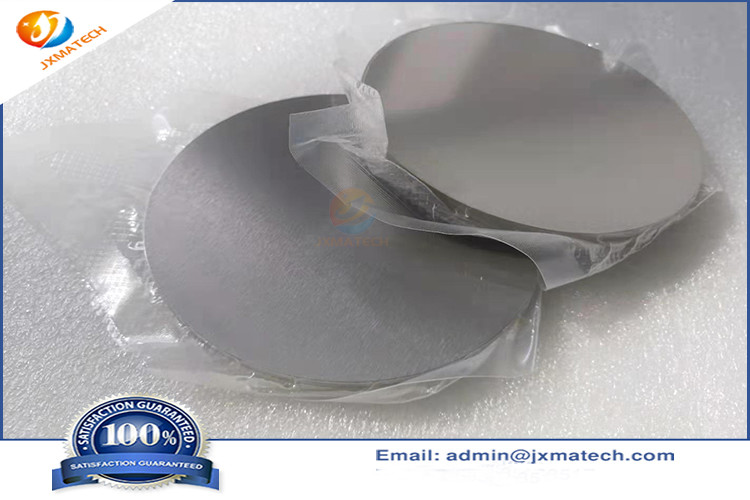

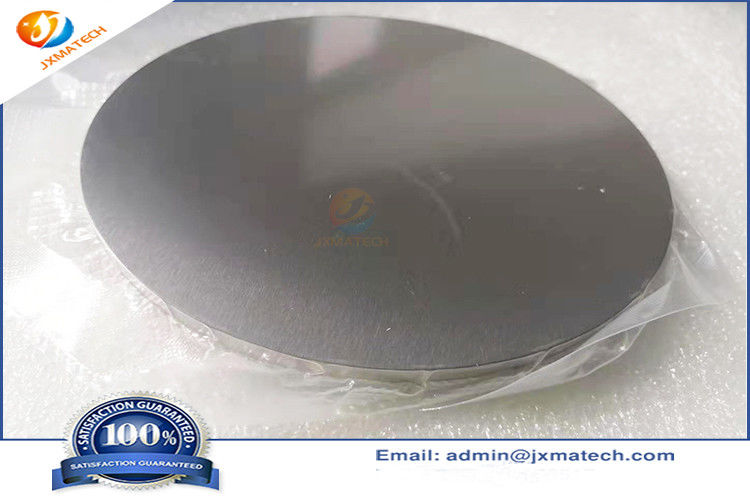

Titanium Aluminum Target Picture:
| Titanium Aluminum Alloy target/Ti-Al target Ti: Al 33:67% | |||||||||
| Ti | Al | Fe | Si | Mg | Cl | C | Mn | O | N |
| 46.30 | 53.20 | 0.075 | 0.066 | 0.030 | 0.013 | 0.016 | 0.008 | 0.095 | 0.003 |
