High Pure Implantation Ion Parts Tungsten In Semiconductor Industry

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: W1 - Implantation Ion Parts Tungsten
Payment & Shipping Terms:
Minimum Order Quantity: 20 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Implantation Ion Parts Tungsten Grade: W1
Density: 19.1 G/cc Purity: >99.95%
Tensile Strength: >175 MPa Elongation: <15%
Standard: ASTM B760-1 Application: Semiconductor
High Light:

Implantation Ion Parts Tungsten


High Pure Implantation Ion Parts


Semiconductor Industry ion implanter parts

Product Description

High Pure Implantation Ion Parts Tungsten In Semiconductor Industry

Implantation Ion Parts Tungsten are a new generation of high technology for material surface treatment. It uses a series of physical and chemical

changes caused by the ion beam of a metal element with high energy into solid materials to improve some surface properties of solid




Material Type Chemical Composition (by wt.)
Pure Tungsten W1 >99.95%min. Mo
Tungsten Copper Alloy WCu 10%~50% Cu / 50%~90% W
Tungten Heavy Alloy WNiFe 1.5 % - 10 % Ni, Fe, Mo
Tungten Heavy Alloy WNiCu 5 % - 9.8 % Ni, Cu
Tungsten Rhenium WRe 5,0 % Re
Moly Tungsten MoW50 0,0 % W







Advantages of Implantation Ion Parts Tungsten technology:

(1) It is a pure pollution-free surface treatment technology;

(2) It does not need thermal activation and high temperature environment, so it will not change the overall dimension and surface finish

of the workpiece;

(3) Ion implantation layer is a new surface layer formed by a series of physical and chemical interactions between ion beam and substrate

surface, and there is no peeling problem between it and substrate;

(4) There is no need for machining and heat treatment after ion implantation.

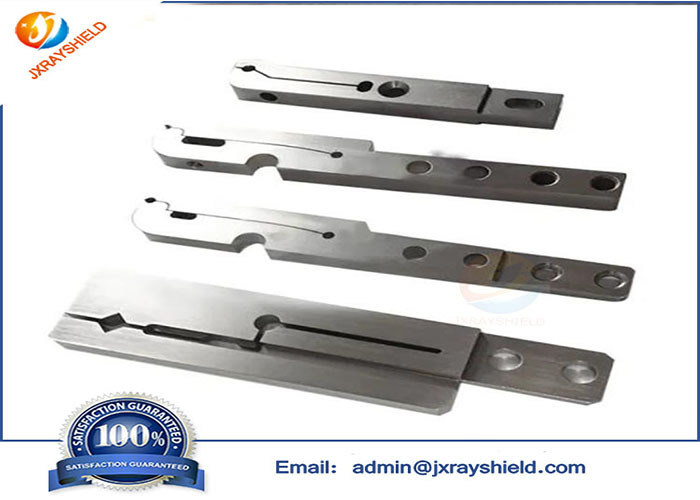

Implantation Ion Parts Tungsten Picture:

High Pure Implantation Ion Parts Tungsten In Semiconductor Industry 0High Pure Implantation Ion Parts Tungsten In Semiconductor Industry 1


APPLICATIONS Of Implantation Ion Parts Tungsten


The superiority, practicability and broad market prospect of this surface treatment technology have been appreciated by more and more

departments and units and have been widely used. According to years of research and development, metal ion implantation is especially

suitable for the surface treatment of the following types of tools, dies and parts:


  • Medical orthopedic repair parts (such as titanium alloy artificial joints) and surgical instruments have very good economic and social


  • The precision nozzle for extruding synthetic fiber and optical fiber can greatly improve its abrasion resistance and service life;
  • Precision molds in semiconductor industry, stamping and stamping molds in can industry can significantly improve the working life of these valuable and precision molds.
