ASTM B551 R60702 Zirconium Plate / Sheet Annealed

Product Details:
Place of Origin: China
Brand Name: ASTM B551 R60702 Zirconium Price Zirconium Plate / Sheet
Certification: ASTM B550
Model Number: ZR0900
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: USD
Packaging Details: Stadnard exported package
Delivery Time: 10-30days

Detail Information

Material: Zr702, Zr704, Zr705 Thickness: 0.5~50mm, Or 0.02"~2"
Width: <1000mm, Or 36" Length: <2000mm, Or 72"
State: Annealed Name: ASTM B551 R60702 Zirconium Price Zirconium Plate / Sheet
High Light:

R60702 Zirconium Plate


ASTM B551 Zirconium Plate


50mm Zirconium Sheet

Product Description

ASTM B551 R60702 Zirconium Price Zirconium Plate / Sheet

Product Name: Zirconium Plate / Sheet

Material: Zr, Zr0, Zr2, R60702, R60704 , R60705, R60706
Standard: ASTM B523, ASTM B768
Size: Plate Thickness ≥ 1.5mm, width ≤ 1200mm, length ≤ 6000mm
Technique: Forged Hot rolling machine Cold rolling machine Pickling Polish
Status: Hot rolled, Cold rolled, Annealed

Zirconium Plate / Sheet Introduction:

Feature: It has amazing corrosion resistance, extremely high melting point, ultra-high hardness, strength and outstanding nuclear performance.
Application: Zirconium can be used in chemical industry, pesticide industry, printing and dyeing industry to manufacture corrosion-resistant reaction tower, pump, heat exchanger, valve, agitator, nozzle, conduit and container lining.

Zirconium alloy has good corrosion resistance, moderate mechanical properties and low atomic thermal neutron absorption cross section (Zirconium is 0.18 target) in high temperature and high pressure water and steam at 300-400 °C. It has good compatibility with nuclear fuel. It can be used as a core structural material for water-cooled nuclear reactors (fuel cladding, pressure pipes, supports and tunnel pipes), which is the main use of zirconium alloys. Zirconium has excellent corrosion resistance to various acids (such as hydrochloric acid, nitric acid, sulfuric acid, and acetic acid), alkalis, and salts, so zirconium alloys are also used to make corrosion resistant parts and pharmaceutical devices. Zirconium has a strong affinity with gases such as oxygen and nitrogen,

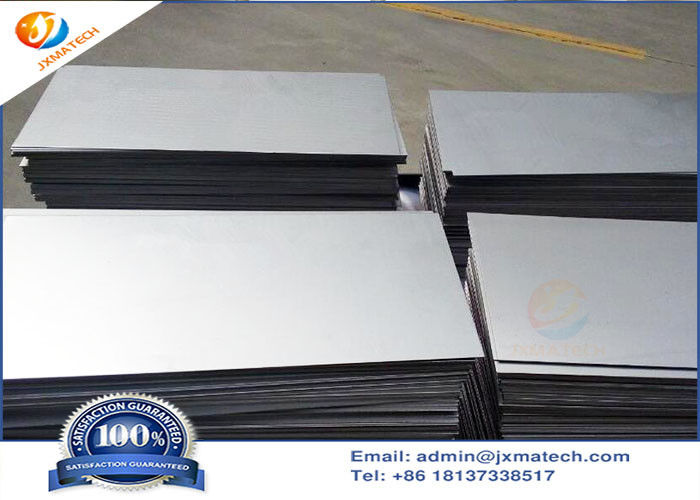

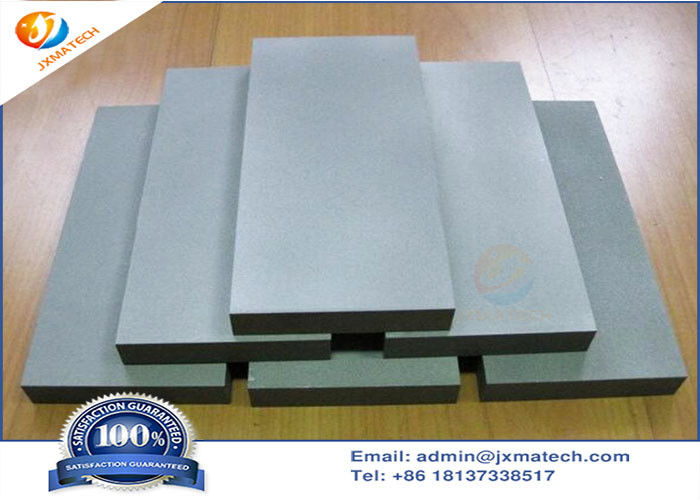

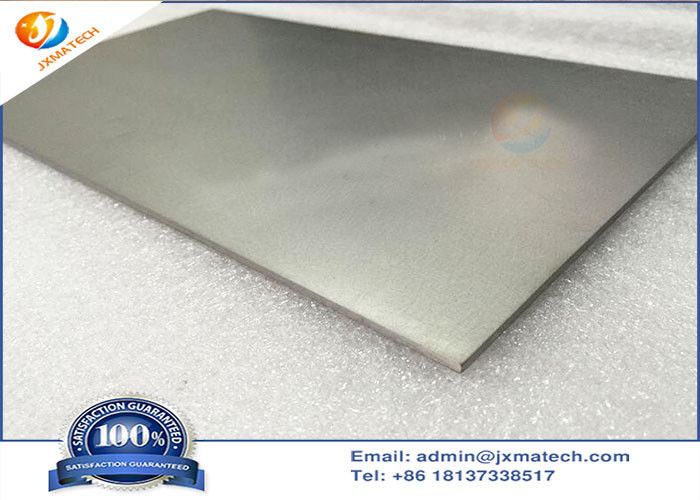

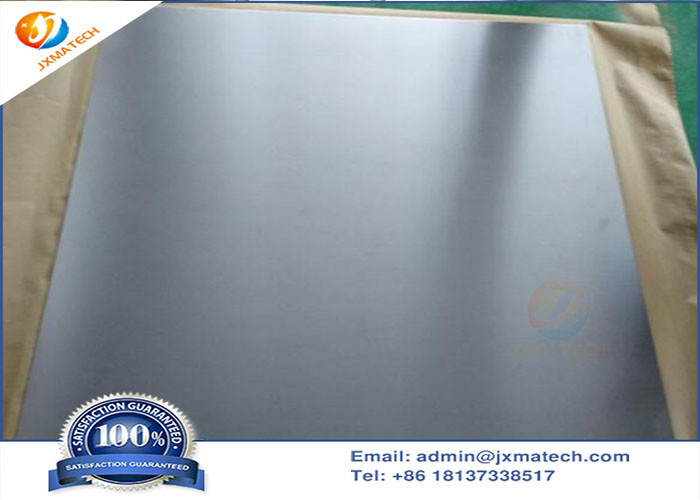

Zirconium Plate / Sheet Picture:


ASTM B551 R60702 Zirconium Plate / Sheet Annealed 0ASTM B551 R60702 Zirconium Plate / Sheet Annealed 1



Chemical composition for Zirconium Plate / Sheet

Grade Zr+Hf Hf Fe+Cr Sn H N C O Nb
R60702 99.2% <4.5% <0.20% - <0.005% <0.015% <0.030% <0.15% -
R60704 97.5% <4.5% 0.2-0.4% 1.0-2.0% <0.005% <0.015% <0.030% <0.16% -
R60705 95.5% <4.5% <0.2% - <0.005% <0.015% <0.050% <0.16% 2.0-3.0%

Mechanical Properties of Zirconium Plate / Sheet

ASTM B551 Tensile Strength Yield Strength Elongation Bend Test
Grade ksi MPa ksi MPa min. % *T
R60700 ≤55 ≤380 ≤44 ≤305 20 5T
R60702 ≥55 ≥380 ≥30 ≥205 16 5T
R60704 ≥60 ≥415 ≥35 ≥240 14 5T
R60705 ≥80 ≥550 ≥55 ≥380 16 3T
R60706 ≥74 ≥510 ≥50 ≥345 14 2.5T
